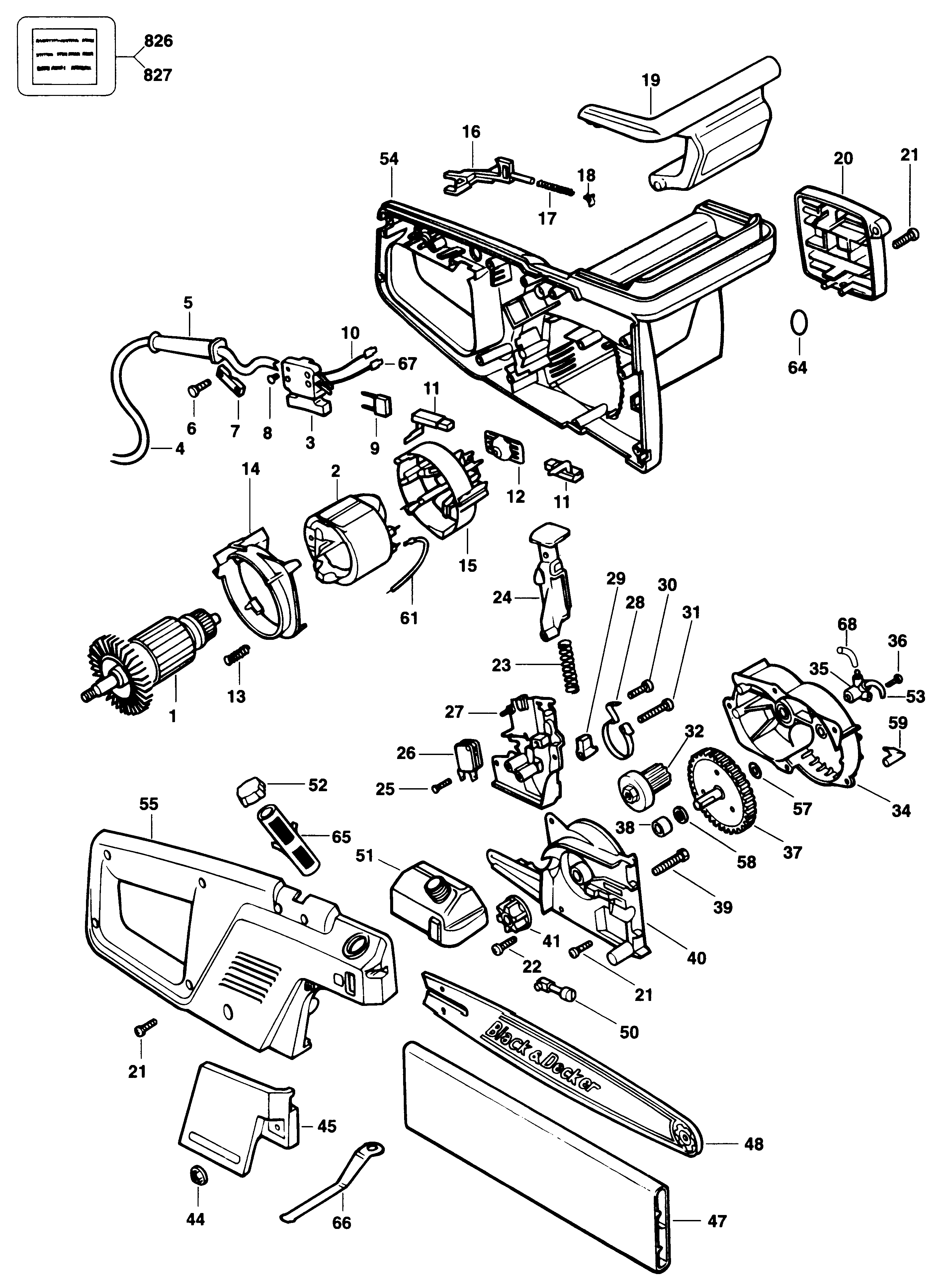

D35KS CHAINSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 368817-01 | 1 | ARMATURE 240V | GB |  |
||
| 2 | 369052-02 | 1 | FIELD | 240 volt | GB | |
|
| 3 | 323631-00 | 1 | SWITCH | GB | |
||
| 4 | 330048-52 | 1 | CORDSET (SPLASH) | GB | |
||
| 5 | 859013 | 1 | PROTECTOR | GB | |
||
| 6 | 954567 | 2 | SCREW | GB | |
||
| 7 | 302002 | 1 | CABLE CLAMP | GB | |
||
| 8 | 734892 | 4 | SCREW | GB | |
||
| 9 | 321384 | 1 | CAPACITOR | GB |  |
||
| 10 | 323779-03 | 1 | LEAD 360MM | GB | |
||
| 11 | 370983-02 | 2 | BRUSH & HOLDER 230V | GB | |
||
| 12 | 853685 | 1 | HEATSINK SA | GB | |
||
| 13 | 853710 | 2 | SPRING | GB | |
||
| 14 | 853711 | 1 | SUPPORT | GB | |
||
| 15 | 323855-00 | 1 | SUPPORT | GB | |
||
| 16 | 842564 | 1 | BUTTON RELEASE | GB | |
||
| 17 | 736928 | 1 | SPRING | GB | |
||
| 18 | 325701-00 | 1 | CLIP | GB | |
||
| 19 | 736735 | 1 | LEVER | GB | |
||
| 20 | 323462-04 | 1 | END CAP | GB | |
||
| 21 | 954567 | 9 | SCREW | GB | |
||
| 22 | 954183 | 2 | SCREW | GB | |
||
| 23 | 842771 | 1 | SPRING | GB | |
||
| 24 | 842912-01 | 1 | LEVER | GB | |
||
| 25 | 809986-00 | 1 | SCREW | GB | |
||
| 26 | 323341-02 | 1 | SWITCH | GB | |
||
| 27 | 325718-00 | 1 | PLATE SA | GB | |
||
| 28 | 842565 | 1 | BAND BRAKE | GB | |
||
| 29 | 840774 | 1 | INSERT | GB | |
||
| 30 | 893444 | 2 | SCREW | GB | |
||
| 31 | 750950 | 1 | SCREW | GB | |
||
| 32 | 325381-00 | 1 | GEAR SA | GB | |
||
| 34 | 323657-01 | 1 | HOUSING BEARING | GB | |
||
| 35 | 323546-00 | 1 | PUMP | GB | |
||
| 36 | 870702 | 2 | SCREW | GB | |
||
| 37 | 323449-01 | 1 | GEAR | GB | |
||
| 38 | 330004-06 | 1 | BEARING NEEDLE | GB | |
||
| 40 | 323957-00 | 1 | CASTING SA | GB | |
||
| 41 | N542284 | 1 | SPROCKET | GB | |
||
| 41 | N542284 | 1 | SPROCKET | GB | |
||
| 44 | 885628 | 1 | NUT | GB | |
||
| 45 | 853736-02 | 1 | COVER | GB | |
||
| 46 | 325194-00 | 1 | SPANNER | GB | |
||
| 47 | 376587-02 | 1 | SHEATH | GK440-GK40-D40KS | GB | |
|
| 47 | 376587-02 | 1 | SHEATH | GK435-GK35-GK1200 | GB | |
|
| 47 | 376587-02 | 1 | SHEATH | D35KS | GB | |
|
| 47 | 376587-03 | 1 | SHEATH | GK310P | GB | |
|
| 47 | 376587-03 | 1 | SHEATH | GK425 | GB | |
|
| 47 | 376587-03 | 1 | SHEATH | GK430-GK30-GK42-GK43 | GB | |
|
| 47 | 376587-03 | 1 | SHEATH | GK1300K | GB | |
|
| 48 | 369090-09 | 1 | BAR CHAIN 35CM | GK435-GK35-GK1200 | GB | |
|
| 48 | 369090-09 | 1 | BAR CHAIN 35CM | D35KS | GB | |
|
| 48 | 369090-10 | 1 | BAR CHAIN 40CM | GK440-GK40-D40KS | GB | |
|
| 48 | 369090-08 | 1 | BAR CHAIN 30CM | GK310P | GB | |
|
| 48 | 369090-08 | 1 | BAR CHAIN 30CM | GK430-GK30-GK42-GK43 | GB | |
|
| 48 | 369090-08 | 1 | BAR CHAIN 30CM | GK1300K | GB | |
|
| 48 | 585595-00 | 1 | SERVICE KIT | GK425 | GB | |
|
| 50 | 843666-49 | 1 | ADJUSTER SA | GB | |
||
| 51 | 323458-01 | 1 | RESERVOIR SA | GB | |
||
| 52 | 853697 | 1 | CAP | GB | |
||
| 53 | 323644-00 | 1 | HOSE | GB | |
||
| 54 | 325258-00 | 1 | HOUSING | GB | |
||
| 55 | 325259-00 | 1 | COVER | GB | |
||
| 57 | 323830-00 | 2 | WASHER | GB | |
||
| 58 | 323753-06 | 1 | WASHER | GB | |
||
| 59 | 323459-00 | 1 | OILER | GB | |
||
| 64 | 323857-01 | 1 | PLATE | GB | |
||
| 65 | 323871-00 | 1 | FILTER | GB | |
||
| 67 | 323779-01 | 1 | LEAD 150MM | GB | |
||
| 68 | 323644-01 | 1 | HOSE | GB | |
||
| 70 | 844840 | 1 | COUPLER (SPLASH) | GB | |
||
| 826 | 323713-00 | 1 | LABEL | GB | |
||
| 827 | 323392-03 | 1 | WARNING LABEL | GB | |
