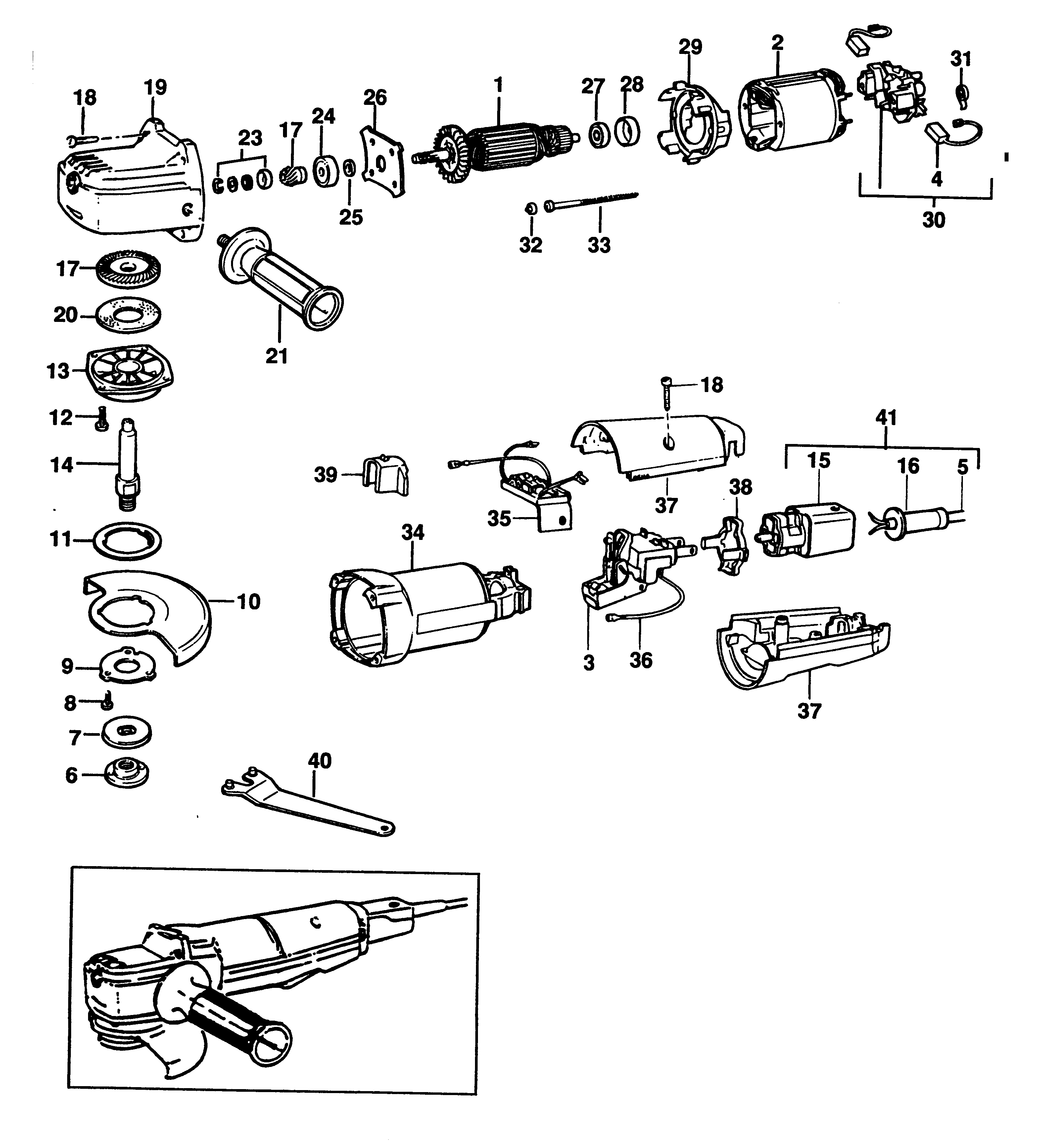

PL82 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 373244-07 | 1 | MOTOR SA | GB |  |
||
| 2 | 949847-07 | 1 | FIELD | GB | |
||
| 2 | 6010027-17 | 1 | CARRIAGE | GB | |
||
| 3 | 949822-03 | 1 | SWITCH | GB | |
||
| 3 | 6010027-18 | 1 | BASE | BOTTOM PART OF ACC. | GB | ||
| 4 | 930151-00 | 2 | BRUSH 220V | GB |  |
||
| 4 | 373443-00 | 2 | CLAMSHELL | GB | |
||
| 5 | 949770-06 | 1 | CABLE & PLUG | GB | |
||
| 5 | 088207057 | 1 | RUBBER STRIP 20X1500 | GB | |
||
| 6 | 403430-00 | 1 | OUTER FLANGE | GB | |
||
| 6 | 142121900 | 1 | CAPACITOR | GB | |
||
| 7 | 930771-00 | 1 | INNER FLANGE | GB | |
||
| 7 | 375532-00 | 1 | BRAND LABEL | GB | |
||
| 8 | 930251-00 | 3 | SCREW | GB | |
||
| 8 | 370374-19 | 1 | RATING PLATE | GB | |
||
| 9 | 324438-55 | 1 | CORDSET (EURO) | GB | |||
| 10 | 937412 | 1 | GUARD | GB | |
||
| 10 | 6010092-14 | 1 | BODY | CHOPPER BODY TOP | GB | |
|
| 11 | 938272 | 1 | RING | GB | |
||
| 11 | N385062 | 1 | WARNING LABEL | SPANISH | GB | ||
| 12 | 930770-00 | 4 | SCREW | GB | |
||
| 12 | 393746-00 | 1 | BAFFLE | GB | |
||
| 13 | 944055 | 1 | GEARCASE COVER SA | GB | |
||
| 13 | N028249 | 13 | KITBOX | GB | |
||
| 14 | 946414-00 | 1 | SPINDLE | GB | |
||
| 14 | 582622-03 | 4 | SERVICE KIT 115V | GB | |||
| 15 | 945899-01 | 1 | PLUG | GB | |||
| 15 | 6010092-15 | 6 | BOWL | CHOPPER BODY BOTTOM | GB | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 16 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 17 | 946550-00 | 1 | GEAR SA | GB | |
||
| 17 | 6010092-36 | 1 | BLADE HOLDER | GB | |
||
| 18 | 930079-01 | 6 | SCREW | GB | |
||
| 18 | 579836-00 | 1 | ARMATURE 230V | GB | |||
| 19 | 946131-00 | 1 | GEARCASE SA | GB | |
||
| 19 | 373329-01 | 1 | ARMATURE | GB | |
||
| 20 | 946418-00 | 1 | FELT | GB | |
||
| 21 | 586589-00L | 1 | CHUCK KEYLESS | GB | |
||
| 22 | N044664 | 1 | RATING PLATE | GB | |
||
| 23 | 937668 | 1 | CIRCLIP SA | GB | |
||
| 23 | 945586-00 | 4 | LENS | GB | |
||
| 24 | 577745-00 | 1 | BEARING | GB | |
||
| 24 | 743679 | 1 | REST | GB | |
||
| 25 | 930753-00 | 1 | WASHER | GB | |
||
| 25 | 1003405-00 | 7 | CORDSET | GB | |||
| 27 | 330003-34 | 1 | BEARING | GB | |
||
| 27 | 324402-00 | 3 | SPRING | UPTO DC 9648 | GB | |
|
| 27 | 560000-00 | 3 | CORDSET | FROM DC 9649 | GB | ||
| 28 | 930029-00 | 1 | HOLDER BEARING | GB | |
||
| 28 | 369600-01 | 1 | INSTRUCTION MANUAL | GB | |||
| 29 | 946134-00 | 1 | BAFFLE | GB | |
||
| 29 | 368830-01 | 1 | BRAND LABEL | GB | |
||
| 30 | 949860-12 | 1 | BRUSH HOLDER SA | GB | |
||
| 30 | 373499 | 1 | TUBE | GB | |
||
| 31 | 930090-00 | 2 | BRUSH SPRING | GB | |
||
| 32 | 933657-00 | 2 | CAP | GB | |
||
| 33 | 930077-00 | 2 | SCREW | GB | |
||
| 34 | 930811-03 | 1 | FIELDCASE | GB | |
||
| 34 | 373307 | 1 | INSTRUCTION MANUAL | GB | |
||
| 35 | 946751-01 | 1 | ELECTRONIC SA | GB | |
||
| 35 | 373335-01 | 1 | PIN | GB | |
||
| 36 | 930728-00 | 1 | LEAD | GB | |
||
| 37 | 930836-01 | 1 | HANDLE SA | GB | |
||
| 38 | 930761 | 1 | RING | GB | |
||
| 39 | 939246 | 1 | CAP | GB | |
||
| 40 | 947830-06 | 1 | WRENCH SPECIAL | GB | |
||
| 40 | 569062-00 | 1 | BLADE METAL | Shredding disc thin | GB | |
|
| 41 | 569061-00 | 1 | BLADE METAL | Cheese Grater | GB | |
|
| 42 | 569047-00 | 1 | BOWL | Juicer | GB | |
|
| 43 | 248417-00 | 1 | BRAND LABEL | GB | |
||
| 44 | 744185 | 1 | COVER | GB | |
||
| 45 | 569060-00 | 1 | PROTECTOR | Blade Protector | GB | |
|
| 48 | 324155-00 | 2 | GEAR | GB | |
||
| 50 | 809612 | 1 | INSERT | GB | |
||
| 52 | 373147-01 | 3 | LABEL | GB | |
||
| 53 | 375609-00 | 1 | BRAND LABEL | GB | |
||
| 54 | 844269 | 1 | SWITCH | GB | |
||
| 62 | 584421-00 | 1 | RAM | GB | |
||
| 800 | 6010081-32 | 1 | MOTOR 230V | GB | |
||
| 801 | 5100458-05 | 1 | TOOL BRUSH | GB | |
||
| 828 | 744205 | 1 | SPACER | GB | |
||
| 866 | 498824-00 | 1 | PAD | THIN | GB | |
