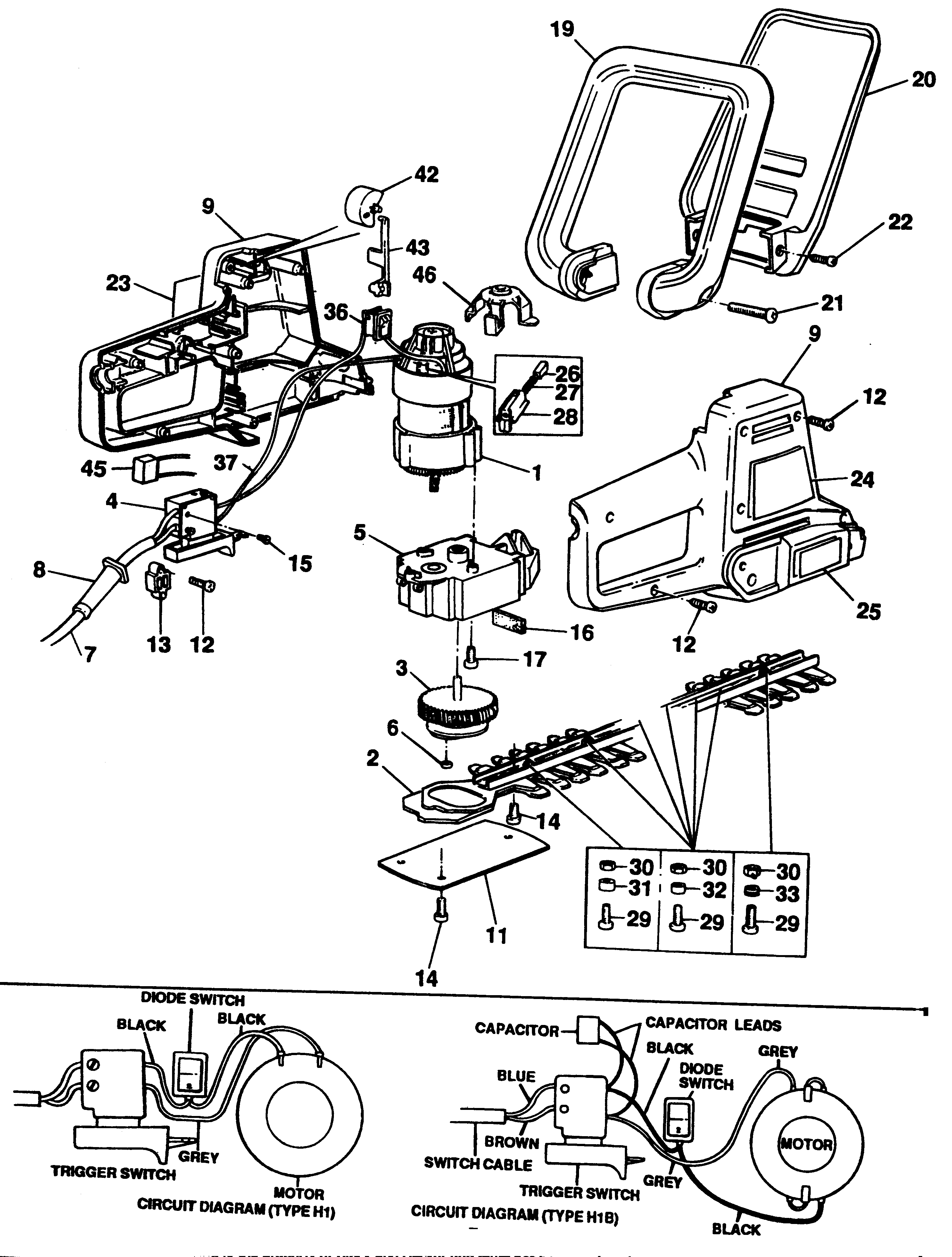

GT242 HEDGECLIPPER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 376926-08 | 1 | MOTOR SA | H1 | XJ |  |
|
| 2 | 795995-49 | 1 | BLADE & GEAR SA | BLADE H1E-G PRE 1996 | XJ | |
|
| 2 | 809201-02 | 1 | ACTUATOR | XJ | |
||
| 4 | 795782 | 1 | SWITCH | XJ | |
||
| 4 | N072923 | 2 | GUARD COVER | OEM | XJ |  |
|
| 5 | 371794-49 | 1 | REPAIR KIT | XJ | |
||
| 5 | 624548-00SV | 2 | CONTROL MODULE | XJ | |||
| 6 | 832472 | 1 | ROLLER | BLADE H1-D | XJ | |
|
| 6 | 450213-00 | 1 | TERMINAL | XJ | |
||
| 7 | 330048-53 | 1 | CORDSET (SPLASH) | XJ | |
||
| 7 | N359999 | 1 | SWITCH ASSEMBLY | w/Weld terminals | XJ | ||
| 8 | 770235 | 1 | PROTECTOR | XJ | |
||
| 8 | 395058-00 | 1 | DEFLECTOR | XJ | |
||
| 9 | 745778 | 1 | CLAMSHELL | XJ | |
||
| 10 | 330003-16 | 1 | BEARING | XJ | |
||
| 11 | 370099 | 1 | COVER | BUILT FROM 1996 | XJ | |
|
| 11 | 371794-49 | 1 | REPAIR KIT | BLADE H1E-G PRE 1996 | XJ | |
|
| 11 | 9532087H | 1 | CORD PROTECTOR | XJ | |||
| 12 | 849256 | 9 | SCREW | XJ | |
||
| 12 | 33874-00 | 4 | SCREW | XJ | |||
| 13 | 994808 | 1 | CABLE CLAMP | XJ | |
||
| 13 | 330065-07 | 4 | SCREW | XJ | |
||
| 14 | 747507 | 5 | SCREW | BUILT BEFORE 1996 | XJ | |
|
| 14 | 809015 | 5 | SCREW | BUILT FROM 1996 | XJ | |
|
| 14 | N411027 | 7 | LEAD ASSY. | WHITE (125MM) | XJ | ||
| 15 | 990735 | 2 | SCREW | XJ | |
||
| 15 | N399977 | 1 | RECIP. SHAFT ASSY. | XJ | |||
| 16 | 849718 | 1 | PAD | XJ | |
||
| 17 | 849256 | 3 | SCREW | XJ | |
||
| 17 | 98091-10 | 2 | SCREW | XJ | |
||
| 18 | 844840 | 1 | COUPLER (SPLASH) | XJ | |
||
| 18 | 147440-00 | 1 | BLADE | XJ | |||
| 19 | 829591 | 1 | HANDLE | XJ | |
||
| 20 | 829718 | 1 | GUARD | XJ | |
||
| 21 | 745217 | 2 | SCREW | XJ | |
||
| 21 | 6010358-02 | 1 | HOUSING LH | XJ | |||
| 22 | 623997-00 | 1 | SLIDER | XJ | |
||
| 23 | 746189 | 1 | BRAND LABEL | XJ | |||
| 23 | 150050-01 | 1 | FIELD | XJ | |
||
| 24 | 746166 | 1 | WARNING LABEL | XJ | |
||
| 25 | 569081-00 | 2 | AUTO STOP LABEL | XJ | |
||
| 26 | 372523 | 2 | BRUSH | H1B | XJ | |
|
| 26 | 376143 | 2 | BRUSH | H1 | XJ | |
|
| 26 | 639886-00 | 1 | O RING | XJ | |
||
| 27 | 847709 | 2 | SPRING | XJ | |
||
| 28 | 812738 | 2 | BRUSH HOLDER | H1 | XJ | |
|
| 28 | 846076 | 2 | BRUSHBOX | H1B | XJ | |
|
| 29 | 829808 | 7 | SCREW | XJ | |
||
| 29 | 386588-00 | 1 | LABEL | XJ | |
||
| 30 | 892153 | 7 | NUT | XJ | |
||
| 31 | 829074 | 1 | SPACER | XJ | |
||
| 31 | AT35-26 | 1 | JOINT | XJ | |
||
| 32 | 829075 | 5 | SPACER | XJ | |
||
| 33 | 829809 | 1 | SPACER | XJ | |
||
| 34 | 626004-01 | 1 | LEAD SA WHITE | WHITE, 165MM | XJ | |
|
| 35 | 135089-00 | 1 | WASHER | XJ | |
||
| 36 | 748922 | 1 | SWITCH & DIODE | H1B | XJ | ||
| 36 | 829854 | 1 | SWITCH & DIODE | H1 | XJ | ||
| 36 | 629580-00 | 2 | NUT | XJ | |
||
| 37 | 811502 | 1 | LEAD SWITCH SA | H1B | XJ | |
|
| 37 | 811676 | 1 | LEAD | H1 | XJ | |
|
| 37 | 402054-03 | 1 | END CAP | XJ | |
||
| 38 | 74997-00 | 3 | SCREW | XJ | |
||
| 42 | 747639 | 1 | KNOB | XJ | |
||
| 42 | 608354-00 | 1 | DUST BAG | PARTS NOT SHOWN | XJ | ||
| 43 | 829852 | 1 | SLIDER | XJ | |
||
| 43 | 152251-02 | 1 | PACK,BATTERY | PARTS NOT SHOWN | XJ | ||
| 44 | N022764 | 1 | BALL STEEL | PARTS NOT SHOWN | XJ | |
|
| 45 | 807285-08 | 1 | CAPACITOR | H1B | XJ | |
|
| 45 | 000380-00 | 1 | SCREW | PARTS NOT SHOWN | XJ | ||
| 46 | 748687 | 1 | GUARD | H1B | XJ | |
|
| 46 | 151429-00SV | 1 | DUST BAG SA | PARTS NOT SHOWN | XJ | |
|
| 47 | 612001-01 | 2 | LOCATOR | PARTS NOT SHOWN | XJ |
