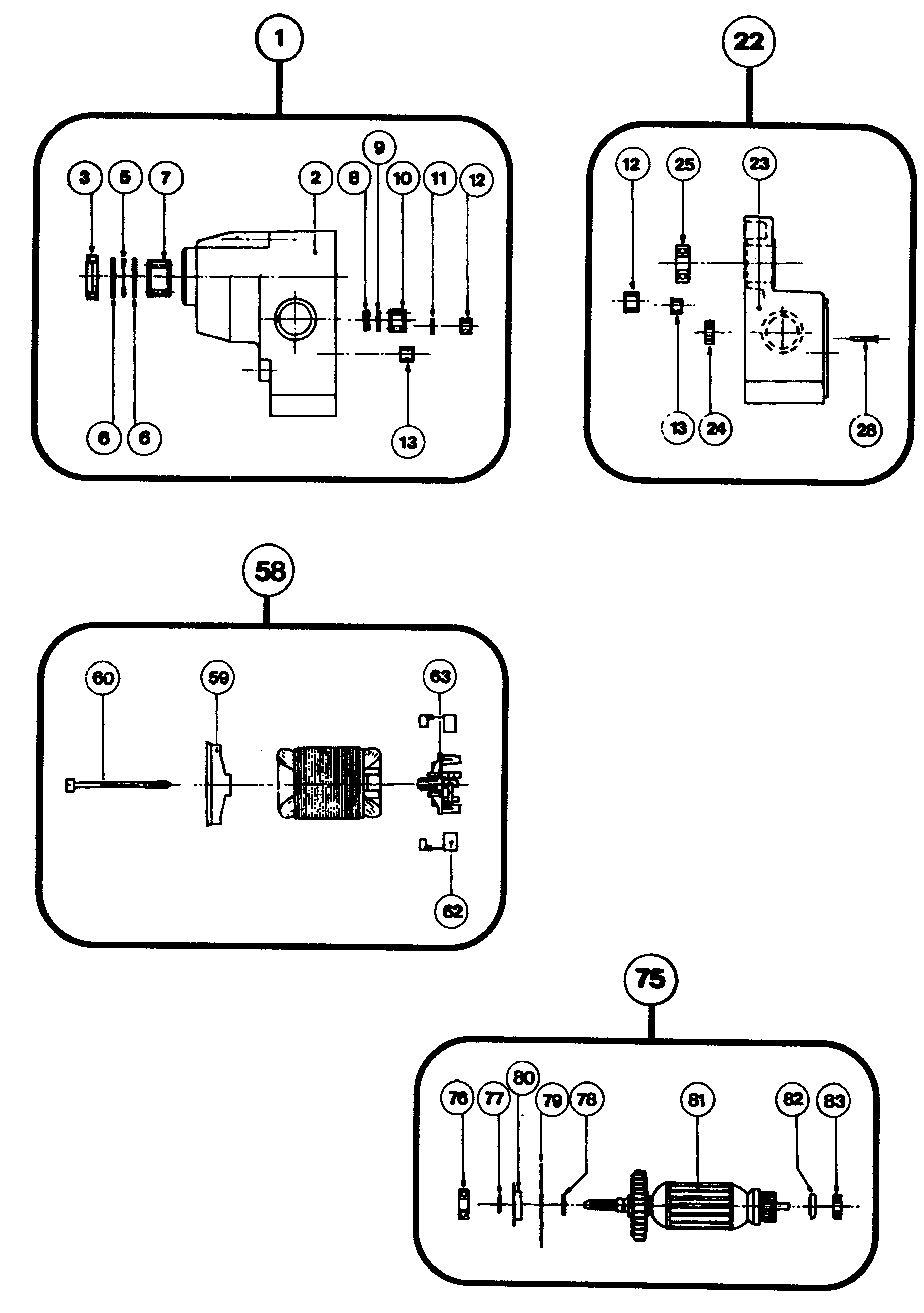

M2200 DIAMOND CORE DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 832314 | 1 | GEARCASE SA | XJ |  |
||
| 2 | 279006-00 | 1 | GEARCASE | XJ | |
||
| 3 | 832316 | 1 | SEAL | XJ | |
||
| 4 | 278604-00 | 1 | PLUG | XJ | |
||
| 5 | 832318 | 2 | BEARING THRUST | XJ | |
||
| 6 | 832319 | 3 | WASHER THRUST | XJ | |
||
| 7 | 832320 | 1 | BEARING | XJ | |
||
| 8 | 832321 | 1 | BEARING THRUST | XJ | |
||
| 9 | 832322 | 1 | WASHER THRUST | XJ | |
||
| 10 | 832323 | 1 | BEARING | XJ | |
||
| 11 | 832324 | 1 | BEARING | XJ | |
||
| 12 | 832325 | 2 | SLEEVE | XJ | |
||
| 13 | 832326 | 2 | SLEEVE | XJ | |
||
| 14 | 832327 | 2 | PIN | XJ | |
||
| 15 | 832328 | 1 | PIN | XJ | |
||
| 17 | 832330 | 1 | GEAR | XJ | |
||
| 19 | 832332 | 3 | SPRING | XJ | |
||
| 20 | 832333 | 2 | NUT | XJ | |
||
| 21 | 832334 | 1 | WASHER | XJ | |
||
| 22 | 279009-00 | 1 | GEARCASE SA | XJ | |
||
| 23 | 279008-00 | 1 | GEARCASE | XJ | |
||
| 24 | 832337 | 1 | BEARING | XJ | |
||
| 25 | 832338 | 1 | COVER SA | XJ | |
||
| 26 | 832339 | 1 | GASKET | XJ | |
||
| 27 | 279010-00 | 1 | COVER SA | XJ | |
||
| 28 | 832341 | 1 | PIN | XJ | |
||
| 29 | 832342 | 1 | CONNECTOR 3/4" | XJ | |
||
| 30 | 832343 | 2 | BALL | XJ | |
||
| 31 | 832344 | 2 | SPRING | XJ | |
||
| 32 | 832345 | 1 | PUMP | XJ | |
||
| 33 | 832346 | 1 | TUBE OIL | XJ | |
||
| 34 | 832347 | 1 | CONNECTOR | XJ | |
||
| 35 | 832348 | 1 | RING | XJ | |
||
| 37 | 832350 | 4 | SCREW | XJ | |
||
| 38 | 832351 | 1 | CIRCLIP | XJ | |
||
| 39 | 832352 | 8 | WASHER | XJ | |
||
| 40 | 832353 | 2 | WASHER | XJ | |
||
| 41 | 832354 | 1 | LEVER | XJ | |
||
| 42 | 832355 | 2 | RING | XJ | |
||
| 43 | 832356 | 1 | WASHER THRUST | XJ | |
||
| 44 | 832357 | 1 | SPINDLE | XJ | |
||
| 45 | 832358 | 1 | GEAR | XJ | |
||
| 46 | 832359 | 1 | GASKET | XJ | |
||
| 47 | 832360 | 1 | SPINDLE SA | XJ | |
||
| 48 | 832361 | 1 | SPINDLE | XJ | |
||
| 49 | 832362 | 1 | RING | XJ | |
||
| 50 | 832363 | 1 | SPINDLE | XJ | |
||
| 51 | 832364 | 4 | WASHER | XJ | |
||
| 52 | 832365 | 4 | SCREW | XJ | |
||
| 54 | 832366 | 1 | GASKET | XJ | |
||
| 55 | 832367 | 1 | PINION | XJ | |
||
| 56 | 322928 | 4 | SCREW | XJ | |
||
| 57 | 930909 | 1 | SEAL SA | XJ | |
||
| 58 | 940480-49 | 1 | FIELD | XJ | |
||
| 59 | 931073-00 | 1 | BAFFLE | XJ | |
||
| 60 | 931072 | 2 | SCREW | XJ | |
||
| 61 | 278635-00 | 1 | SEAL | XJ | |
||
| 62 | 933373-00 | 2 | BRUSH | XJ |  |
||
| 62 | 933373-00 | 2 | BRUSH | XJ | |
||
| 63 | 935747 | 1 | BRUSH PLATE SA | XJ | |
||
| 64 | 938332-00 | 1 | SLEEVE | XJ | |
||
| 65 | 948162-03 | 1 | FIELDCASE | XJ | |
||
| 72 | 930100 | 1 | CIRCLIP | XJ | |
||
| 73 | 930930 | 4 | SCREW | XJ | |
||
| 74 | 279011-00 | 1 | FLANGE | XJ | |
||
| 75 | 278621-00 | 1 | ARMATURE SA | XJ | |||
| 76 | 832376 | 1 | BEARING | XJ | |
||
| 77 | 930028-00 | 1 | O RING | XJ | |
||
| 78 | 931062-00 | 1 | SPACER | XJ | |||
| 79 | 931066-00 | 1 | FLANGE | XJ | |
||
| 80 | 931067-00 | 1 | SEAL SA | XJ | |
||
| 81 | 931629-49 | 1 | ARMATURE 220/240V | XJ | |
||
| 82 | 938331-00 | 1 | SPACER | XJ | |||
| 83 | 577745-00 | 1 | BEARING | XJ | |
||
| 84 | 278670-00 | 1 | WASHER | XJ | |
||
| 85 | 832378 | 2 | SCREW | XJ | |
||
| 86 | 832379 | 2 | SCREW | XJ | |
||
| 87 | 832380 | 1 | COVER | XJ | |
||
| 88 | 832633 | 1 | CORD CLAMP | XJ | |
||
| 89 | 278605-00 | 1 | CABLE | XJ | |
||
| 90 | 278603-00 | 1 | END CAP SA | XJ | |
||
| 91 | 930752-00 | 2 | SCREW | XJ | |
||
| 92 | 931297-00 | 2 | SCREW | XJ | |
||
| 94 | 278751-00 | 2 | PLUG | XJ | |
||
| 95 | 832635 | 1 | SEAL | XJ | |
||
| 96 | 832636 | 1 | PIN | XJ | |
||
| 97 | 832637 | 1 | GEAR | XJ | |
||
| 98 | 832638 | 1 | PIN | XJ | |
||
| 99 | 832639 | 1 | WASHER | XJ | |
||
| 100 | 832640 | 1 | LEVER | XJ | |
||
| 101 | 832641 | 1 | PLATE | XJ | |
||
| 102 | 832642 | 2 | SEAL | XJ | |
||
| 103 | 832643 | 1 | TUBE OIL | XJ | |
||
| 104 | 832644 | 1 | SEAL | XJ | |
||
| 105 | 832645 | 1 | NOZZLE | XJ | |
||
| 106 | 832650 | 1 | SEAL | XJ | |
||
| 107 | 278608-00 | 1 | LEVER | XJ | |||
| 108 | 278609-00 | 1 | SCREW | XJ | |
||
| 115 | 278735-00 | 1 | LEAD | XJ | |
||
| 116 | 278782-00 | 1 | PCB | XJ | |
||
| 117 | 279029-00 | 1 | SWITCH | XJ | |
||
| 118 | 278741-00 | 1 | COVER | XJ | |
||
| 119 | 279032-00 | 1 | SWITCHBOX | XJ | |
||
| 120 | 279036-00 | 1 | MOTOR 220V | XJ | |
||
| 124 | 278760-00 | 2 | WASHER SHIM | XJ | |
||
| 125 | 278753-00 | 1 | BUSH | XJ | |
||
| 126 | 278754-00 | 2 | WASHER CLAMP | XJ | |
