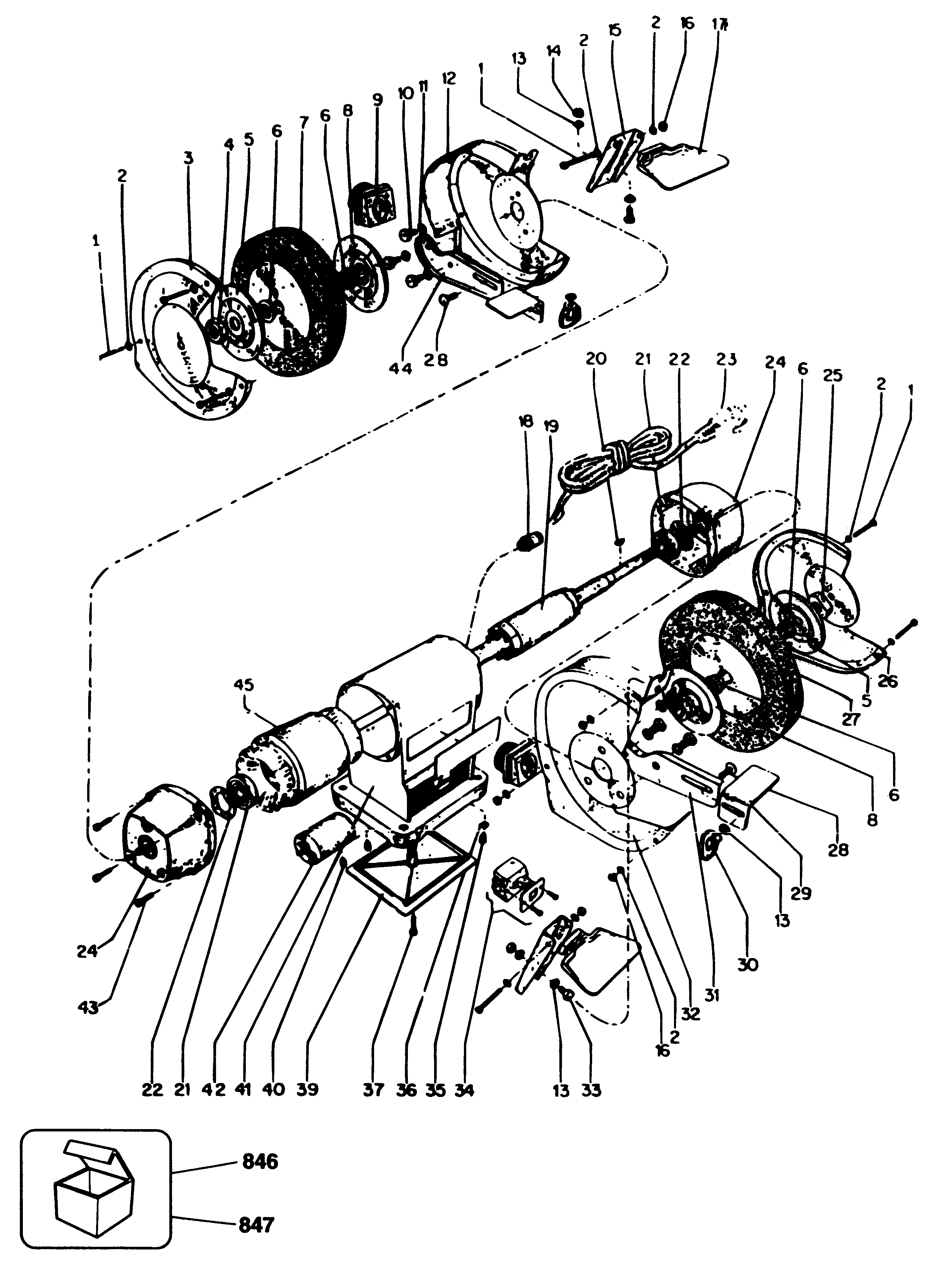

P7608 BENCH GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860089-13 | 8 | SCREW | XJ |  |
||
| 2 | 761035-00 | 8 | WASHER | XJ | |
||
| 3 | 132719 | 1 | FENCE LH | XJ | |
||
| 4 | 32498 | 1 | NUT | XJ | |
||
| 5 | 863784-00 | 2 | CLAMP | XJ | |
||
| 8 | 192733 | 2 | FLANGE | XJ | |
||
| 9 | 32729 | 2 | OUTLET | XJ | |
||
| 10 | 860085-03 | 4 | BOLT | XJ |  |
||
| 11 | 11408 | 4 | WASHER | XJ | |
||
| 12 | 132721 | 1 | GUARD LH | XJ | |
||
| 13 | 860075-00 | 8 | WASHER | XJ | |
||
| 14 | 860083-03 | 2 | NUT | FR ONLY | XJ | |
|
| 14 | 860083-02 | 2 | NUT | ALL MKTS EXCEPT FR | XJ | |
|
| 15 | 33919 | 2 | SHIELD | XJ | |
||
| 16 | 860083-02 | 8 | NUT | XJ | |
||
| 17 | 33907 | 2 | VISOR | XJ | |
||
| 18 | 11764 | 1 | CLAMP | XJ | |
||
| 20 | 860096-01 | 2 | PIN | XJ | |
||
| 21 | 930566 | 2 | BEARING | ALL MKTS EXCEPT FR | XJ | |
|
| 21 | 861721-12 | 2 | BEARING | FR ONLY | XJ | |
|
| 22 | 860080-02 | 1 | RING | FR ONLY | XJ | |
|
| 23 | 149297 | 1 | CABLE 3 PH | P76-08 | XJ | |
|
| 23 | 149299 | 1 | CABLE 1 PH | P75-08 | XJ | |
|
| 24 | 176040 | 2 | BAFFLE | XJ | |
||
| 25 | 32497 | 1 | NUT | XJ | |
||
| 26 | 132718 | 1 | FENCE | XJ | |
||
| 28 | 249406-00 | 1 | SCREW | XJ | |
||
| 29 | 33910 | 2 | TOOL REST | XJ | |
||
| 30 | 946469-00 | 2 | KNOB | XJ | |
||
| 31 | 32923 | 1 | BLOCK | XJ | |
||
| 32 | 132720 | 1 | GUARD RH | XJ | |
||
| 33 | 860085-07 | 4 | SCREW | XJ | |
||
| 34 | 44301 | 1 | SWITCH | P75-08 | XJ | |
|
| 34 | 44323 | 1 | PLATE | P76-08 | XJ | |
|
| 35 | 860094-02 | 1 | SCREW | XJ | |
||
| 36 | 944650-00 | 1 | WASHER SPRING | XJ | |
||
| 37 | 11297 | 4 | SCREW | XJ | |
||
| 39 | 32902 | 1 | BASEPLATE | XJ | |
||
| 40 | 941880-00 | 2 | SCREW | XJ | |
||
| 41 | 172900 | 1 | FIELDCASE | XJ | |
||
| 42 | 44417 | 1 | CAPACITOR | XJ | |
||
| 43 | 941518-00 | 8 | SCREW | ALL MKTS EXCEPT FR | XJ | |
|
| 43 | 860089-17 | 8 | SCREW.TEMP | FR ONLY | XJ | |
|
| 45 | 199583-00 | 1 | FIELD 1 PH | P75-08 | XJ | ||
| 45 | 199584-00 | 1 | FIELD 3 PH | P76-08 | XJ | ||
| 46 | 133949 | 1 | SPACER | XJ | |
||
| 47 | 860134-00 | 1 | CONNECTOR | XJ | |
||
| 846 | 860134-00 | 1 | CONNECTOR | P76-08 | XJ | |
|
| 847 | 133949 | 1 | SPACER | P75-08 | XJ | |
