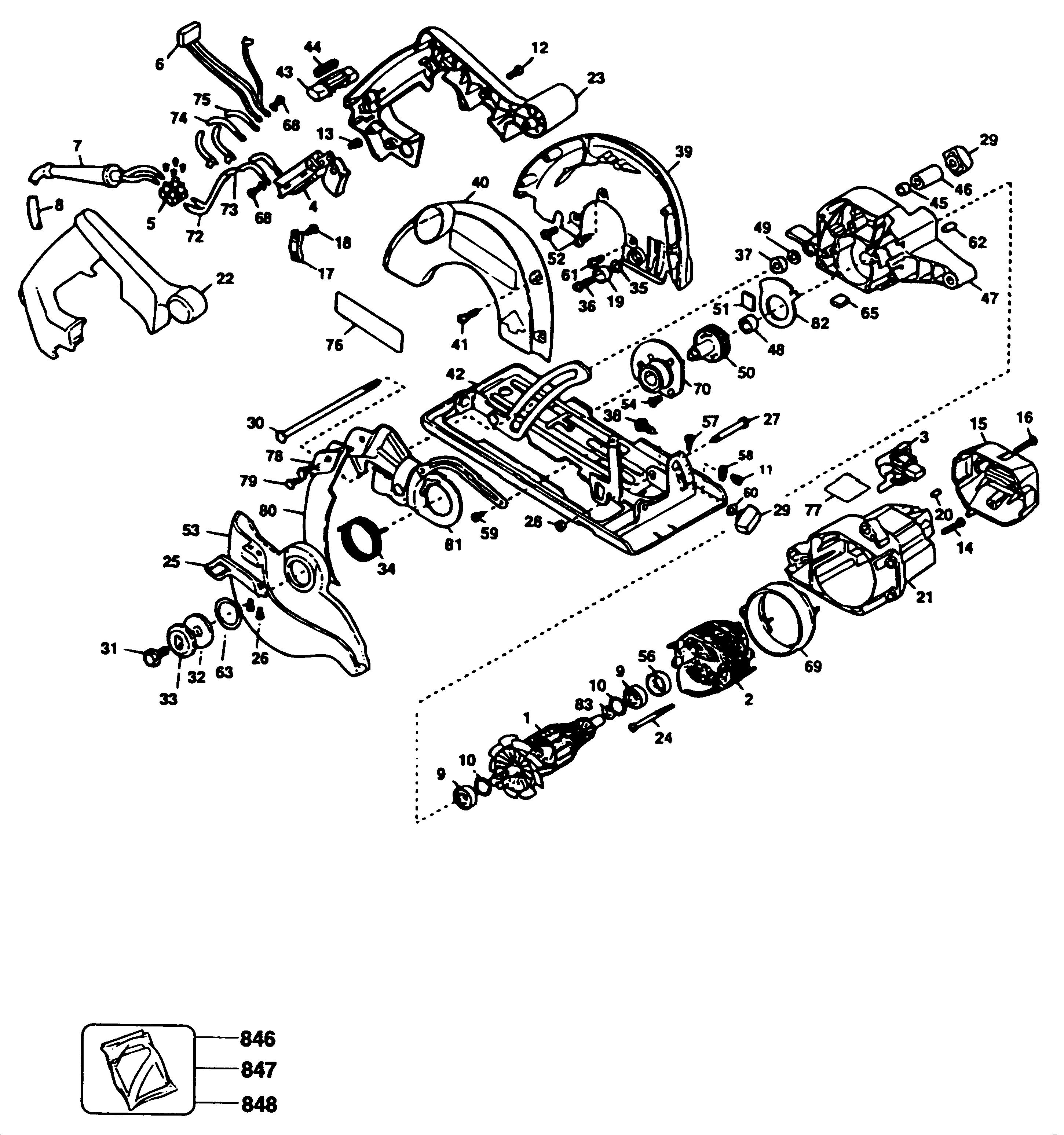

PL41 CIRC. SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 147171-07 | 1 | ARMATURE & FAN | GB |  |
||
| 2 | 144795-02 | 1 | FIELD | GB | |
||
| 3 | 145377-08 | 2 | BRUSH & HOLDER SA | GB | |
||
| 4 | 429981-00 | 1 | SWITCH KIT | GB | |
||
| 5 | 320078-00 | 1 | TERMINAL BLOCK | GB |  |
||
| 6 | 148679-02 | 1 | CAPACITOR | GB | |
||
| 7 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 7 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 8 | 330060-44 | 1 | CORDSET (M/PLUG) | GB | |
||
| 9 | 605040-20 | 2 | BEARING | 12 x 28 x 8mm | GB | |
|
| 10 | 400677-00 | 2 | CIRCLIP | GB | |
||
| 11 | 330045-04 | 1 | SCREW.TEMP | M4x0.7x6 MTL THD FMG | GB | ||
| 12 | 330019-14 | 7 | SCREW | GB | |
||
| 13 | 330019-01 | 1 | SCREW.TEMP | M3.63 x 9.5mm T15 | GB | |
|
| 14 | 330045-19 | 4 | SCREW | GB | |
||
| 15 | 145361-01 | 1 | END CAP | GB | |
||
| 17 | 003618-00 | 1 | CORD CLAMP | GB | |
||
| 18 | 148461-00 | 2 | SCREW.TEMP | GB | |
||
| 19 | 145375-02 | 1 | BUMPER | GB | |
||
| 20 | 87205-00 | 2 | PLUG | GB | |
||
| 21 | 145360-01 | 1 | FIELDCASE | GB | |
||
| 22 | 145362-02 | 1 | HANDLE | GB | |
||
| 23 | 145363-02 | 1 | COVER | GB | |
||
| 24 | 147186-00 | 2 | SCREW.TEMP | GB | |
||
| 25 | 147052-00 | 1 | LEVER | GB | |
||
| 26 | 330045-05 | 2 | SCREW | GB | |
||
| 27 | 396631-00 | 1 | SCREW | GB | |
||
| 28 | 148641-00 | 1 | LOCK-NUT | GB | |
||
| 29 | 395889-00 | 2 | KNOB | GB | |
||
| 31 | 145344-00 | 1 | SCREW.SPECIAL | GB | |
||
| 32 | 145442-01 | 1 | WASHER INNER CLAMP | GB | |
||
| 33 | 145446-00 | 1 | WASHER OUTER CLAMP | GB | |
||
| 34 | 93314-00 | 1 | SPRING | GB | |
||
| 35 | 150246-00 | 1 | SPACER | GB | |
||
| 36 | 98096-19 | 1 | SCREW.TEMP | GB | |
||
| 37 | 148455-00 | 1 | SPACER | GB | |
||
| 38 | N022876 | 1 | CARRIAGE BOLT | M6x1.0x25 NYLOCK | GB | |
|
| 39 | 148977-02 | 1 | GUARD UPPER | GB | |||
| 40 | 148978-02 | 1 | GUARD COVER | GB | |
||
| 41 | 330045-06 | 4 | SCREW | GB | |
||
| 43 | 148453-00 | 1 | LOCK BUTTON | GB | |
||
| 44 | 21286-00 | 1 | SPRING | GB | |
||
| 45 | 150462-00 | 1 | SPACER | GB | |
||
| 46 | 150690-00 | 1 | EXTENSION | GB | |||
| 48 | 145381-00 | 1 | BEARING | GB | |
||
| 50 | 147098-06 | 1 | SPINDLE & GEAR | GB | |
||
| 51 | 147194-00 | 1 | SEAL | GB | |
||
| 52 | 330045-23 | 2 | SCREW | GB | |
||
| 53 | 147046-01 | 1 | GUARD LOWER | GB | |||
| 54 | 98102-13 | 3 | SCREW.TEMP | GB | |
||
| 56 | 147088-00 | 1 | SLEEVE | GB | |
||
| 57 | 98004-36 | 1 | SCREW.TEMP | GB | |
||
| 58 | 145341-00 | 1 | POINTER | GB | |
||
| 59 | 148757-00 | 1 | SCREW.SPECIAL | GB | |
||
| 60 | 330016-02 | 1 | WASHER | GB | |
||
| 61 | 330045-25 | 1 | SCREW.TEMP | M6x25 MTL THD FMG | GB | |
|
| 62 | 145312-00 | 1 | PLUG | GB | |
||
| 63 | 388496-00 | 1 | RETAINER | GB | |
||
| 65 | 145351-00 | 1 | WIPER | GB | |
||
| 68 | 384127-01 | 4 | SCREW | GB | |
||
| 69 | 145301-00 | 1 | BAFFLE FAN | GB | |
||
| 73 | 149005-00 | 1 | LEAD SA | GB | |
||
| 74 | 148039-00 | 1 | LEAD SA | GB | |
||
| 75 | 145374-00 | 1 | LEAD SA | GB | |
||
| 76 | 148237-00 | 1 | IDENTITY LABEL | GB | |
||
| 77 | 147091-01 | 1 | NAMEPLATE | GB | |
||
| 78 | 148459-00 | 1 | PLATE | GB | |
||
| 79 | 98113-12 | 2 | SCREW.TEMP | GB | |
||
| 80 | 147076-03 | 1 | RIVING KNIFE | GB | |
||
| 81 | 150988-00 | 1 | CARRIER | GB | |
||
| 82 | 145326-01 | 1 | RETAINER | GB | |
||
| 846 | 147071-05 | 1 | RIP FENCE | GB | |
||
| 848 | 148566-00 | 1 | WRENCH | GB | |
