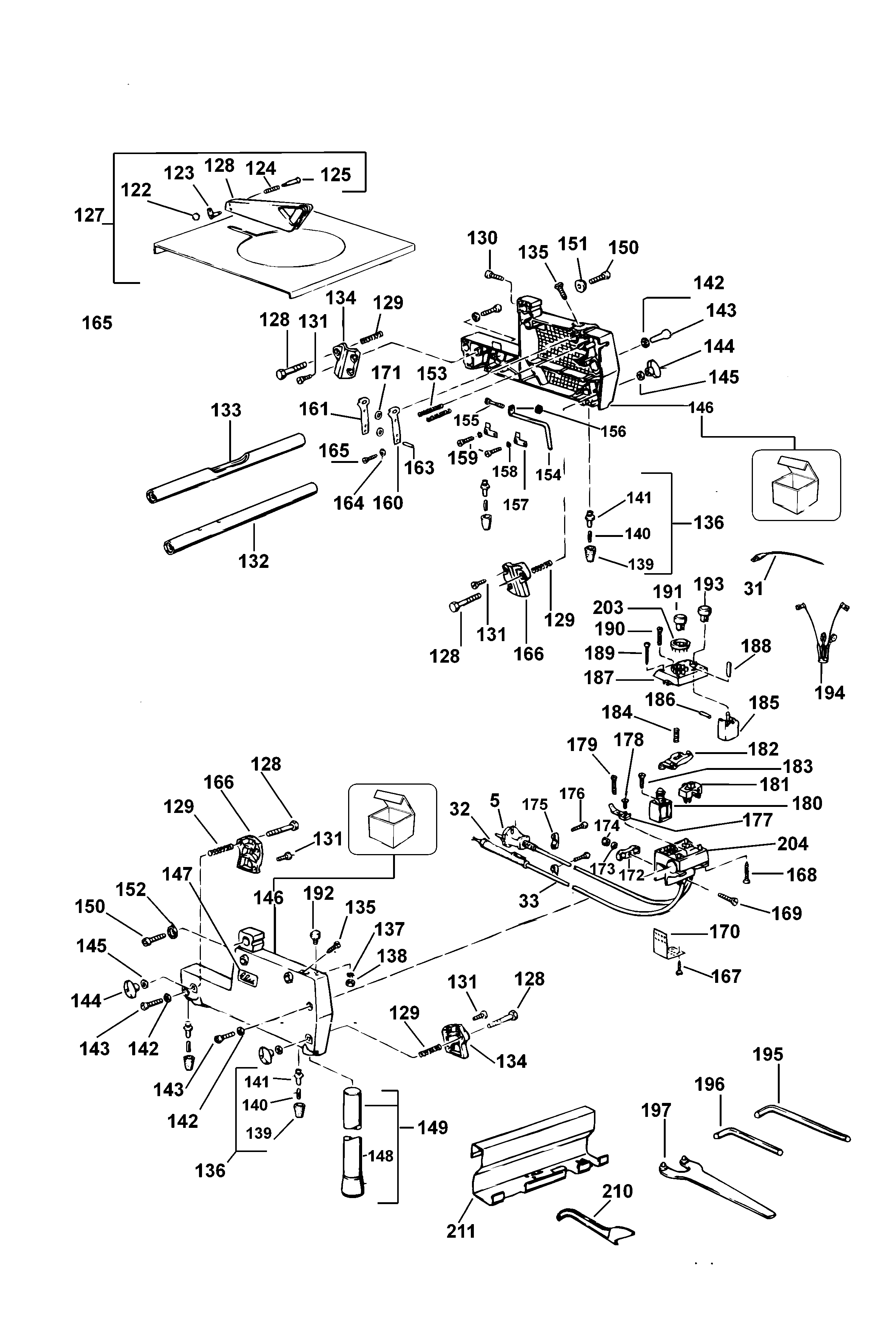

TGS173----D TABLE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 5 | 4101509 | 1 | CABLE | GB 240V | GB |  |
|
| 31 | 942427-00 | 1 | CONNECTING WIRE | STANDARD | GB | |
|
| 32 | 942277-00 | 1 | PROTECTOR | STANDARD | GB |  |
|
| 33 | 946845-00 | 1 | CABLE | GB | |
||
| 123 | 171112606 | 1 | PIN | STANDARD | GB | |
|
| 124 | 941622-00 | 1 | SPRING | STANDARD | GB | |
|
| 125 | 171112604 | 1 | PIN | STANDARD | GB | |
|
| 126 | N162669 | 1 | GUARD UPPER | STANDARD | GB | |
|
| 127 | N164678 | 1 | GUARD SA | STANDARD | GB | |
|
| 128 | 942043-00 | 1 | SCREW | STANDARD | GB | |
|
| 129 | 761054-00 | 4 | SPRING | STANDARD | GB | |
|
| 130 | 860089-16 | 1 | SCREW | STANDARD | GB | |
|
| 131 | 941606-00 | 4 | SCREW | STANDARD | GB | |
|
| 132 | 170101800 | 1 | TUBE | STANDARD | GB | |
|
| 133 | 170101801 | 1 | TUBE | STANDARD | GB | |
|
| 134 | 171114302 | 1 | CLAMP LH | STANDARD | GB | |
|
| 135 | 860089-07 | 2 | SCREW.TEMP | STANDARD | GB | |
|
| 136 | 867133-00 | 2 | FOOT SA | STANDARD | GB | |
|
| 137 | 860078-02 | 1 | WASHER | STANDARD | GB | |
|
| 138 | 860083-14 | 1 | NUT | GB | |
||
| 139 | 942375-00 | 2 | FOOT | STANDARD | GB | |
|
| 140 | 172810200 | 2 | PIN | STANDARD | GB | |
|
| 141 | 172117600 | 2 | BUSH | STANDARD | GB | |
|
| 142 | 98197-08 | 4 | WASHER | STANDARD | GB | |
|
| 143 | 942447-00 | 4 | SCREW | STANDARD | GB | |
|
| 144 | 941756-00 | 2 | KNOB | STANDARD | GB | |
|
| 145 | 860073-03 | 2 | WASHER M8 | STANDARD | GB | |
|
| 146 | 868200-00 | 1 | PANEL SA | STANDARD | GB | |
|
| 147 | 862598-01 | 1 | LABEL | STANDARD | GB | |
|
| 148 | 941579-01 | 1 | FOOT | STANDARD | GB | |
|
| 149 | 869373-00 | 1 | FSO KIT | STANDARD | GB | |
|
| 149 | 869373-00 | 1 | FSO KIT | STANDARD | GB | |
|
| 150 | 942041-00 | 2 | SCREW | STANDARD | GB | |
|
| 151 | 172114702 | 1 | WASHER CLAMP | STANDARD | GB | |
|
| 152 | 172114701 | 1 | WASHER CLAMP | STANDARD | GB | |
|
| 153 | 942522-00 | 1 | SPRING | STANDARD | GB | |
|
| 154 | 942098-00 | 1 | LOCKING DEVICE | STANDARD | GB | |
|
| 155 | 942185-00 | 1 | SCREW | M6 | STANDARD | GB | |
| 156 | 949726-05 | 1 | NUT | STANDARD | GB | |
|
| 157 | 942104-00 | 1 | BRIDGE | STANDARD | GB | |
|
| 158 | 761035-00 | 1 | WASHER | STANDARD | GB | |
|
| 159 | 860094-00 | 1 | SCREW.TEMP | STANDARD | GB | |
|
| 160 | 173112101 | 1 | LOCK | STANDARD | GB | |
|
| 161 | 173112100 | 1 | LOCK | STANDARD | GB | |
|
| 163 | 942365-00 | 1 | PIN | STANDARD | GB | |
|
| 164 | 860073-01 | 2 | WASHER | GB 240V | GB | |
|
| 164 | 860073-01 | 2 | WASHER | GB 115V | GB | |
|
| 164 | 15182 | 1 | WASHER | STANDARD | GB | ||
| 165 | 860089-18 | 1 | SCREW | STANDARD | GB | |
|
| 166 | 171114301 | 2 | CLAMP RH | STANDARD | GB | |
|
| 167 | 860084-20 | 2 | SCREW | STANDARD | GB | |
|
| 168 | 080914409 | 1 | SCREW | STANDARD | GB | |
|
| 169 | 949701-12 | 1 | SCREW | STANDARD | GB | |
|
| 170 | 170166500 | 1 | BRACKET | STANDARD | GB | |
|
| 171 | 151820200 | 1 | WASHER | STANDARD | GB | |
|
| 172 | 173162700 | 1 | CABLE CLAMP | STANDARD | GB | |
|
| 173 | 860073-01 | 1 | WASHER | GB 115V | GB | |
|
| 173 | 860073-01 | 1 | WASHER | GB 240V | GB | |
|
| 173 | 15182 | 1 | WASHER | STANDARD | GB | ||
| 174 | 860083-02 | 1 | NUT | STANDARD | GB | |
|
| 175 | 173162700 | 1 | CABLE CLAMP | STANDARD | GB | |
|
| 176 | 949701-12 | 1 | SCREW | STANDARD | GB | |
|
| 177 | 172164604 | 1 | CONNECTOR | STANDARD | GB | |
|
| 178 | 949870-02 | 1 | SCREW | STANDARD | GB | |
|
| 179 | 949896-12 | 1 | SCREW | STANDARD | GB | |
|
| 180 | 942517-00 | 1 | ELECTRO MAGNET | STANDARD | GB | |
|
| 181 | 173160300 | 1 | SWITCH | STANDARD | GB | |
|
| 182 | 173164100 | 1 | SWITCH SUPPORT | STANDARD | GB | |
|
| 183 | 170910349 | 1 | SCREW | STANDARD | GB | |
|
| 184 | 173934064 | 1 | SPRING | STANDARD | GB | |
|
| 185 | 864720-00 | 1 | SWITCH SA | STANDARD | GB | |
|
| 186 | 861378-00 | 1 | SCREW | STANDARD | GB | |
|
| 187 | 942511-90 | 1 | COVER | STANDARD | GB | |
|
| 188 | 942124-00 | 1 | PIN | STANDARD | GB | |
|
| 189 | 720744-00 | 1 | SCREW | STANDARD | GB | |
|
| 190 | 860084-14 | 1 | SCREW | STANDARD | GB | |
|
| 191 | 173163400 | 1 | BUTTON ON | STANDARD | GB | |
|
| 192 | 941614-00 | 1 | FOOT | STANDARD | GB | |
|
| 193 | 173163401 | 1 | BUTTON OFF | STANDARD | GB | |
|
| 194 | 861775-00 | 1 | RECTIFIER | GB | |
||
| 195 | 860098-05 | 1 | HEX KEY 8 MM | STANDARD | GB | |
|
| 196 | 860098-04 | 1 | WRENCH 6 MM | STANDARD | GB | |
|
| 197 | 939072-00 | 1 | SPANNER | STANDARD | GB | |
|
| 203 | 942506-00 | 1 | RING | STANDARD | GB | |
|
| 204 | 173160100 | 1 | HOUSING SWITCH | STANDARD | GB | |
|
| 240 | 860610-01 | 1 | PUSHROD | STANDARD | GB | |
