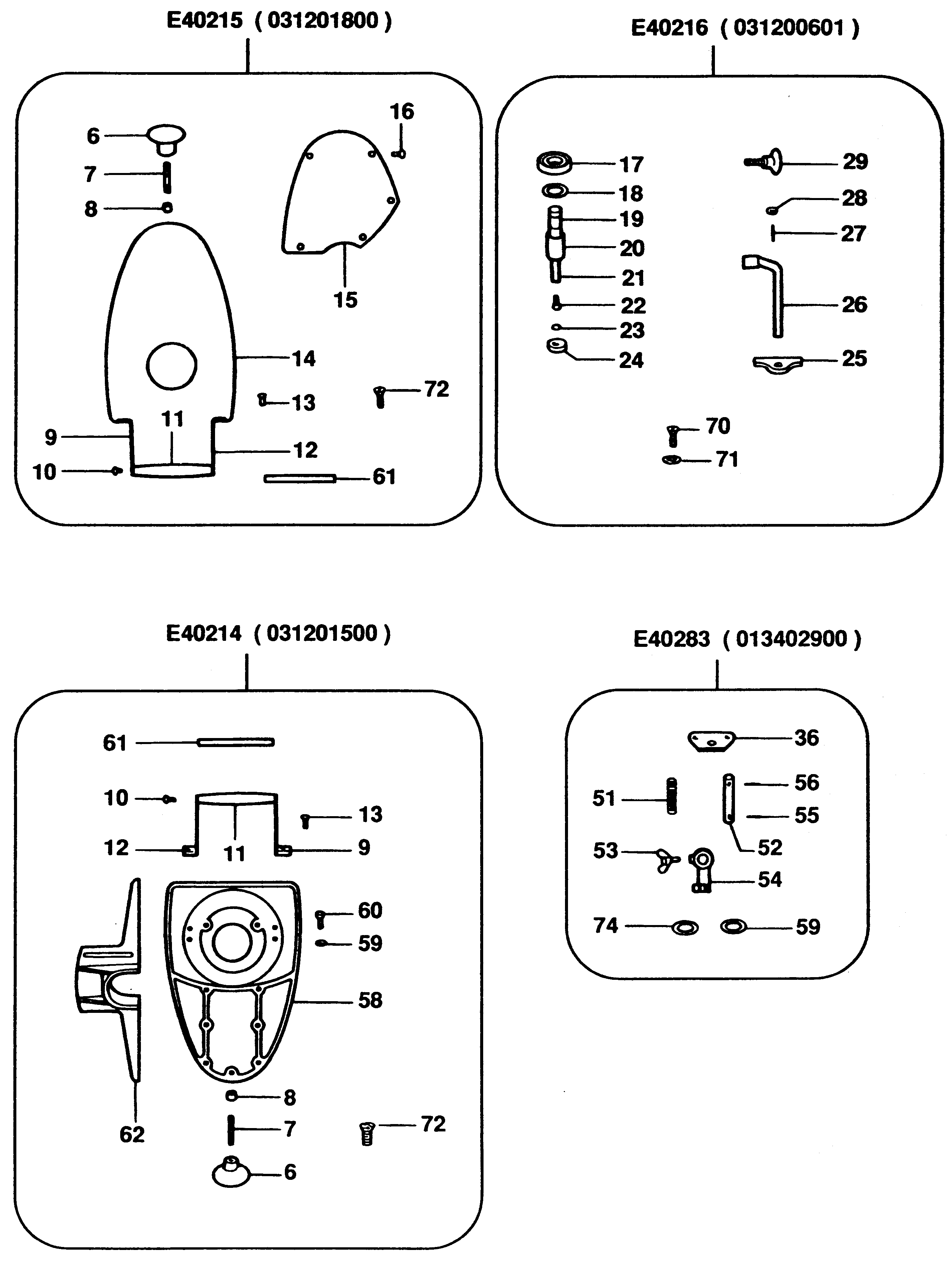

E40214 ROUTER ACCESSORY Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 6 | 941609-00 | 1 | KNOB | E40214 | XJ |  |
|
| 6 | 941609-00 | 1 | KNOB | E40215 | XJ | |
|
| 7 | 011812900 | 1 | STUD | E40214 | XJ | |
|
| 7 | 011812900 | 1 | STUD | E40215 | XJ | |
|
| 8 | 011212301 | 1 | SPACER | E40214 | XJ | |
|
| 8 | 011212301 | 1 | SPACER | E40215 | XJ | |
|
| 9 | 031230101 | 1 | HANDLE | E40214 | XJ | |
|
| 9 | 031230101 | 1 | HANDLE | E40215 | XJ | |
|
| 10 | 011811001 | 1 | SCREW | E40214 | XJ | |
|
| 10 | 011811001 | 1 | SCREW | E40215 | XJ | |
|
| 11 | 031921502 | 1 | GRIP | E40214 | XJ | |
|
| 11 | 031921502 | 1 | GRIP | E40215 | XJ | |
|
| 12 | 031230100 | 1 | HANDLE | E40214 | XJ | |
|
| 12 | 031230100 | 1 | HANDLE | E40215 | XJ | |
|
| 13 | 249412-30 | 1 | SCREW | E40214 | XJ | ||
| 13 | 249412-30 | 1 | SCREW | E40215 | XJ | ||
| 14 | 011216300 | 1 | PLATE | E40215 | XJ | |
|
| 15 | 011216301 | 1 | PLATE | E40215 | XJ | |
|
| 16 | 249412-13 | 1 | SCREW | E40215 | XJ | |
|
| 17 | 031234800 | 1 | SLEEVE | E40216 | XJ | |
|
| 18 | 031233100 | 1 | WASHER | E40216 | XJ | |
|
| 19 | 031234700 | 1 | SPINDLE | E40216 | XJ | |
|
| 20 | 031230401 | 1 | SLEEVE | E40216 | XJ | |
|
| 21 | 031231600 | 1 | SPINDLE | E40216 | XJ | ||
| 22 | 868034-00 | 1 | PIN | E40216 | XJ | |
|
| 23 | 031930134 | 1 | WASHER | E40216 | XJ | |
|
| 24 | 031239600 | 1 | ROLLER | E40216 | XJ | |
|
| 25 | 031230600 | 1 | WASHER THRUST | E40216 | XJ | |
|
| 26 | 031230102 | 1 | HOLDER | E40216 | XJ | |
|
| 27 | 027816200 | 1 | PIN | E40216 | XJ | |
|
| 28 | 860074-02 | 1 | WASHER | E40216 | XJ |  |
|
| 29 | 025922908 | 1 | KNOB | E40216 | XJ | |
|
| 36 | 013413600 | 1 | SHOE | E40283 | XJ | |
|
| 51 | 006931009 | 1 | SPRING | E40283 | XJ | ||
| 52 | 013410604 | 1 | ROD | E40283 | XJ | ||
| 53 | 010812000 | 1 | SCREW WING | E40283 | XJ | |
|
| 54 | 013411903 | 1 | CENTRE | E40283 | XJ | ||
| 55 | 069913906 | 1 | PIN | E40283 | XJ | |
|
| 56 | 023810200 | 1 | SLEEVE | E40283 | XJ | |
|
| 58 | 011272000 | 1 | BASEPLATE | E40214 | XJ | ||
| 59 | 249221-00 | 1 | WASHER | E40214 | XJ | |
|
| 59 | 249221-00 | 1 | WASHER | E40283 | XJ | |
|
| 60 | 941518-00 | 1 | SCREW | E40214 | XJ | |
|
| 61 | 031230400 | 1 | PIN | E40214 | XJ | |
|
| 61 | 031230400 | 1 | PIN | E40215 | XJ | |
|
| 62 | 011270404 | 1 | FENCE | E40214 | XJ | |
|
| 70 | 860085-09 | 1 | SCREW.TEMP | E40216 | XJ | |
|
| 71 | 249221-00 | 1 | WASHER | E40216 | XJ | |
|
| 72 | 006811001 | 1 | SCREW | E40214 | XJ | |
|
| 72 | 006811001 | 1 | SCREW | E40215 | XJ | |
|
| 74 | 743415 | 1 | WASHER | 6mm | E40283 | XJ | |
