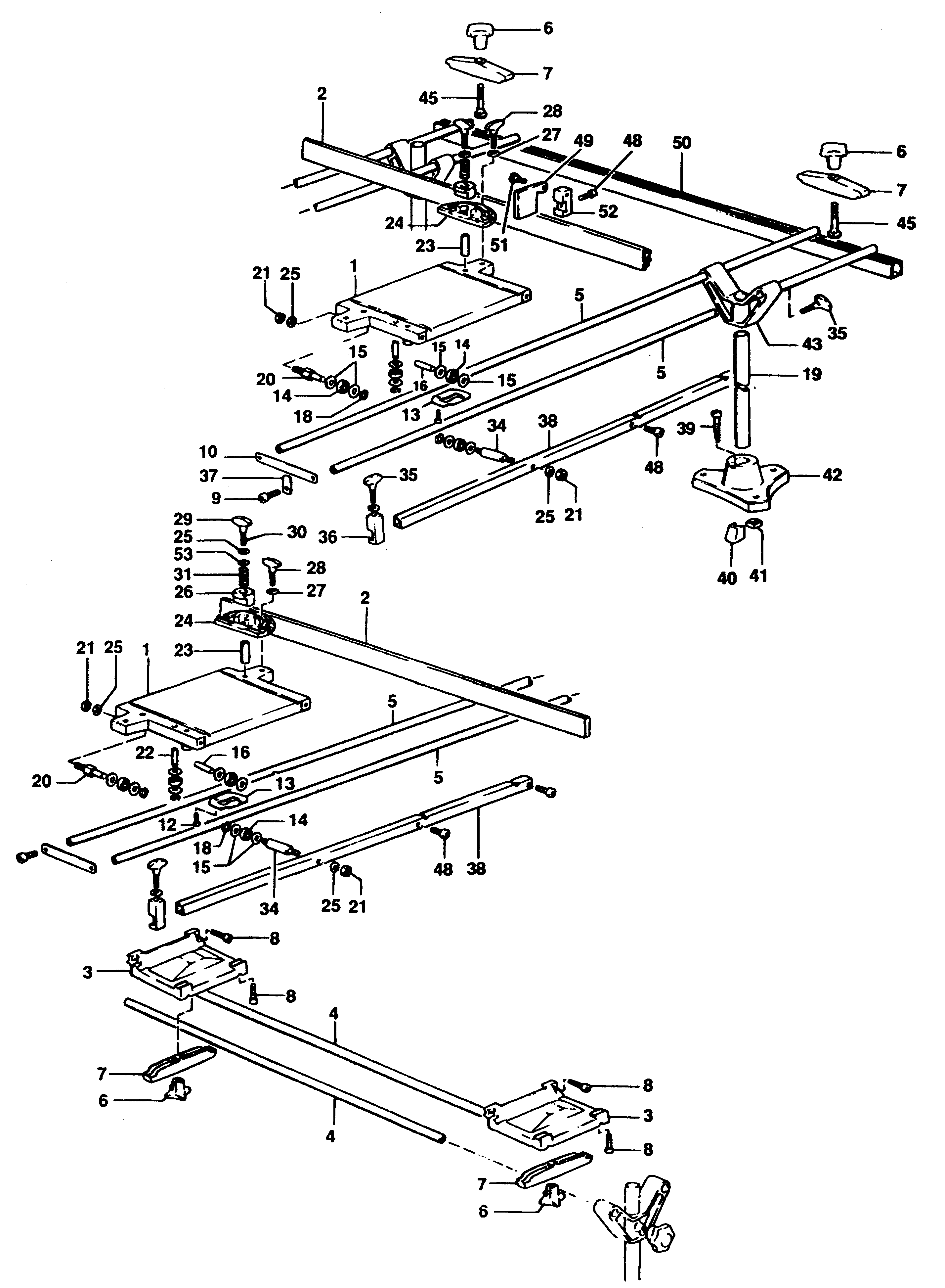

071203403 TABLE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 942179-00 | 2 | TABLE | XJ |  |
||
| 2 | 941868-00 | 1 | FENCE | XJ | |
||
| 3 | 941864-00 | 2 | PLATE | XJ | |
||
| 4 | 862947-00 | 2 | SHAFT | XJ | |
||
| 5 | 941856-00 | 2 | SHAFT | XJ | |
||
| 6 | 941564-01 | 4 | HANDLE | XJ |  |
||
| 7 | 071273600 | 4 | PLATE | XJ | |
||
| 8 | 932617 | 8 | SCREW | XJ | |
||
| 9 | 860093-12 | 8 | SCREW | XJ | |
||
| 10 | 941863-00 | 2 | STOP | XJ | |
||
| 12 | 760998-00 | 16 | SCREW | XJ | |
||
| 13 | 941858-00 | 8 | PLATE | XJ | |
||
| 14 | N110358 | 22 | BEARING | XJ | |
||
| 15 | 941859-00 | 44 | WASHER | XJ | |
||
| 16 | 860649-03 | 8 | PIN | XJ | |
||
| 18 | 120820700 | 14 | CIRCLIP | XJ | |
||
| 19 | 941842-00 | 3 | TUBE | XJ | |
||
| 20 | 941870-00 | 4 | ROLLER | XJ | |
||
| 21 | 860083-15 | 6 | NUT | XJ | |
||
| 22 | 941873-00 | 8 | DOWEL | XJ | |
||
| 23 | 36007 | 2 | BUSH | XJ | |||
| 24 | 941708-00 | 2 | SCALE | XJ | |
||
| 25 | 860073-03 | 8 | WASHER M8 | XJ | |
||
| 26 | 941746-00 | 3 | CLAMP | XJ | |
||
| 27 | 941602-00 | 2 | WASHER | XJ | |
||
| 28 | 760243-00 | 2 | SCREW | XJ | |
||
| 29 | 941756-00 | 2 | KNOB | XJ | |
||
| 30 | 942146-00 | 2 | SHAFT | XJ | |
||
| 31 | 941759-00 | 2 | SPRING | XJ | |
||
| 34 | 941850-00 | 2 | SPINDLE | XJ | |
||
| 35 | 071915502 | 5 | SCREW | XJ | |
||
| 36 | 941849-00 | 2 | BLOCK | XJ | |
||
| 38 | 941853-00 | 2 | ROD | XJ | |
||
| 39 | 860093-21 | 3 | SCREW | XJ | |
||
| 40 | 862025-00 | 3 | CLAMP | XJ | |
||
| 41 | 941535-00 | 3 | NUT | XJ | |
||
| 42 | 941839-00 | 3 | FOOT | XJ | |
||
| 43 | 941829-00 | 3 | BRACKET | XJ | |
||
| 45 | 941867-00 | 2 | SCREW | XJ | |
||
| 48 | 860144-05 | 4 | SCREW | XJ | |
||
| 49 | 941846-00 | 1 | PLATE | XJ | |
||
| 50 | 941869-00 | 1 | FENCE | XJ | |
||
| 51 | 031813700 | 1 | SCREW | XJ | |||
| 52 | 941861-00 | 1 | FENCE | XJ | |
||
| 53 | 860491-01 | 4 | SPRING | XJ | |
