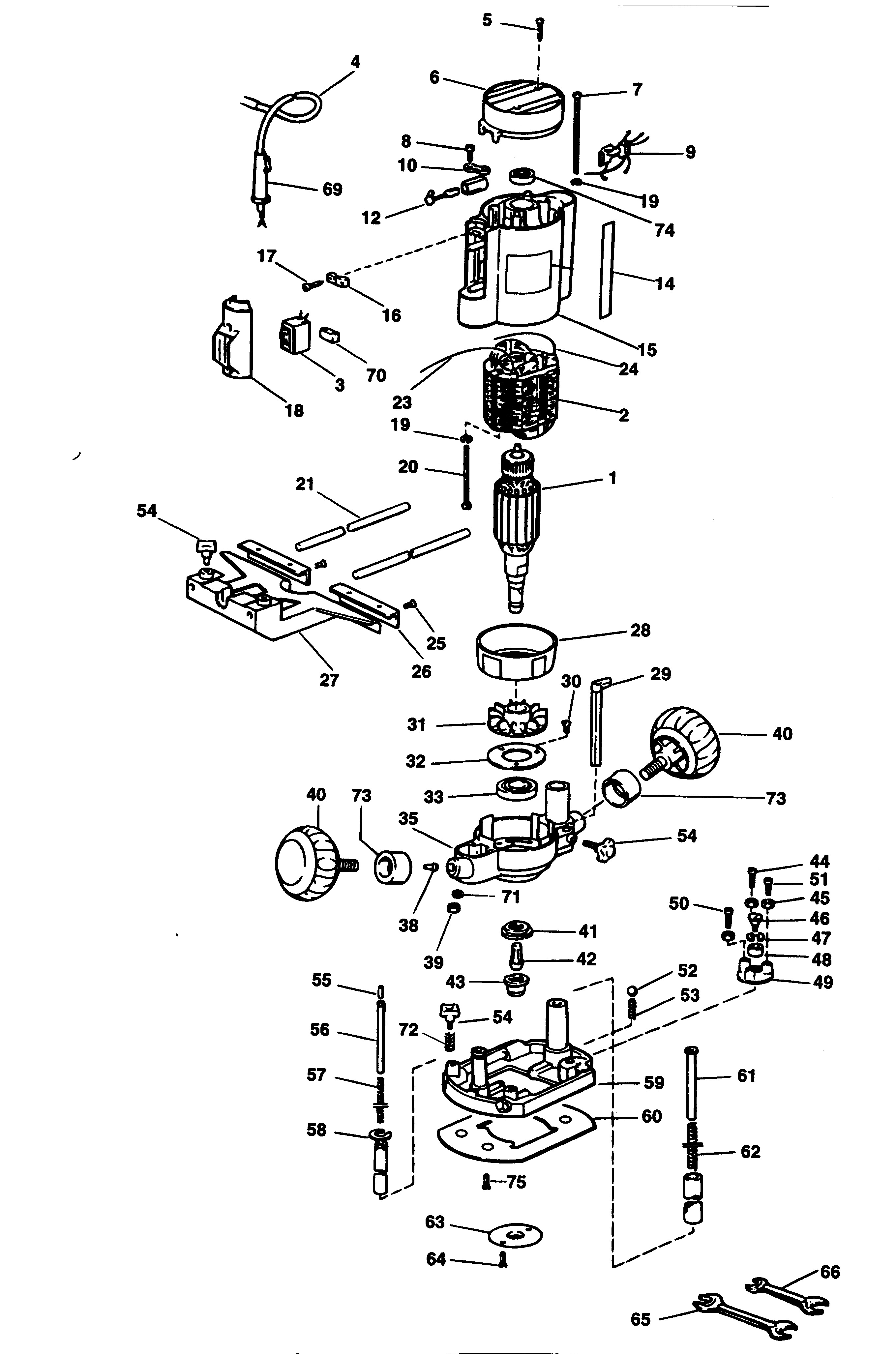

MOF179 ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868389-00 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 868107-00 | 1 | FIELD | GB | |
||
| 3 | 247536-05 | 1 | SWITCH | GB | |
||
| 4 | 179101902 | 1 | CABLE | GB | |||
| 4 | 324438-73 | 1 | CORDSET | GB | |
||
| 4 | 179101901 | 1 | CABLE | GB | |
||
| 4 | 179101904 | 1 | CABLE | GB | |||
| 4 | 179101903 | 1 | CABLE | GB | |||
| 5 | 949896-12 | 4 | SCREW | GB |  |
||
| 6 | 179120103 | 1 | COVER | GB | |||
| 7 | 179910344 | 4 | SCREW | GB | |
||
| 8 | 949896-12 | 4 | SCREW | GB | |
||
| 9 | 151121905 | 1 | CAPACITOR | GB | |||
| 10 | 868069-00 | 2 | CLAMP | GB | |
||
| 12 | 247533-11 | 2 | BRUSH & HOLDER 230V | GB | |
||
| 14 | 249278-00 | 1 | SCALE | GB | |
||
| 15 | 179120102 | 1 | HOUSING | GB | |
||
| 16 | 141162700 | 1 | CORD CLAMP | GB | |
||
| 17 | 249416-06 | 2 | SCREW | GB | |
||
| 18 | 179120205 | 1 | COVER | GB | |||
| 19 | 093820600 | 6 | WASHER LOCK | GB | |
||
| 20 | 249416-11 | 2 | SCREW | GB | |
||
| 21 | 868080-00 | 2 | ROD | GB | |
||
| 23 | 179164503 | 1 | LEAD 160MM BLUE | GB | |
||
| 25 | 248084-10 | 4 | SCREW | GB | |
||
| 26 | 249090-00 | 2 | GUIDE | GB | |
||
| 27 | 948651-00 | 1 | FENCE SA | GB | |
||
| 28 | 179120600 | 1 | BAFFLE FAN | GB | |
||
| 29 | 868523-01 | 1 | DEPTH STOP | GB | |
||
| 30 | 249417-00 | 3 | SCREW | GB | |
||
| 31 | 943054-00 | 1 | FAN | GB | |
||
| 32 | 868047-00 | 1 | PLATE | GB | |
||
| 33 | 868768-16 | 1 | BEARING | GB | |
||
| 35 | 179105100 | 1 | GEARCASE SA | GB | |
||
| 38 | 179123500 | 1 | LOCKING PIN | GB | |
||
| 39 | 249232-00 | 4 | NUT M4 | GB | |
||
| 40 | 869284-05 | 2 | HANDLE SA | GB | |
||
| 41 | 868052-00 | 1 | NUT | GB | |
||
| 43 | 326286-00 | 1 | COLLET & NUT SA | 8mm | GB | |
|
| 43 | 326286-01 | 1 | COLLET & NUT SA | 6.35mm 1/4 inch | GB | |
|
| 44 | 942931-01 | 1 | SCREW | GB | |
||
| 45 | 860083-02 | 3 | NUT | GB | |
||
| 46 | 249432-00 | 1 | SCREW | GB | |
||
| 47 | 860658-01 | 1 | WASHER | GB | |
||
| 48 | 868092-00 | 1 | WASHER | GB | |
||
| 49 | 720674-01 | 1 | TURRET | GB | |
||
| 50 | 249404-00 | 1 | SCREW | GB | |
||
| 51 | 249400-00 | 1 | SCREW | GB | |
||
| 52 | 720664-00 | 1 | BALL | GB | |
||
| 53 | 868082-00 | 1 | SPRING | GB | |
||
| 54 | 025922908 | 5 | KNOB | GB | |
||
| 55 | 096815000 | 1 | RIVET | GB | |
||
| 56 | 096815201 | 1 | ROD | GB | |
||
| 57 | 096934010 | 1 | SPRING | GB | |
||
| 58 | 943032-00 | 1 | CIRCLIP | GB | |
||
| 59 | 179103400 | 1 | BASEPLATE | GB | |
||
| 60 | 096120702 | 1 | BASE | GB | |
||
| 61 | 868566-00 | 1 | ROD | GB | |
||
| 62 | 096934007 | 1 | SPRING | GB | |
||
| 63 | 037213901 | 1 | BUSH | GB | |
||
| 64 | 249412-20 | 2 | SCREW | GB | |
||
| 65 | 941580-00 | 1 | SPANNER 13-17MM | GB | |
||
| 66 | 868078-00 | 1 | SPANNER | GB | |
||
| 66 | 868078-00 | 1 | SPANNER | GB | |
||
| 69 | 868520-00 | 1 | CORD PROTECTOR | GB | |
||
| 70 | 096120703 | 1 | GUIDE | GB | |
||
| 71 | 868048-00 | 4 | WASHER | GB | |
||
| 72 | 868082-00 | 2 | SPRING | GB | |
||
| 73 | 249108-00 | 2 | BUSH | GB | |
||
| 74 | N110358 | 1 | BEARING | GB | |
