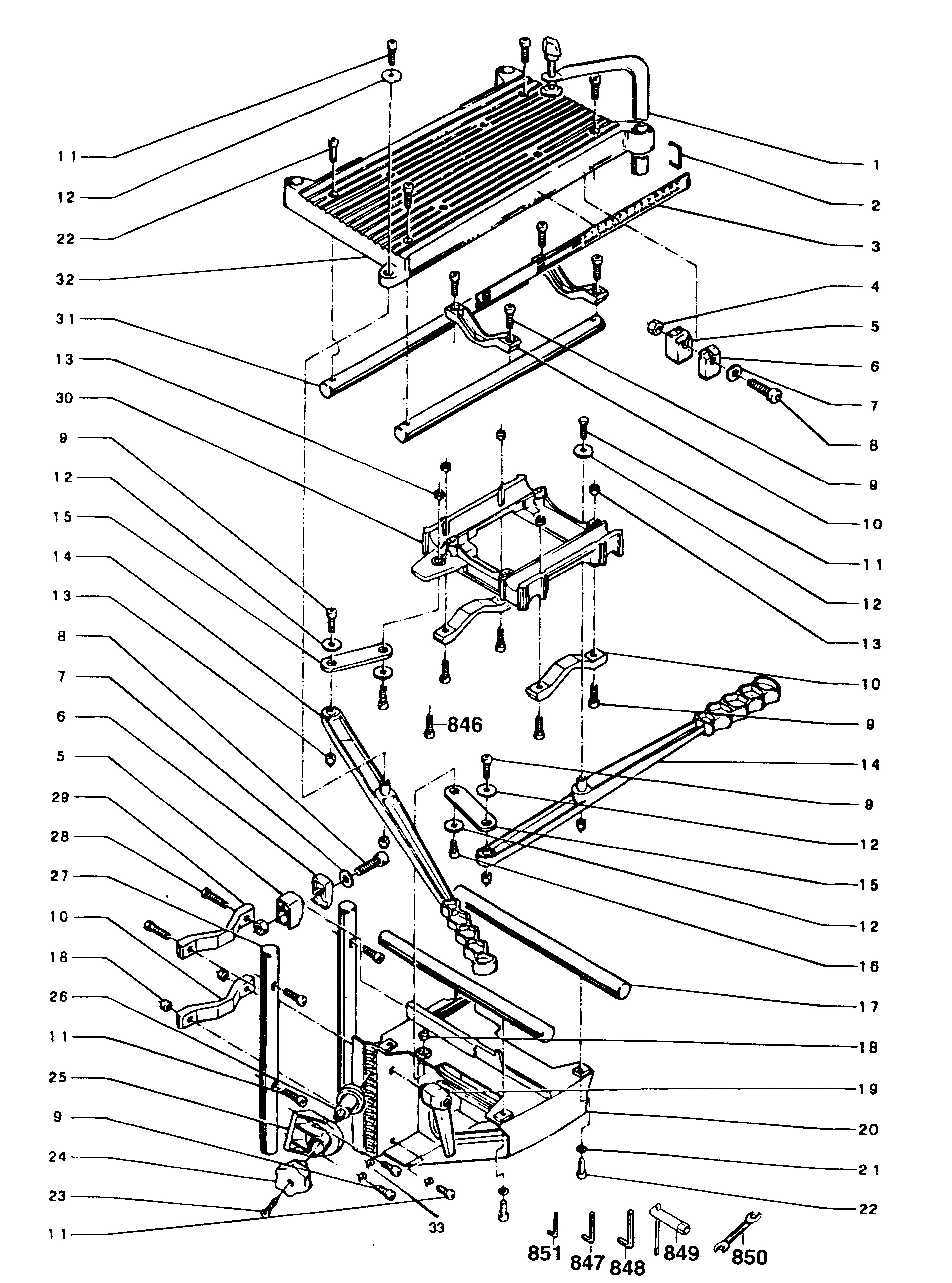

190200000 MORTISING ATTACHMENT Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860579-00 | 1 | CLAMP | DW601 | XJ |  |
|
| 1 | 860579-01 | 1 | CLAMP | E38750 | XJ | ||
| 2 | 860569 | 3 | SPRING | E38750 | XJ | ||
| 3 | 860568-02 | 1 | SCALE | E38750 | XJ | ||
| 3 | 860568-01 | 1 | SCALE | DW601 | XJ | ||
| 4 | 860083-04 | 2 | NUT | E38750 | XJ |  |
|
| 5 | 860593-00 | 2 | CLAMP | E38750 | XJ | |
|
| 6 | 860594-00 | 2 | CLAMP | E38750 | XJ | |
|
| 7 | 860073-03 | 2 | WASHER M8 | E38750 | XJ | |
|
| 8 | 860093-00 | 2 | SCREW | E38750 | XJ | |
|
| 9 | 860093-09 | 11 | SCREW | E38750 | XJ | |
|
| 10 | 860576 | 6 | BRIDGE | E38750 | XJ | ||
| 11 | 935626 | 8 | SCREW | E38750 | XJ | |
|
| 12 | 860075-01 | 5 | WASHER | E38750 | XJ | |
|
| 13 | 860092-03 | 13 | NUT M5 | E38750 | XJ | |
|
| 14 | 860599-00 | 2 | LEVER | E38750 | XJ | |
|
| 15 | 860602 | 2 | LEVER | E38750 | XJ | ||
| 16 | 860085-06 | 1 | SCREW | E38750 | XJ | |
|
| 17 | 860577-02 | 2 | COLUMN | E38750 | XJ | ||
| 18 | 860092-04 | 5 | NUT,STOP M5 | E38750 | XJ | |
|
| 19 | 861840-00 | 1 | HANDLE | DW601 | XJ | |
|
| 19 | 861840-00 | 1 | HANDLE | E38750 | XJ | |
|
| 20 | 860575 | 1 | BRACKET | E38750 | XJ | ||
| 21 | 860073-01 | 8 | WASHER | E38750 | XJ | |
|
| 22 | 860093-10 | 8 | SCREW | E38750 | XJ | |
|
| 23 | 860084-09 | 1 | SCREW | E38750 | XJ | |
|
| 24 | 860591 | 1 | KNOB | DW601 | XJ | ||
| 24 | 860591-01 | 1 | KNOB | E38750 | XJ | ||
| 25 | 860589 | 1 | SUPPORT | E38750 | XJ | ||
| 26 | 860594-00 | 1 | CLAMP | E38750 | XJ | |
|
| 27 | 860577 | 1 | COLUMN | E38750 | XJ | ||
| 28 | 860085-10 | 2 | SCREW | E38750 | XJ | |
|
| 29 | 860576-03 | 1 | BRIDGE | E38750 | XJ | |
|
| 31 | 860577-01 | 1 | COLUMN | E38750 | XJ | ||
| 32 | 860570 | 1 | TABLE | E38750 | XJ | ||
| 33 | 860078-01 | 2 | WASHER | E38750 | XJ | ||
| 846 | 860093-16 | 1 | SCREW | DW601 | XJ | |
|
| 847 | 949882-01 | 1 | WRENCH 4 MM | XJ | |
||
| 848 | 860098-04 | 1 | WRENCH 6 MM | XJ | |
||
| 849 | 860584 | 1 | SPANNER TUBE | XJ | |||
| 850 | 860586 | 1 | SPANNER CHUCK | XJ | |||
| 851 | 943271-00 | 1 | HEX KEY 2.5 MM | XJ | |
