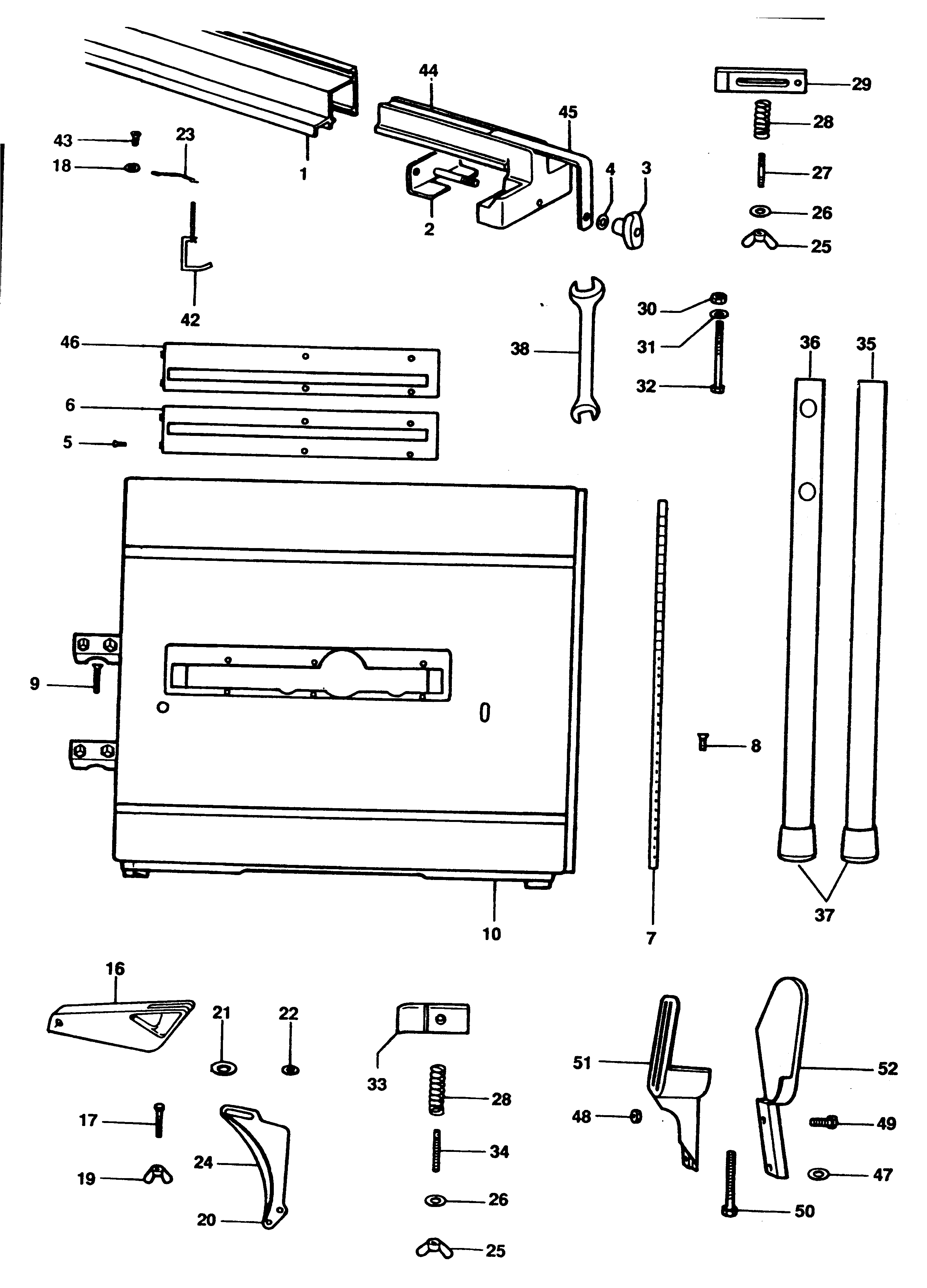

055003425 SAW TABLE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 055237702 | 1 | GUIDE | XJ |  |
||
| 2 | 055203500 | 1 | CLAMP SA | XJ | |
||
| 3 | 941756-00 | 1 | KNOB | XJ |  |
||
| 4 | 860073-03 | 1 | WASHER M8 | XJ | |
||
| 5 | 013811000 | 5 | SCREW | XJ | |
||
| 6 | 941728-01 | 1 | INSERT | E35000 | XJ | |
|
| 6 | 941728-01 | 1 | INSERT | E35005 | XJ | |
|
| 6 | 941728-01 | 1 | INSERT | ELU550 | XJ | |
|
| 8 | 085811000 | 1 | SCREW | XJ | |
||
| 9 | 860538-04 | 1 | SCREW | XJ | |
||
| 10 | 055235102 | 1 | TABLE | XJ | |
||
| 16 | N162669 | 1 | GUARD UPPER | XJ | |
||
| 17 | 155234700 | 1 | SCREW | XJ | |
||
| 18 | 860073-00 | 1 | WASHER | XJ | |
||
| 19 | 249225-00 | 1 | NUT WING | XJ | |
||
| 20 | 182232400 | 1 | RIVING KNIFE | XJ | |
||
| 21 | 013931405 | 1 | SPRING | XJ | |
||
| 22 | 860074-02 | 1 | WASHER | XJ | |
||
| 23 | 055983100 | 1 | CABLE | XJ | |
||
| 24 | 065125701 | 1 | RIVING KNIFE | ELU550 | XJ | |
|
| 24 | 065125701 | 1 | RIVING KNIFE | E35000 | XJ | |
|
| 24 | 065125701 | 1 | RIVING KNIFE | ELU555 | XJ | |
|
| 25 | 011822001 | 4 | NUT WING | XJ | |
||
| 26 | 941602-00 | 4 | WASHER | XJ | |
||
| 27 | 055812900 | 2 | STUD | XJ | |
||
| 28 | 055934014 | 4 | SPRING | XJ | |
||
| 29 | 055231000 | 3 | CLAMP | XJ | |
||
| 30 | 249411-10 | 5 | NUT | XJ | |
||
| 31 | 742172 | 9 | WASHER | XJ | |
||
| 32 | 860085-02 | 4 | SCREW | XJ | |
||
| 33 | 470231000 | 1 | CLAMP | XJ | |
||
| 34 | 860088-19 | 1 | STUD | XJ | |
||
| 35 | 195230 | 3 | LEG SA | XJ | |
||
| 36 | 195231 | 1 | LEG SA | XJ | |
||
| 37 | 941579-01 | 1 | FOOT | XJ | |
||
| 38 | 941580-00 | 1 | SPANNER 13-17MM | XJ | |
||
| 42 | 941769-01 | 1 | CLIP | XJ | |
||
| 43 | 860084-11 | 1 | SCREW | XJ | |
||
| 45 | 171234501 | 1 | CLAMPING BAR | XJ | |
||
| 46 | 941730-01 | 1 | INSERT | E35005 | XJ | |
|
| 46 | 941730-01 | 1 | INSERT | E35000 | XJ | |
|
| 46 | 941730-01 | 1 | INSERT | ELU550 | XJ | |
|
| 47 | 860073-08 | 1 | WASHER | E35005 | XJ | |
|
| 47 | 860073-08 | 1 | WASHER | ELU555 | XJ | |
|
| 48 | 860083-12 | 1 | NUT M6 | E35005 | XJ | |
|
| 48 | 860083-12 | 1 | NUT M6 | ELU555 | XJ | |
|
| 49 | 003811102 | 1 | SCREW | E35005 | XJ | |
|
| 49 | 003811102 | 1 | SCREW | ELU555 | XJ | |
|
| 50 | 942043-00 | 1 | SCREW | E35005 | XJ | |
|
| 50 | 942043-00 | 1 | SCREW | ELU555 | XJ | |
|
| 51 | 055239401 | 1 | COVER | E35005 | XJ | |
|
| 52 | 055239400 | 1 | COVER | E35005 | XJ | |
