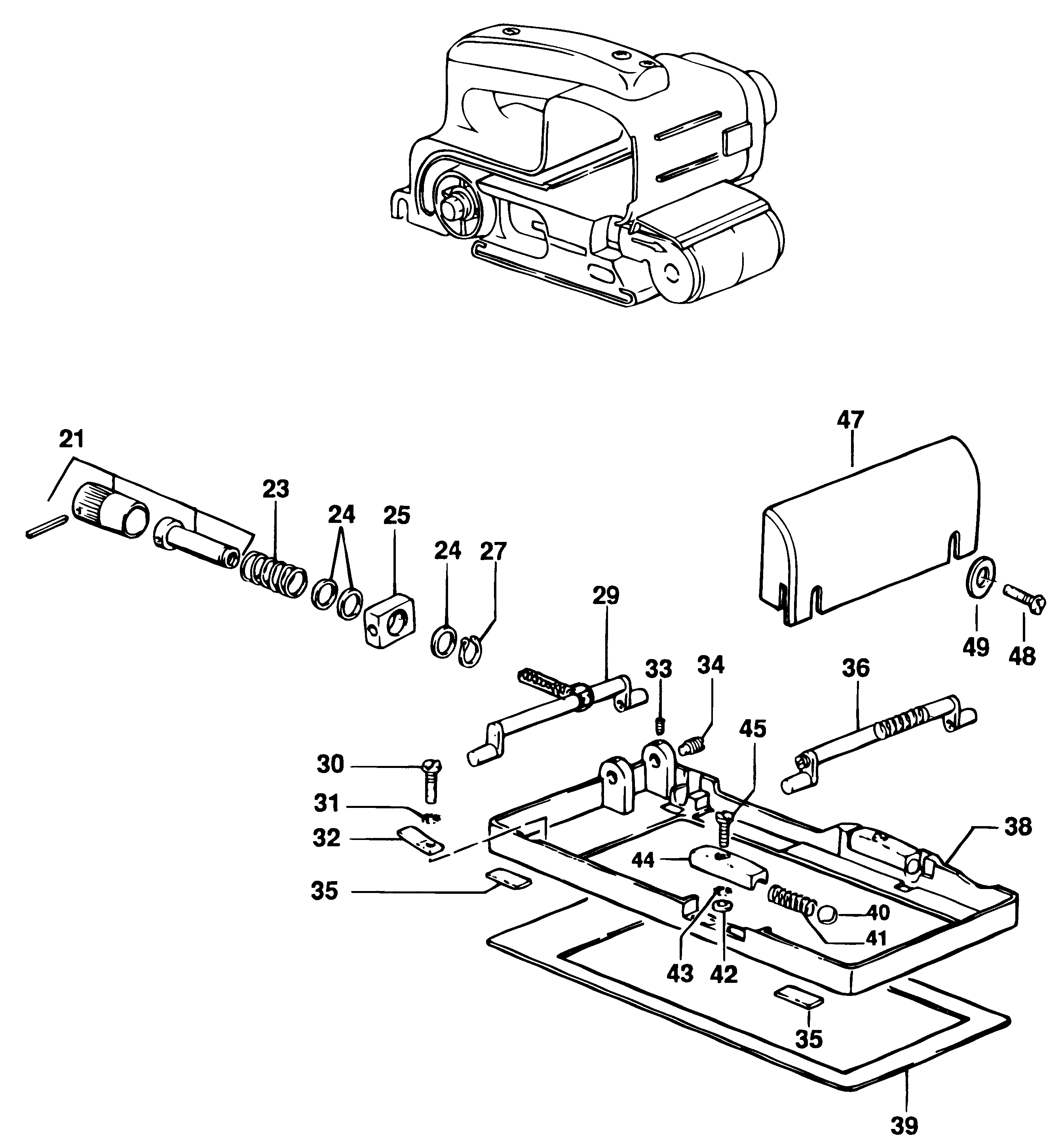

157206501 SANDING FRAME Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 21 | 090250900 | 1 | ADJUSTER | XJ |  |
||
| 23 | 050931076 | 1 | SPRING | XJ | |
||
| 24 | 050930136 | 3 | WASHER | XJ | |
||
| 25 | 050257900 | 1 | BRUSH | XJ | |
||
| 27 | 860079-03 | 1 | CIRCLIP | XJ |  |
||
| 29 | 157254001 | 1 | SHAFT | XJ | |
||
| 30 | 249424-01 | 2 | SCREW | XJ | |
||
| 31 | 725163 | 2 | WASHER | XJ | |
||
| 32 | 050230000 | 2 | PLATE | XJ | |
||
| 33 | 050814500 | 1 | SCREW | XJ | |
||
| 34 | 021814400 | 2 | SCREW | XJ | |
||
| 35 | 157118901 | 2 | SPACER | XJ | |
||
| 36 | 157254000 | 1 | ARM CRANKED | XJ | |
||
| 38 | 157258200 | 1 | FRAME | E36050 TYPE 1 | XJ | |
|
| 38 | 157258201 | 1 | FRAME | E36050 TYPE 2 | XJ | |
|
| 38 | 157258203 | 1 | FRAME | E36070 | XJ | |
|
| 39 | 157252200 | 1 | PLATE | E36050 TYPE 1 | XJ | |
|
| 39 | 157252200 | 1 | PLATE | E36050 TYPE 2 | XJ | |
|
| 39 | 157252201 | 1 | PLATE | E36070 | XJ | |
|
| 40 | 008831000 | 2 | BALL STEEL D10 | XJ | |
||
| 41 | 157934049 | 2 | SPRING | XJ | |
||
| 42 | 860073-01 | 2 | WASHER | XJ | |
||
| 43 | 761035-00 | 2 | WASHER | XJ | |
||
| 44 | 157251800 | 2 | CLAMP | XJ | |
||
| 45 | 249424-21 | 2 | SCREW | XJ | |
||
| 47 | 324147-00 | 1 | COVER | E36050 TYPE 2 | XJ | |
|
| 48 | 249424-01 | 2 | SCREW | E36050 TYPE 2 | XJ | |
|
| 49 | 725163 | 2 | WASHER | E36050 TYPE 2 | XJ | |
|
| 102 | 574370-11 | 1 | ARMATURE 115V | XJ | |
||
| 103 | 651069-00 | 1 | SWITCH W/LEADS | XJ | |||
| 104 | N031655 | 2 | BRUSH & SPRING | NPP | XJ | ||
| 110 | 489113-00 | 1 | BASE PLATE | XJ | |||
| 111 | 1005896-00 | 1 | SIDE HANDLE | XJ | |
||
| 113 | N110358 | 1 | BEARING | XJ | |
||
| 114 | 582717-00 | 1 | WASHER | XJ | |
||
| 115 | 632180-01 | 1 | FIELDCASE | XJ | |
||
| 116 | 5102586-04 | 1 | SWITCH SA | XJ | |||
| 118 | N218833 | 4 | INNER FLANGE | XJ | |||
| 119 | 623571-00 | 1 | FIELD CASE | XJ | |||
| 123 | N137249 | 1 | MACHINE SCREW | XJ | |||
| 124 | N079011 | 1 | BEARING | XJ | |||
| 126 | 571147-01 | 1 | CLAMSHELL PAIR | XJ | |
||
| 127 | N450900 | 1 | PIN | 3x40 | XJ | |
|
| 128 | 386527-04 | 1 | GUARD ASSY. | XJ | |||
| 129 | 392697-00 | 1 | NP:900.277040 | XJ | |||
| 133 | DW4811 | 1 | BLADE | XJ | |||
| 136 | 90511443 | 2 | INSERT | XJ | |
||
| 138 | 618366-00 | 1 | THRUST WASHER | XJ | |||
| 139 | 90568735 | 1 | BATTERY PACK 14.4V | NiCd | TYPE 1 | XJ | |
| 140 | 9R204208 | 1 | BELT HOOK | XJ | |||
| 141 | N491979 | 1 | PISTON SA | XJ | |
||
| 142 | N375339 | 2 | PINION | 10T | XJ | |
|
| 146 | 488837-00 | 1 | WARNING LABEL | XJ | |||
| 147 | 478937-00 | 4 | LABEL | BRAND | XJ | ||
| 148 | N660116 | 2 | SHAFT SA | PKGD N462742 | XJ | |
|
| 900 | 1004709-00 | 1 | PRESSURE GAUGE | XJ | |
