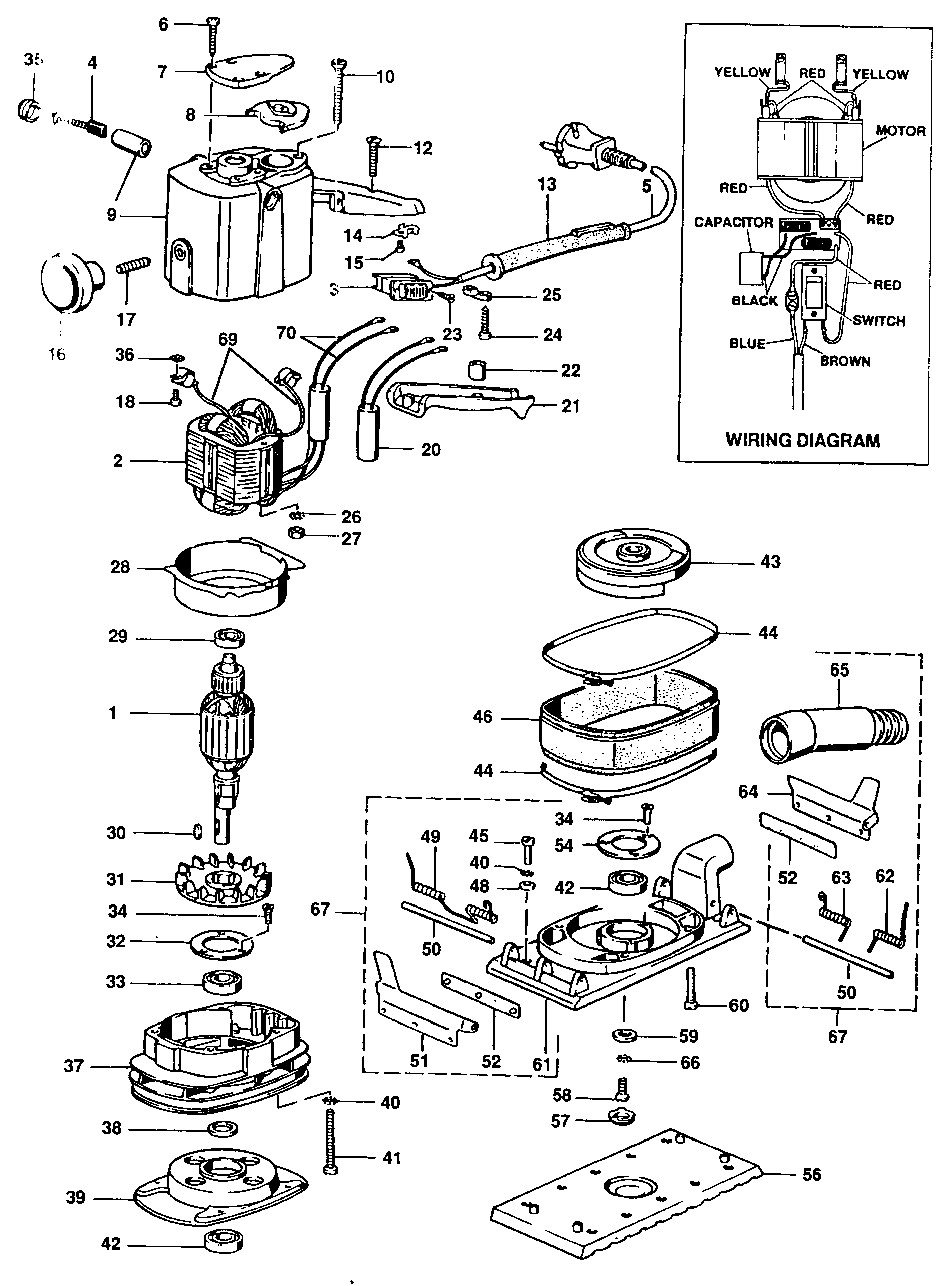

MVS47A ORBITAL SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 047100208 | 1 | ARMATURE 110V | 115 VOLT | XJ |  |
|
| 1 | 047100206 | 1 | ARMATURE 220V | 220 VOLT | XJ | |
|
| 2 | 047102103 | 1 | FIELD 220V | 220 VOLT | XJ | |
|
| 2 | 249349-00 | 1 | STATOR 115V | 115 VOLT | XJ | |
|
| 3 | N566709 | 1 | SWITCH | TYPE 02 | XJ |  |
|
| 3 | N566709 | 1 | SWITCH | TYPE 03 | XJ | |
|
| 3 | 036160300 | 1 | SWITCH | TYPE 01 | XJ | |
|
| 4 | 025121502 | 2 | BRUSH 115V | 115 VOLT | XJ | |
|
| 4 | 025121501 | 2 | BRUSH | 220 VOLT | XJ | |
|
| 5 | 325612-01 | 1 | CORDSET (M/PLUG) | GB 240V | XJ | |
|
| 5 | 248488-11 | 1 | CORDSET (M/PLUG) | GB 115V | XJ | |
|
| 5 | 868068-00 | 1 | CABLE | M | XJ | |
|
| 6 | 247696-00 | 4 | SCREW | XJ | |
||
| 7 | 036151904 | 1 | COVER | XJ | |
||
| 8 | 047120600 | 1 | COVER | XJ | |
||
| 9 | 247606-10 | 1 | HOUSING | TYPE 03 | XJ | |
|
| 9 | 047120103 | 1 | HOUSING | TYPE 01 | XJ | |
|
| 9 | 247606-00 | 1 | FIELDCASE SA | TYPE 02 | XJ | |
|
| 12 | 036811600 | 1 | SCREW | XJ | |
||
| 13 | 320785 | 1 | CORD PROTECTOR | TYPE 03 | XJ | |
|
| 13 | 720703-00 | 1 | PROTECTOR | TYPE 01 | XJ | |
|
| 13 | 720703-00 | 1 | PROTECTOR | TYPE 02 | XJ | |
|
| 14 | 025160000 | 1 | PLATE | TYPE 01 | XJ | |
|
| 15 | 249424-00 | 2 | SCREW | TYPE 01 | XJ | |
|
| 16 | 941609-00 | 1 | KNOB | XJ | |
||
| 17 | 760242-00 | 1 | SCREW | M8 x 30 | XJ | |
|
| 18 | 025811100 | 2 | SCREW | XJ | |
||
| 20 | 320842-03 | 1 | CAPACITOR | 220 VOLT | XJ | |
|
| 20 | 324624-00 | 1 | CAPACITOR | 115 VOLT | XJ | |
|
| 21 | 324592-00 | 1 | COVER | TYPE 03 | XJ | |
|
| 21 | 249524-00 | 1 | HOUSING REPAIR KIT | TYPE 02 | XJ | |
|
| 21 | 249524-00 | 1 | HOUSING REPAIR KIT | TYPE 01 | XJ | |
|
| 22 | 249524-00 | 1 | HOUSING REPAIR KIT | TYPE 01 | XJ | |
|
| 23 | 047811000 | 2 | SCREW | TYPE 01 | XJ | |
|
| 24 | 249424-01 | 2 | SCREW | XJ | |
||
| 25 | 040162700 | 1 | CABLE CLAMP | TYPE 01 | XJ | |
|
| 25 | 040162700 | 1 | CABLE CLAMP | TYPE 02 | XJ | |
|
| 25 | 910556 | 1 | CABLE CLAMP | TYPE 03 | XJ | |
|
| 26 | 093820600 | 2 | WASHER LOCK | XJ | |
||
| 27 | 249232-00 | 2 | NUT M4 | XJ | |
||
| 28 | 047120901 | 1 | COVER | XJ | |
||
| 29 | 025830002 | 1 | BEARING 609ZZ | XJ | |
||
| 30 | 021827000 | 1 | KEY | XJ | |
||
| 31 | 047130501 | 1 | FAN | XJ | |
||
| 32 | 868047-00 | 1 | PLATE | XJ | |
||
| 33 | 868768-16 | 1 | BEARING | XJ | |
||
| 34 | 249412-13 | 6 | SCREW | XJ | |
||
| 36 | 013822600 | 2 | NUT | XJ | |
||
| 37 | 249359-00 | 1 | HOUSING GEAR | XJ | |
||
| 38 | 047110704 | 1 | SPACER | XJ | |
||
| 39 | 047120202 | 1 | PLATE | XJ | |
||
| 40 | 725163 | 8 | WASHER | XJ | |
||
| 41 | 860089-14 | 4 | SCREW | XJ | |
||
| 42 | 247571-00 | 2 | BEARING | XJ | |
||
| 43 | 047122702 | 1 | COUNTERWEIGHT | XJ | |
||
| 44 | 249325-00 | 2 | CLIP SA | XJ | |
||
| 45 | 860089-25 | 4 | SCREW | XJ | |
||
| 46 | 326351-01 | 1 | SKIRT | XJ | |
||
| 48 | 941633-00 | 4 | WASHER | XJ | |
||
| 49 | 047930908 | 1 | SPRING | XJ | |||
| 50 | 017810300 | 2 | PIN | XJ | |
||
| 51 | 017110800 | 1 | LEVER | XJ | |
||
| 52 | 017111700 | 2 | PLATE | XJ | |
||
| 54 | 047114702 | 1 | PLATE | XJ | |
||
| 57 | 047118500 | 1 | CAP | XJ | |
||
| 59 | 047110701 | 1 | SPACE | XJ | |
||
| 60 | 249424-06 | 4 | SCREW | XJ | |
||
| 61 | 091111704 | 1 | BASEPLATE | XJ | |
||
| 62 | 091930911 | 1 | SPRING | XJ | |
||
| 63 | 091930912 | 1 | SPRING | XJ | |
||
| 64 | 091110800 | 1 | LEVER | XJ | |
||
| 65 | 091111400 | 1 | TUBE EXTRACTION | XJ | |
||
| 66 | 047820600 | 1 | WASHER LOCK | XJ | |
||
| 67 | 091101502 | 1 | PLATE SA | XJ | |
||
| 69 | 047164503 | 2 | LEAD 80MM YELLOW | XJ | |
||
| 70 | 047164502 | 2 | LEAD 200MM RED | XJ | |
