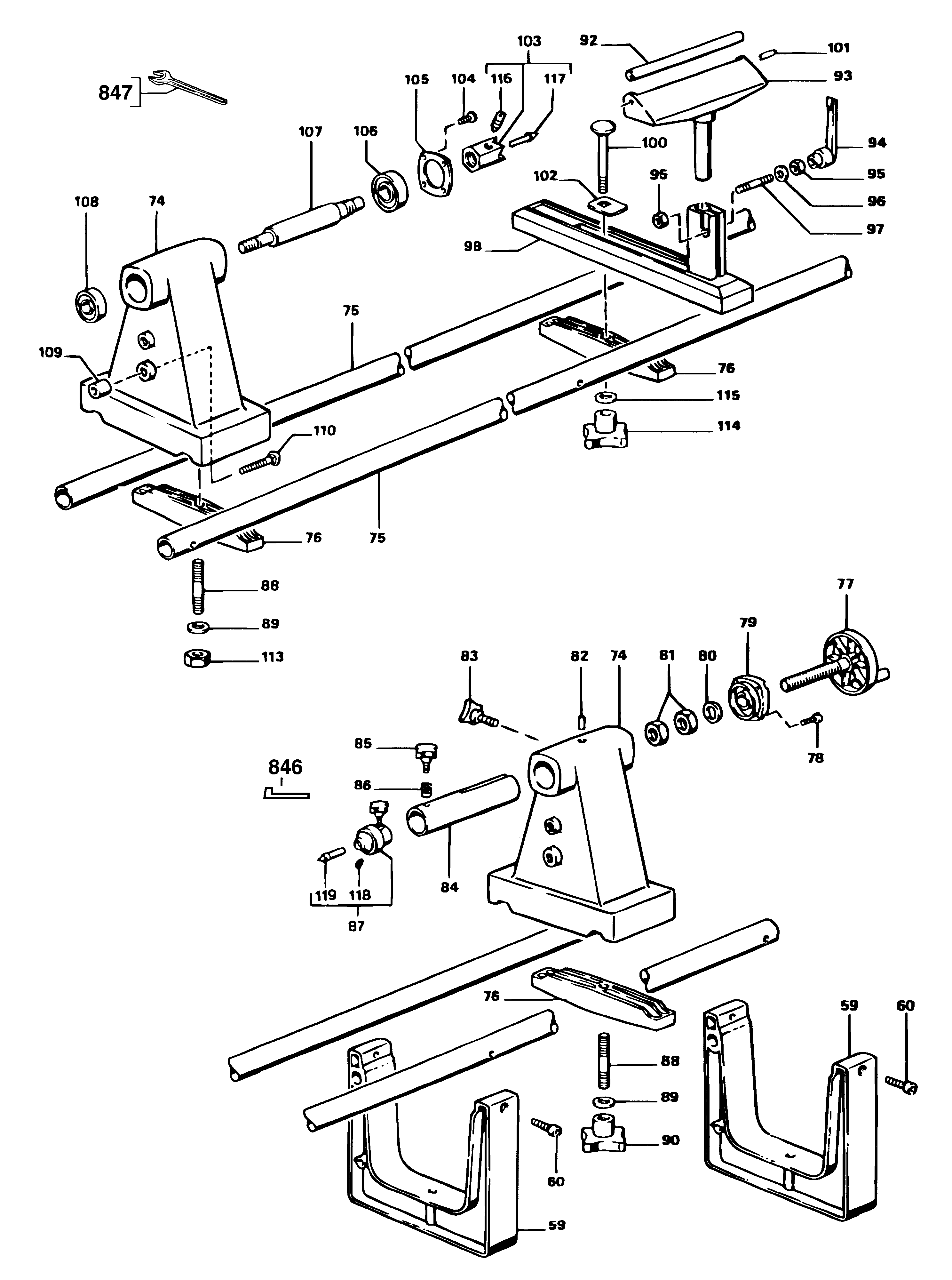

DB180-----B LATHE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 74 | 180112700 | 2 | HOUSING | XJ |  |
||
| 75 | 180111400 | 2 | TUBE | XJ | |
||
| 76 | 180117400 | 3 | BRACKET | XJ | |
||
| 77 | 180111602 | 1 | HANDLE | XJ | |
||
| 78 | 760996-00 | 4 | SCREW.TEMP | XJ | |
||
| 79 | 180118600 | 1 | HOUSING | XJ | |
||
| 80 | 072930156 | 1 | WASHER | XJ | |
||
| 82 | 011810000 | 1 | PIN | XJ | |
||
| 83 | 942787-01 | 2 | KNOB | XJ | |
||
| 84 | 180117602 | 1 | SPINDLE | XJ | |
||
| 85 | 941536-01 | 1 | KNOB | XJ | |
||
| 86 | 180814300 | 1 | STUD | XJ | |
||
| 88 | 180812801 | 4 | STUD | XJ | |
||
| 89 | 860073-05 | 4 | WASHER | XJ |  |
||
| 90 | 941564-01 | 2 | HANDLE | XJ | |
||
| 92 | 180110500 | 1 | ROD | XJ | |
||
| 93 | 180116000 | 1 | REST | XJ | |
||
| 94 | 861841-01 | 1 | LEVER | XJ | |
||
| 95 | 860083-14 | 1 | NUT | XJ | |
||
| 96 | 742172 | 1 | WASHER | XJ | |
||
| 97 | 930775-00 | 1 | SCREW | XJ | |
||
| 98 | 180116501 | 1 | HOLDER | XJ | |
||
| 100 | 180812500 | 1 | SCREW | XJ | |
||
| 101 | 761065-00 | 2 | PIN | XJ | |
||
| 102 | 942700-00 | 1 | PLATE | XJ | |
||
| 103 | 180104501 | 1 | DRIVE CENTRE | XJ | |
||
| 104 | 720685-00 | 4 | SCREW.TEMP | XJ | |
||
| 105 | 180114701 | 1 | PLATE | XJ | |
||
| 106 | 860155-08 | 1 | BEARING | XJ | |
||
| 107 | 180111500 | 1 | SPINDLE | XJ | |
||
| 108 | 861721-01 | 1 | BEARING | XJ | |
||
| 109 | 180110700 | 2 | SPACER | XJ | |
||
| 110 | 911393 | 1 | SCREW | XJ | |
||
| 113 | 761225-02 | 2 | NUT | XJ | |
||
| 114 | 941564-01 | 1 | HANDLE | XJ | |
||
| 115 | 860073-05 | 1 | WASHER | XJ | |
||
| 116 | 073814800 | 1 | SCREW | XJ | |
||
| 117 | 180114507 | 1 | CENTRE | XJ | |
||
| 118 | 073814800 | 1 | SCREW | XJ | |
||
| 119 | 180114508 | 1 | CENTRE | XJ | |
||
| 124 | 071273600 | 1 | PLATE | XJ | |
||
| 125 | 949876-04 | 1 | WASHER | XJ | |
||
| 847 | 939948-00 | 1 | SPANNER | XJ | |
