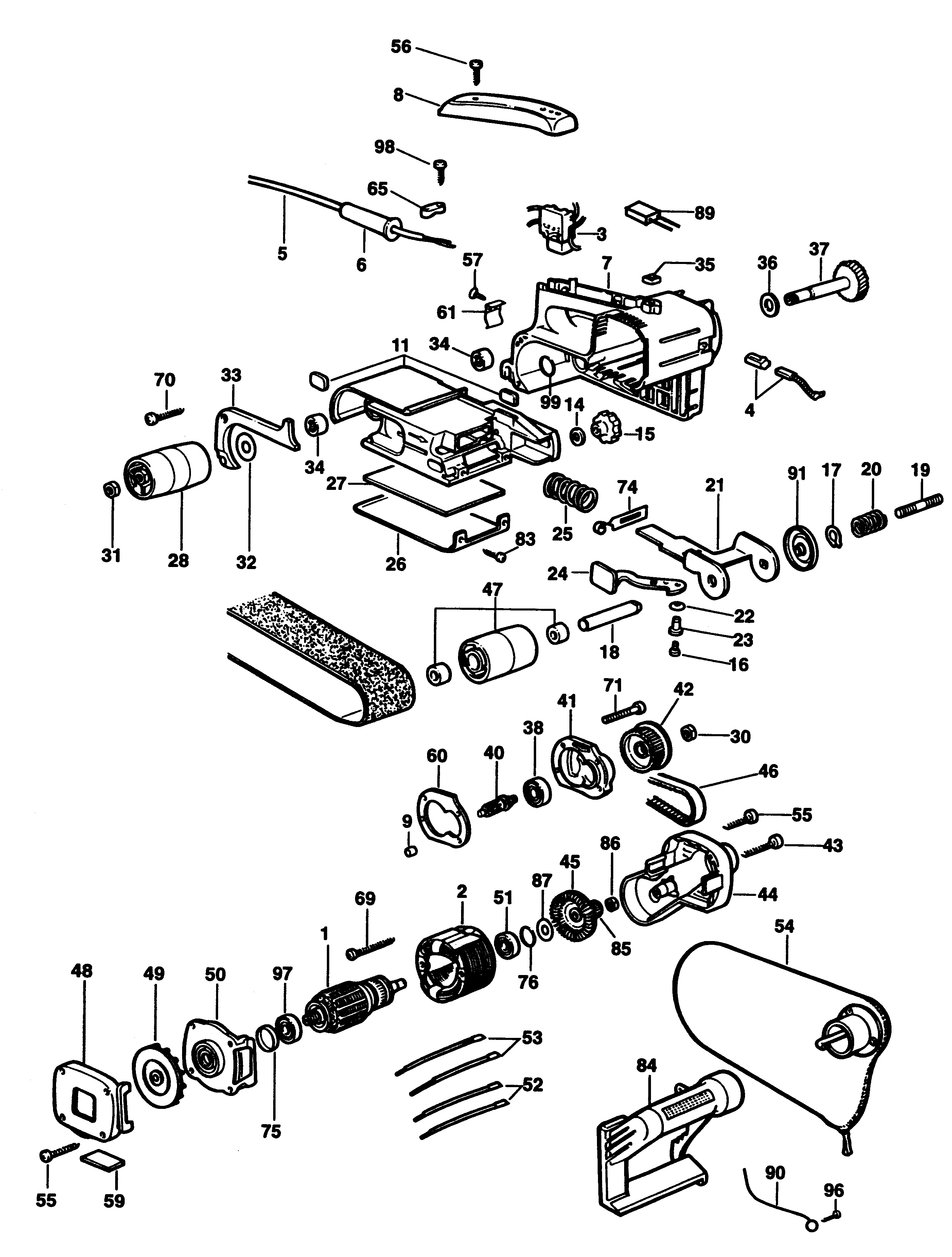

MHB158 BELT SANDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 248420-00 | 1 | ARMATURE 220V | GB |  |
||
| 2 | 157102100 | 1 | STATOR SA 220V | GB | |
||
| 3 | 249031-00 | 1 | SWITCH | GB | |
||
| 4 | 247533-11 | 2 | BRUSH & HOLDER 230V | GB |  |
||
| 5 | 379092 | 1 | CORDSET | GB | |
||
| 6 | 320785 | 1 | CORD PROTECTOR | GB | |
||
| 7 | 324595-02 | 1 | FIELDCASE | Yellow | GB | |
|
| 8 | 324593-02 | 1 | COVER | Yellow | GB | |
|
| 9 | 330004-19 | 1 | BEARING | GB | |
||
| 11 | 248479-00 | 1 | HOUSING REPAIR KIT | GB | |
||
| 14 | 249223-00 | 1 | WASHER M8 | GB | |
||
| 15 | 248428-00 | 1 | KNOB | GB | |
||
| 16 | 157813400 | 1 | SCREW | GB | |
||
| 17 | 860079-03 | 1 | CIRCLIP | GB | |
||
| 18 | 157152601 | 1 | SPINDLE | GB | |
||
| 19 | 249122-00 | 1 | SCREW | GB | |
||
| 20 | 157934045 | 1 | SPRING | GB | |
||
| 21 | 249237-00 | 1 | FORK | GB | |
||
| 22 | 760261-00 | 1 | WASHER | GB | |
||
| 23 | 157152300 | 1 | SPACER | GB | |
||
| 24 | 157110800 | 1 | YOKE | GB | |
||
| 25 | 157934046 | 1 | SPRING | GB | |
||
| 26 | 325024-00 | 1 | PLATE | GB | |
||
| 27 | 157111700 | 1 | PLATE | GB | |
||
| 28 | 249380-00 | 1 | ROLLER | GB | |
||
| 30 | 248426-00 | 1 | NUT | GB | |
||
| 31 | 249232-40 | 1 | NUT | GB | |
||
| 32 | 180980044 | 1 | WASHER | GB | |
||
| 33 | 248423-00 | 1 | COVER | GB | |
||
| 34 | 050980118 | 2 | BEARING | GB | |
||
| 35 | 061822500 | 1 | NUT | GB | |
||
| 36 | 157980057 | 1 | WASHER M8 | GB | |
||
| 37 | 249381-00 | 1 | SPINDLE & GEAR | GB | |
||
| 38 | N130916 | 1 | BEARING | GB | |
||
| 40 | 325021-00 | 1 | PINION | GB | |
||
| 41 | 157120203 | 1 | COVER RH | GB | |
||
| 42 | 325017-00 | 1 | PULLEY | GB | |
||
| 43 | 249416-04 | 1 | SCREW | GB | |
||
| 44 | 248424-00 | 1 | COVER | Black | GB | |
|
| 45 | 325016-00 | 1 | FAN | GB | |
||
| 46 | 325018-00 | 1 | BELT | GB | |
||
| 47 | 157121405 | 1 | ROLLER SA | GB | |
||
| 48 | 248421-05 | 1 | COVER | GB | |
||
| 49 | 325026-00 | 1 | FAN | GB | |
||
| 50 | 248422-05 | 1 | COVER | GB | |
||
| 51 | 157830001 | 1 | BEARING | GB | |
||
| 52 | 157164500 | 1 | LEAD 245MM RED | GB | |
||
| 53 | 157164501 | 2 | LEAD 80MM YELLOW | GB | |
||
| 54 | 248305-01 | 1 | DUST BAG SA | GB | |
||
| 55 | 949896-12 | 7 | SCREW | GB | |
||
| 56 | 249437-00 | 3 | SCREW | GB | |
||
| 57 | 247613-05 | 2 | SCREW | GB | |
||
| 59 | 157118902 | 1 | STONE | GB | |
||
| 60 | 157970316 | 1 | GASKET | GB | |
||
| 61 | 157930705 | 1 | SPRING | GB | |
||
| 65 | 379684 | 1 | CABLE CLAMP | GB | |
||
| 69 | 911442 | 2 | RETAINER | GB | |
||
| 70 | 760978-01 | 2 | SCREW | GB | |
||
| 71 | 249416-03 | 4 | SCREW | GB | |
||
| 74 | 325023-00 | 1 | SPRING | GB | |
||
| 75 | 247600-00 | 1 | GASKET | GB | |
||
| 76 | 247601-00 | 1 | GASKET | GB | |
||
| 83 | 249415-00 | 2 | SCREW | GB | |
||
| 84 | 325025-05 | 1 | SUPPORT | GB | |
||
| 85 | 325019-00 | 1 | PULLEY | GB | |
||
| 86 | 248354-00 | 1 | NUT | GB | |
||
| 87 | 247650-00 | 1 | WASHER | GB | |
||
| 89 | 156121902 | 1 | CAPACITOR | GB | |
||
| 90 | 248303-00 | 1 | LEAD | GB | |
||
| 91 | 325022-00 | 1 | WASHER SPECIAL | GB | |
||
| 96 | 249416-06 | 1 | SCREW | GB | |
||
| 97 | N130916 | 1 | BEARING | GB | |
||
| 98 | 249437-01 | 2 | SCREW | GB | |
||
| 99 | 249378-00 | 1 | O RING | GB | |
