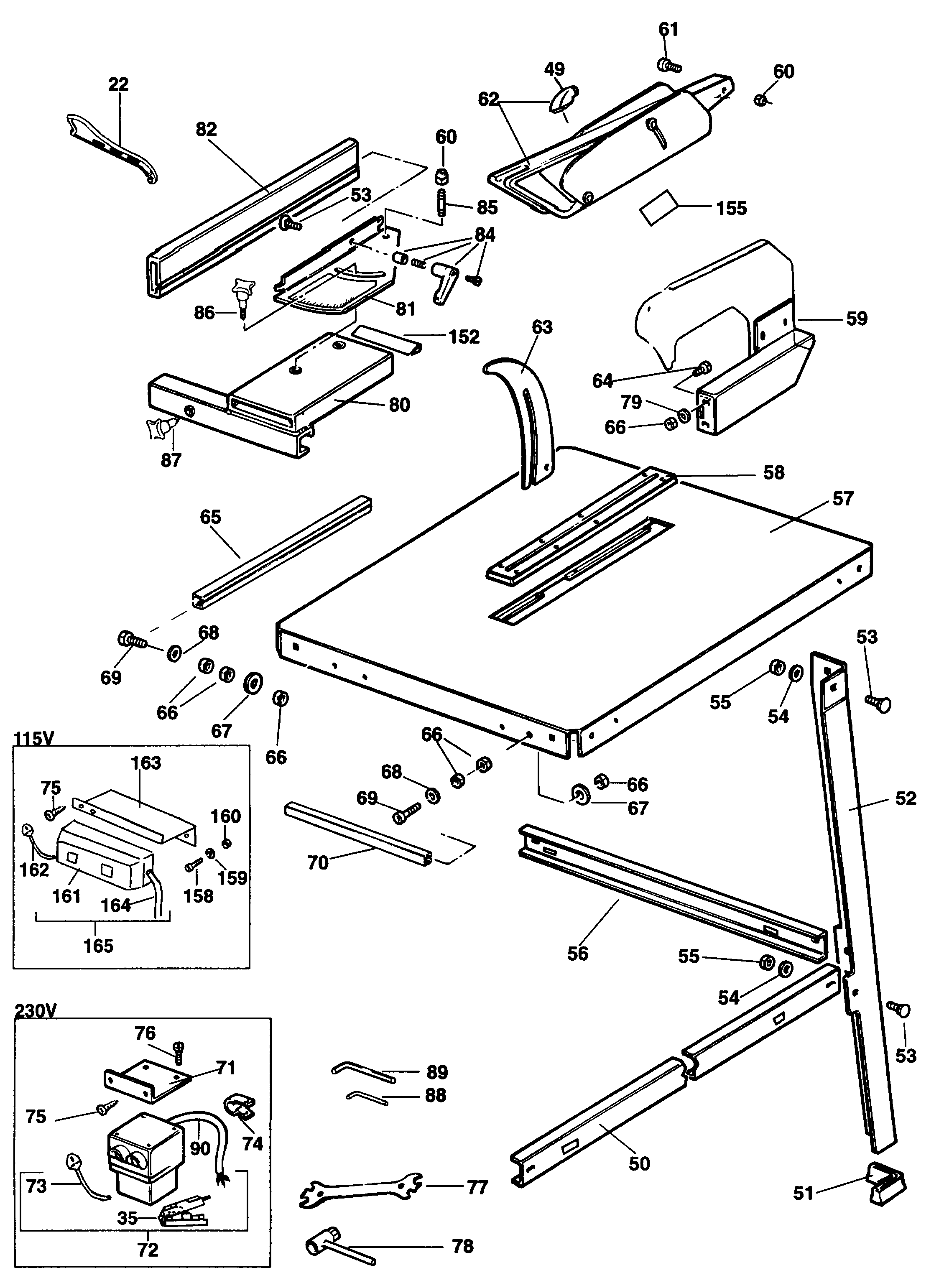

ETS3151 SITE SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868496-01 | 1 | ROTOR SA | GB |  |
||
| 2 | 868393-00 | 1 | STATOR SA 115V | GB 115V | GB | |
|
| 2 | 868393-01 | 1 | STATOR SA 230V | GB | |
||
| 3 | 860083-05 | 1 | NUT RH | GB |  |
||
| 4 | 860074-04 | 1 | WASHER | GB | |
||
| 5 | 944360-00 | 1 | PLATE | GB | |
||
| 6 | 944359-00 | 1 | PLATE | GB | |
||
| 7 | 944354-00 | 1 | HOUSING | GB | |||
| 8 | 860301-15 | 1 | SCREW | GB | |
||
| 9 | 868768-10 | 1 | BEARING | GB | |
||
| 10 | 860806-01 | 1 | RING | GB | |
||
| 11 | 942490-00 | 1 | BUSH | GB | |
||
| 12 | 860718-00 | 2 | SEAL | GB | |
||
| 13 | 860318-00 | 1 | KEY | GB | |
||
| 14 | 868768-07 | 1 | BEARING | GB | |
||
| 15 | 860080-02 | 1 | RING | GB | |
||
| 16 | 861863-00 | 1 | END CAP SA | GB | |
||
| 17 | 945841-00 | 1 | FAN | GB | |
||
| 18 | 863112-00 | 1 | CAP | GB | |
||
| 19 | 860687-04 | 1 | END CAP | GB | |
||
| 20 | 860094-01 | 2 | SCREW | GB | |
||
| 21 | 860446-00 | 4 | ROD | GB | |
||
| 22 | 860610-01 | 1 | PUSHROD | GB | |
||
| 23 | 944653-00 | 1 | GROMMET | GB | |
||
| 24 | 944654-00 | 1 | RETAINER | GB | |
||
| 25 | 944590-00 | 1 | NUT | GB | |
||
| 26 | 944652-00 | 1 | GROMMET | GB | |
||
| 27 | 860094-00 | 1 | SCREW.TEMP | GB | |
||
| 28 | 944650-00 | 1 | WASHER SPRING | GB | |
||
| 29 | 860094-01 | 1 | SCREW | GB | |
||
| 30 | 860540-00 | 1 | CONNECTOR | GB | |
||
| 31 | 860708-00 | 1 | GASKET | GB | |
||
| 32 | 944455-00 | 1 | CONDENSOR | GB | |
||
| 33 | 860702-00 | 1 | HOUSING | GB | |
||
| 34 | 860060-01 | 2 | RIVET | GB | |
||
| 35 | N377168 | 1 | SWITCH COVER | GB | |
||
| 36 | 944454-00 | 1 | COVER | GB | |
||
| 37 | 860094-03 | 4 | SCREW | GB | |
||
| 38 | 860133-00 | 1 | CAP | GB | |
||
| 39 | 949774-15 | 1 | KLIXON | GB 115V | GB | |
|
| 39 | 860692-00 | 1 | KLIXON | GB | |
||
| 42 | 945842-00 | 1 | FLANGE | GB | |
||
| 43 | 945843-00 | 1 | FLANGE | GB | |
||
| 44 | 944460-00 | 1 | NUT | GB | |
||
| 46 | 861338-05 | 1 | SPRING | GB | |
||
| 47 | 861336-05 | 1 | BRAKE ADAPTER | GB | |
||
| 48 | 949727-06 | 1 | CIRCLIP | GB | |
||
| 49 | 943582-01 | 1 | SUCTION PIPE | GB | |
||
| 50 | 944336-01 | 2 | SUPPORT | GB | |
||
| 51 | 862419-00 | 4 | FEET | GB | |
||
| 52 | 944335-00 | 1 | LEG | GB | |
||
| 53 | 860301-16 | 16 | SCREW | GB | |
||
| 54 | 860074-02 | 16 | WASHER | GB | |
||
| 55 | 860083-03 | 16 | NUT | GB | |
||
| 56 | 944336-00 | 2 | SUPPORT | GB | |
||
| 57 | 944330-00 | 1 | TABLE | GB | |
||
| 58 | 944373-01 | 1 | INSERT | GB | |
||
| 59 | 945852-00 | 1 | SUPPORT | GB | |
||
| 60 | 860092-00 | 2 | NUT | GB | |
||
| 61 | 860093-20 | 1 | SCREW | GB | |
||
| 62 | 945853-00 | 1 | GUARD SA | GB | |
||
| 63 | 944365-00 | 1 | RIVING KNIFE | GB | |
||
| 64 | 860085-03 | 2 | BOLT | GB | |
||
| 65 | 944445-00 | 1 | SUPPORT | GB | |
||
| 66 | 860083-04 | 2 | NUT | GB | |
||
| 67 | 941602-00 | 4 | WASHER | GB | |
||
| 68 | 860073-03 | 4 | WASHER M8 | GB | |
||
| 69 | 860093-18 | 4 | SCREW | GB | |
||
| 70 | 944445-01 | 1 | RAIL,SHORT | GB | |
||
| 71 | 944341-00 | 1 | BRACKET | GB | |
||
| 72 | 861827-01 | 1 | SWITCHBOX SA | GB | |
||
| 73 | 861829-01 | 1 | CABLE SA | GB | |
||
| 74 | 945848-00 | 4 | CLIP | GB | |
||
| 75 | 860084-21 | 4 | SCREW | GB | |
||
| 76 | 930076-00 | 1 | SCREW | GB | |
||
| 77 | 944463-00 | 1 | SPANNER MULTI | GB | |
||
| 78 | 760601-00 | 1 | SPANNER BOX | GB | |
||
| 79 | 860074-03 | 2 | WASHER | GB | |
||
| 80 | 944364-00 | 1 | SUPPORT | GB | |
||
| 81 | 944415-00 | 1 | PLATE | GB | |
||
| 82 | 944514-01 | 1 | FENCE | GB | |
||
| 84 | 861840-01 | 1 | LEVER SA | GB | |
||
| 85 | 860661-07 | 1 | STUD | GB | |
||
| 86 | 945851-00 | 1 | KNOB | GB | |
||
| 87 | 942787-01 | 1 | KNOB | GB | |
||
| 88 | 930574-00 | 1 | HEX KEY 5 MM | GB | |
||
| 89 | 860098-05 | 1 | HEX KEY 8 MM | GB | |
||
| 90 | 861828-00 | 1 | MOTOR CABLE | GB | |
||
| 95 | 860092-00 | 1 | NUT | GB | |
||
| 96 | 860075-00 | 5 | WASHER | GB | |
||
| 99 | 861840-00 | 1 | HANDLE | GB | |
||
| 100 | 860367-01 | 1 | HANDLE | GB | |
||
| 101 | 944375-00 | 1 | HANDLE | GB | |
||
| 103 | 860301-16 | 1 | SCREW | GB | |
||
| 104 | 860085-10 | 1 | SCREW | GB | |
||
| 105 | 860083-13 | 3 | NUT | GB | |
||
| 106 | 945844-00 | 1 | PIN | GB | |
||
| 107 | 860322-01 | 6 | CIRCLIP | GB | |
||
| 108 | 944368-00 | 4 | ARM LINK | GB | |
||
| 109 | 944322-02 | 1 | PLATE | GB | |
||
| 110 | 944346-02 | 1 | HOUSING | GB | |
||
| 111 | 860083-04 | 4 | NUT | GB | |
||
| 112 | 944338-00 | 2 | SPACER | GB | |
||
| 113 | 941518-00 | 2 | SCREW | GB | |
||
| 114 | 944333-00 | 2 | BRACKET | GB | |
||
| 115 | 944343-00 | 2 | WEDGE | GB | |
||
| 116 | 944344-00 | 1 | BRACKET RH | GB | |
||
| 117 | 944344-01 | 1 | BRACKET LH | GB | |
||
| 118 | 944353-00 | 2 | ADJUSTER HEIGHT | GB | |
||
| 119 | 860322-05 | 2 | CIRCLIP | GB | |
||
| 120 | 944352-00 | 2 | CLIP | GB | |
||
| 121 | 863536-02 | 1 | COVER | FROM 01-95 | GB | |
|
| 121 | 944351-00 | 1 | COVER | BEFORE 01-95 | GB | |
|
| 122 | 945845-00 | 4 | RIVET | GB | |
||
| 124 | 860093-03 | 1 | SCREW | GB | |
||
| 125 | 944437-00 | 1 | PLATE | GB | |
||
| 126 | 944366-00 | 1 | BUSH | GB | |
||
| 127 | 944366-01 | 1 | BUSH | GB | |
||
| 128 | 945846-00 | 1 | SPACER | GB | |
||
| 129 | 861657-03 | 2 | BLOCK | GB | |
||
| 130 | 944367-01 | 1 | SPINDLE | GB | |
||
| 131 | 860085-15 | 5 | SCREW | GB | |
||
| 132 | 860074-02 | 4 | WASHER | GB | |
||
| 133 | 860085-04 | 4 | SCREW | GB | |
||
| 135 | 860073-00 | 2 | WASHER | GB | |
||
| 136 | 860089-22 | 2 | SCREW | GB | |
||
| 137 | 860094-03 | 2 | SCREW | GB | |
||
| 138 | 944374-00 | 1 | RETAINER | GB | |
||
| 142 | 760992-00 | 1 | SCREW.TEMP | GB | |
||
| 143 | 933652-00 | 1 | WASHER | GB | |
||
| 144 | 860083-01 | 1 | NUT | GB | |
||
| 146 | 860073-03 | 2 | WASHER M8 | GB | |
||
| 147 | 860086-09 | 2 | SCREW | GB | |
||
| 148 | 933055-00 | 2 | WASHER | GB | |
||
| 149 | 946474-00 | 1 | HANDLE SA | GB | |
||
| 150 | 946115-01 | 1 | DUST GUARD | AFTER CE | GB | |
|
| 150 | 946115-01 | 1 | DUST GUARD | GB | |
||
| 152 | 946473-00 | 1 | SLEEVE | GB | |
||
| 158 | 860089-18 | 1 | SCREW | GB 115V | GB | |
|
| 159 | 860073-01 | 1 | WASHER | GB 115V | GB | |
|
| 160 | 860083-02 | 1 | NUT | GB 115V | GB | |
|
| 161 | 946110-01 | 1 | SWITCHBOX | GB 115V | GB | |
|
| 162 | 949788-69 | 1 | CABLE SA | GB 115V | GB | |
|
| 163 | 946023-00 | 1 | PLATE | GB 115V | GB | |
|
| 164 | 949788-06 | 1 | MOTOR CABLE | GB 115V | GB | |
|
| 165 | 946012-00 | 1 | SWITCHBOX SA | GB 115V | GB | |
