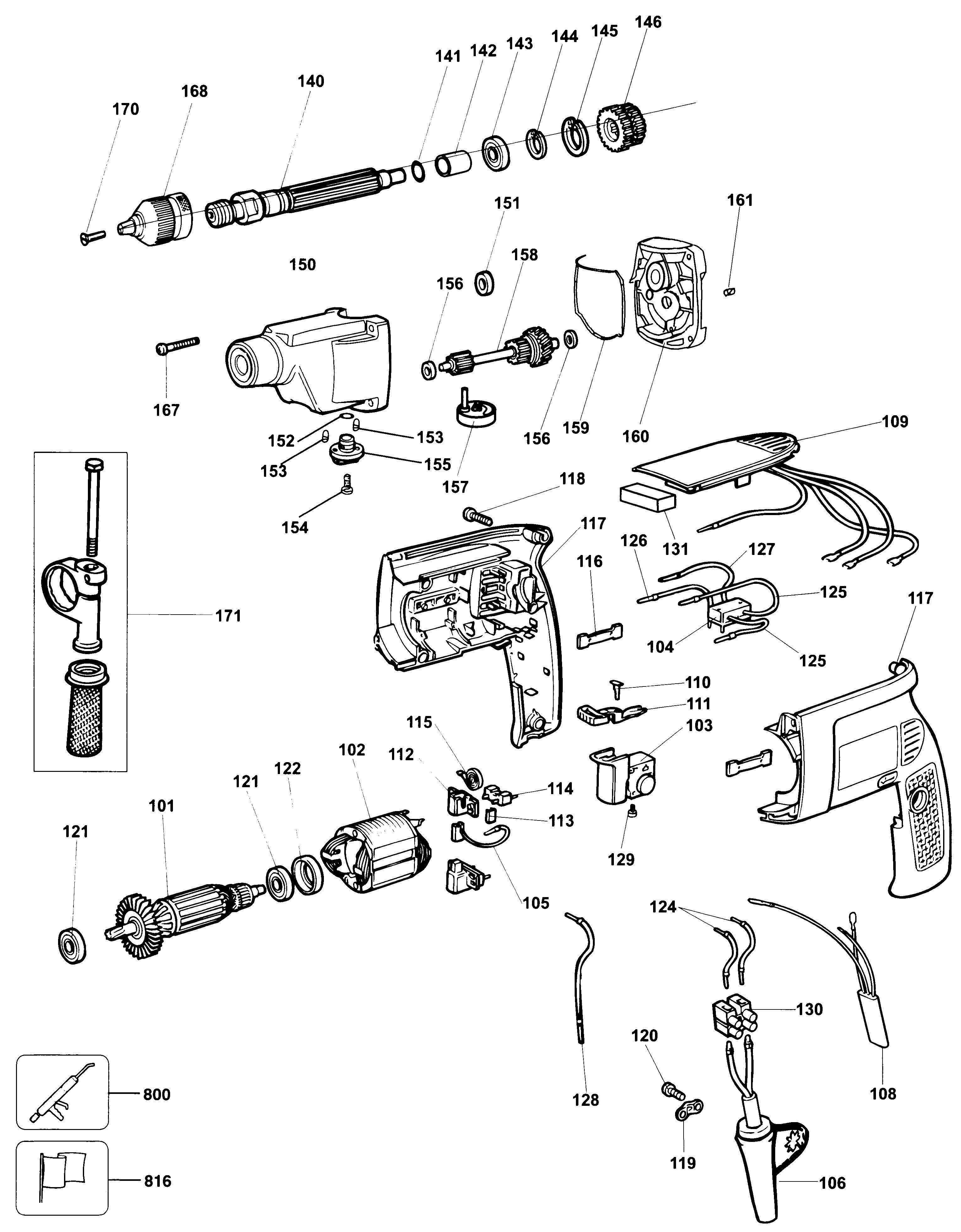

BM21EL DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 326152-00 | 1 | ARMATURE | GB |  |
||
| 101 | 326152-02 | 1 | ARMATURE 120V | GB 115V | GB | |
|
| 102 | 873875 | 1 | FIELD 115V | GB 115V | GB | |
|
| 102 | 875799-00 | 1 | FIELD | GB | |
||
| 103 | 324556-49 | 1 | SWITCH | GB | |
||
| 104 | 324400-00 | 1 | SWITCH REVERSE | GB | |
||
| 105 | 323660-06 | 2 | BRUSH | GB 115V | GB | |
|
| 105 | 323660-04 | 2 | BRUSH | GB | |
||
| 106 | 324438-73 | 1 | CORDSET | GB | |
||
| 106 | 330061-03 | 1 | CORDSET | GB 115V | GB | |
|
| 108 | 320843-02 | 1 | CAPACITOR | GB | |
||
| 109 | 324486-16 | 1 | ELECTRONIC 115V | GB 115V | GB | |
|
| 109 | 324486-15 | 1 | ELECTRONIC | GB | |
||
| 110 | 324165-04 | 1 | INSERT | GB | |
||
| 111 | 323490-08 | 1 | LEVER | GB | |
||
| 112 | 323496-02 | 2 | BRUSH HOLDER | GB | |
||
| 113 | 326226-00 | 4 | DAMPER | GB | |
||
| 114 | 491366-00 | 2 | BRUSH KIT | GB | |
||
| 114 | 323771-01 | 2 | CHOKE | GB 115V | GB | |
|
| 115 | 872843 | 2 | SPRING | GB | |
||
| 116 | 917713 | 2 | BLOCK | GB | |
||
| 117 | 328874-01 | 1 | CLAMSHELL PAIR | GB | |
||
| 118 | 323924-02 | 5 | SCREW | GB | |
||
| 119 | 821070 | 1 | CORD CLAMP | GB |  |
||
| 120 | 323924-08 | 2 | SCREW | GB | |
||
| 121 | 605040-63 | 2 | BEARING | GB | |
||
| 122 | 323481-00 | 1 | CAP | GB | |
||
| 124 | 323635-10 | 2 | LEAD 70MM | GB | |
||
| 125 | 323768-02 | 2 | LEAD 120MM BLACK | GB | |
||
| 126 | 877356 | 1 | LEAD 90MM BLACK | GB | |
||
| 127 | 323768-03 | 1 | LEAD 75MM BLACK | GB | |
||
| 128 | 878756 | 1 | LEAD 200MM BLACK | GB | |
||
| 129 | 911026 | 3 | SCREW | GB | |
||
| 130 | 323534-00 | 1 | CONNECTOR | GB | |
||
| 131 | 326793-04 | 1 | PAD | GB | |
||
| 140 | 327313-02 | 1 | SPINDLE SA | GB | |
||
| 141 | 930028-00 | 1 | O RING | GB | |
||
| 142 | 327289-00 | 1 | SLEEVE | GB | |
||
| 143 | 605040-25 | 1 | BEARING,BALL | GB | |
||
| 144 | 944137-00 | 1 | CIRCLIP | GB | |
||
| 145 | 931398 | 1 | RING | GB | |
||
| 146 | 1008288-00 | 1 | GEAR | GB | |
||
| 150 | 327311-00 | 1 | GEARCASE SA | GB | |
||
| 151 | 1006305-00 | 1 | SEAL | GB | |
||
| 152 | 323711-34 | 1 | O RING | GB | |
||
| 153 | 326467-00 | 2 | DETENT | GB | |
||
| 154 | 330065-22 | 1 | SCREW | GB | |
||
| 155 | 327309-01 | 1 | KNOB | GB | |
||
| 156 | 930102-00 | 2 | WASHER | GB | |
||
| 157 | 327314-00 | 1 | ACTUATOR | GB | |
||
| 158 | 577850-01 | 1 | INTERSHAFT SA | GB | |
||
| 159 | 327291-00 | 1 | SEAL | GB | |
||
| 160 | 580275-03 | 1 | GEARCASE COVER SA | GB | |||
| 161 | 916010 | 1 | BUMPER | GB | |
||
| 167 | 330065-14 | 4 | SCREW | GB | |
||
| 168 | N242399 | 1 | CHUCK KEYLESS | GB | |
||
| 170 | 575237-00 | 1 | SCREW | GB | |
||
| 171 | 939794-02 | 1 | HANDLE SIDE SA | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 816 | 326480-00 | 1 | BRAND LABEL | GB | |
