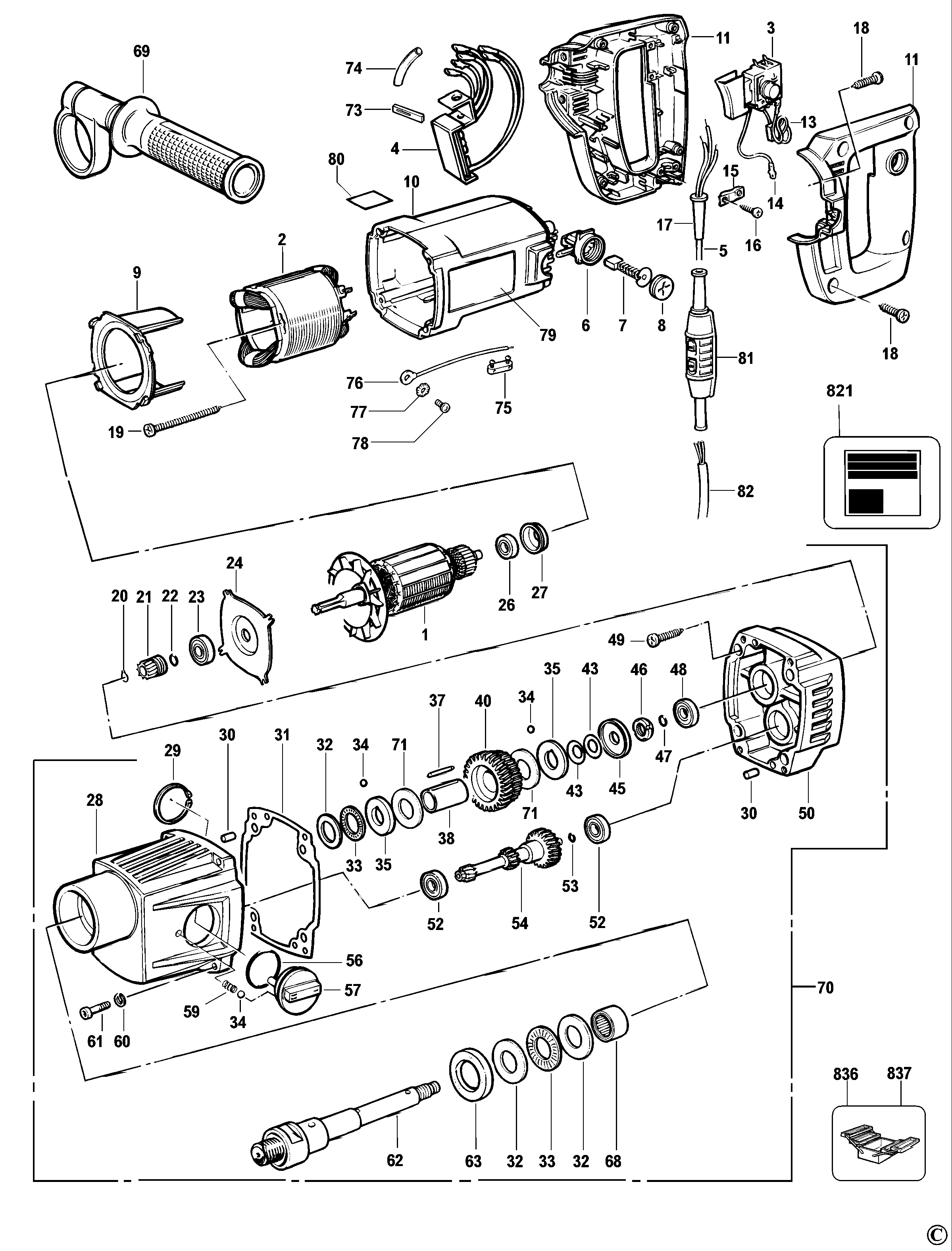

DB11EKM DIAMOND DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 248158-00 | 1 | ARMATURE SA | 230 VOLT | XJ |  |
|
| 1 | 248158-01 | 1 | ARMATURE 115V | 115 VOLT | XJ | |
|
| 2 | 587020-01 | 1 | FIELD 115V | 115 VOLT | XJ | |
|
| 2 | 587020-00 | 1 | FIELD | 230 VOLT | XJ | |
|
| 3 | 324989-00 | 1 | SWITCH | XJ | |
||
| 4 | 328372-02 | 1 | SERVICE KIT 115V | ELU Grey | 115 VOLT | XJ | |
| 4 | 328372-00 | 1 | SERVICE KIT 230V | ELU Grey | 230 VOLT | XJ | |
| 5 | 330085-05 | 1 | CABLE | XJ | |
||
| 6 | 448083-01 | 2 | BRUSHBOX SA | XJ |  |
||
| 7 | 248155-00 | 2 | BRUSH | 230 VOLT | XJ | |
|
| 7 | 248155-01 | 2 | BRUSH | 115 VOLT | XJ | |
|
| 8 | 448084-01 | 2 | BRUSH CAP | XJ | |
||
| 9 | 447786-00 | 1 | BAFFLE FAN | XJ | |
||
| 10 | 447799-00 | 1 | FIELDCASE | XJ | |
||
| 11 | 572000-01 | 1 | HANDLE SA | Yellow | XJ | |
|
| 13 | 320842-03 | 1 | CAPACITOR | XJ | |
||
| 14 | 248022-01 | 1 | LEAD 115V | 115 VOLT | XJ | |
|
| 15 | 910556 | 1 | CABLE CLAMP | XJ | |
||
| 16 | 330065-08 | 2 | SCREW | M4x18 T20 | XJ | |
|
| 17 | 401088-00 | 1 | PROTECTOR | XJ | |
||
| 18 | 330019-13 | 8 | SCREW | M4X19 T20 | XJ | |
|
| 19 | 844217-03 | 2 | SCREW | XJ | |
||
| 20 | 248311-00 | 1 | CIRCLIP | XJ | |
||
| 21 | 248035-00 | 1 | PINION | XJ | |
||
| 22 | 248036-00 | 1 | O RING | XJ | |
||
| 23 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | XJ | |
|
| 24 | 448079-00 | 1 | PLATE | XJ | |
||
| 26 | 605040-06 | 1 | BEARING,BALL | XJ | |
||
| 27 | 445217-02 | 1 | SLEEVE | XJ | |
||
| 28 | 248075-00 | 1 | GEARCASE SA | XJ | |
||
| 29 | 278814-00 | 1 | CIRCLIP | XJ | |
||
| 30 | 832327 | 2 | PIN | XJ | |
||
| 31 | 248049-00 | 1 | GASKET | XJ | |
||
| 32 | 278811-00 | 3 | RING | XJ | |
||
| 33 | 278810-00 | 2 | BEARING | XJ | |
||
| 34 | 832343 | 3 | BALL | XJ | |
||
| 37 | 278821-00 | 1 | PIN | XJ | |
||
| 38 | 279196-00 | 1 | CLUTCH KIT | XJ | |
||
| 40 | 248057-00 | 1 | GEAR SA | XJ | |
||
| 43 | 248058-00 | 4 | WASHER | XJ | |
||
| 45 | 248060-00 | 1 | CUP | XJ | |
||
| 46 | 248061-00 | 1 | NUT | XJ | |
||
| 47 | 278699-00 | 1 | SEAL | XJ | |
||
| 48 | 050830000 | 1 | BEARING 6001 RSZ | XJ | |
||
| 49 | 330019-42 | 4 | SCREW | XJ | |
||
| 50 | 248065-04 | 1 | GEARCASE | XJ | |
||
| 52 | 832337 | 2 | BEARING | XJ | |
||
| 53 | 278778-00 | 1 | SEAL | XJ | |
||
| 54 | 248069-00 | 1 | INTERGEAR | XJ | |
||
| 56 | 832348 | 1 | RING | XJ | |
||
| 57 | 248071-00 | 1 | KNOB | XJ | |
||
| 59 | 832344 | 1 | SPRING | XJ | |
||
| 60 | 832364 | 4 | WASHER | XJ | |
||
| 61 | 248063-00 | 4 | SCREW.TEMP | XJ | |
||
| 62 | 248074-00 | 1 | SPINDLE | M18 x 2.5 | DB11EKM | XJ | |
| 62 | 248074-02 | 1 | SPINDLE | 5/8"-16 UNF | DB11EK / DB11EKL | XJ | |
| 63 | 278812-00 | 1 | SEAL | XJ | |
||
| 68 | 278809-00 | 1 | BEARING | XJ | |
||
| 69 | 248190-00 | 1 | HANDLE SIDE SA | XJ | |
||
| 70 | 248019-05 | 1 | GEARBOX SA | Silver | DB11EKM | XJ | |
| 70 | 248019-06 | 1 | GEARBOX SA | DB11EK / DB11EKL | XJ | |
|
| 73 | 248037-00 | 1 | PROTECTOR | UP TO DATE CODE 9852 | XJ | |
|
| 74 | 249666-00 | 1 | SHEATH | 230 VOLT | XJ | |
|
| 75 | 323534-00 | 1 | CONNECTOR | XJ | |
||
| 76 | 323635-15 | 1 | LEAD | XJ | |
||
| 77 | 933652-00 | 1 | WASHER | XJ | |
||
| 78 | 324006-06 | 1 | SCREW | XJ | |
||
| 79 | 248182-05 | 1 | BRAND LABEL | XJ | |
||
| 80 | 328310-00 | 1 | LABEL | XJ | |
||
| 81 | 249698-00 | 1 | CUT OUT | 230 VOLT | XJ | |
|
| 81 | 249698-01 | 1 | CUT OUT | 115 VOLT | XJ | |
|
| 82 | 330085-02 | 1 | CORDSET (EURO) | QS | XJ | |
|
| 82 | 330085-04 | 1 | CORDSET | XW | XJ | |
|
| 821 | 569038-00 | 1 | RATING PLATE | XJ | |
||
| 836 | 559505-99 | 1 | SOCKET | XJ | |
||
| 837 | 559569-99 | 1 | SOCKET | XJ | |
