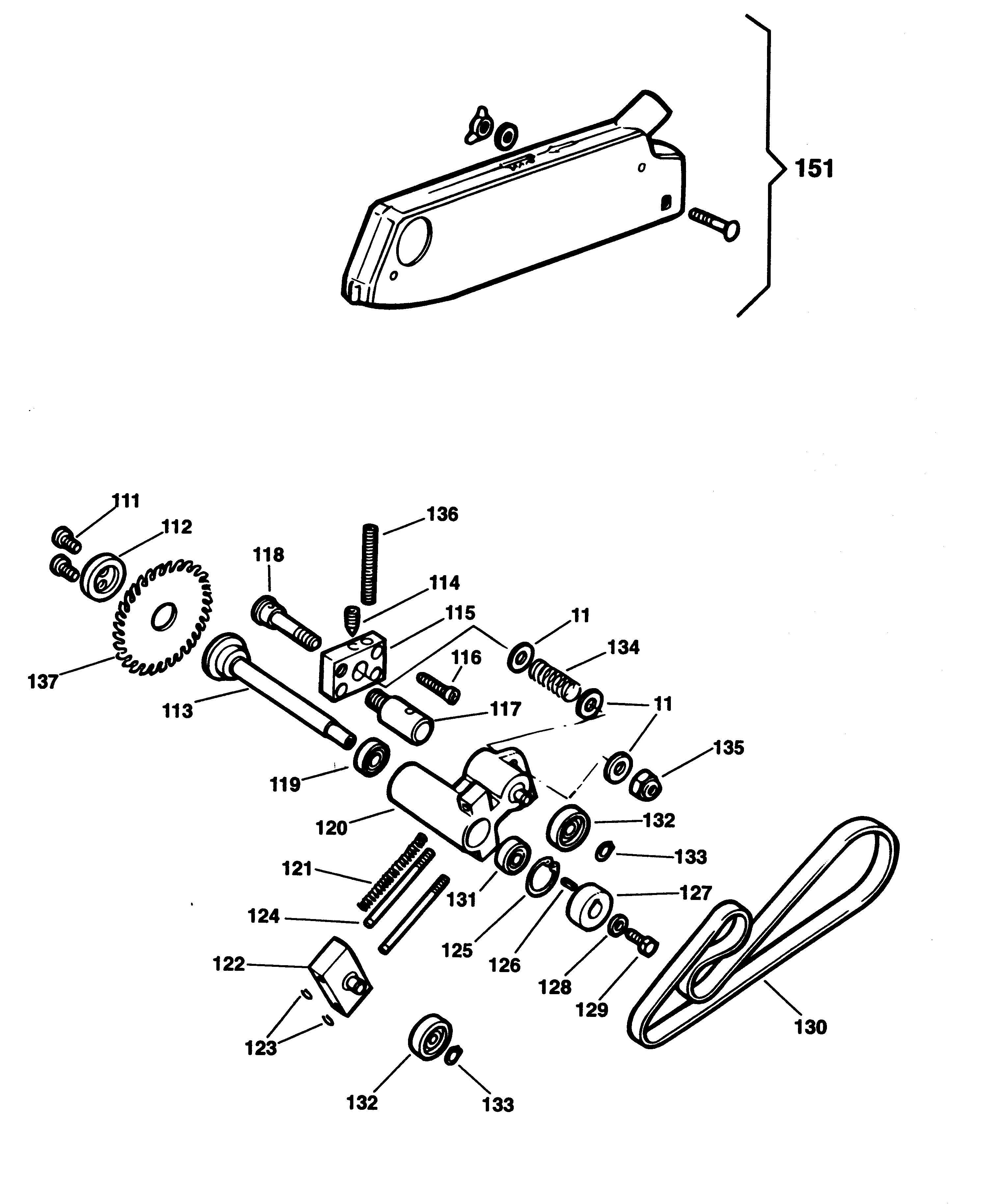

ETS24 TABLE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 559701-00 | 1 | COVER | XJ |  |
||
| 2 | 559782-00 | 2 | SCREW | XJ | |
||
| 3 | 279995-00 | 1 | OUTER FLANGE | XJ | |
||
| 4 | 279994-00 | 1 | INNER FLANGE | XJ | |
||
| 5 | 559743-00 | 1 | SCREW | XJ | |
||
| 6 | 559744-00 | 1 | WASHER | XJ | |
||
| 7 | 559715-00 | 2 | SCREW | XJ | |
||
| 8 | 559745-00 | 1 | SPACER | XJ | |
||
| 9 | 559746-00 | 1 | RIVING KNIFE | XJ | |
||
| 10 | 559747-00 | 1 | BRACKET | XJ | |
||
| 11 | 278913-00 | 6 | WASHER M8 | XJ | |
||
| 14 | 720959-00 | 23 | WASHER | XJ |  |
||
| 16 | 559770-00 | 5 | NUT | XJ | |
||
| 17 | 279997-00 | 1 | STOP PLATE | XJ | |
||
| 18 | 279999-00 | 1 | SUPPORT | XJ | |
||
| 19 | 559756-00 | 3 | SCREW | XJ | |
||
| 20 | 860083-12 | 3 | NUT M6 | XJ | |
||
| 21 | 279979-00 | 2 | STOP | XJ | |
||
| 22 | 279978-00 | 2 | ECCENTRIC | XJ | |
||
| 23 | 559757-00 | 1 | PROTRACTOR | XJ | |
||
| 24 | 891027 | 22 | SCREW | XJ | |
||
| 25 | 279345-00 | 1 | COLLAR | XJ | |
||
| 26 | 279987-00 | 1 | PIN | XJ | |
||
| 27 | 279985-00 | 1 | KNOB SA | XJ | |
||
| 28 | 279986-00 | 1 | SPINDLE | XJ | |
||
| 29 | 559759-00 | 1 | SPRING | XJ | |
||
| 30 | 559761-00 | 1 | NUT | XJ | |
||
| 31 | 279378-00 | 1 | GRUB SCREW | XJ | |
||
| 32 | 279340-00 | 1 | HANDLE SA | XJ | |
||
| 33 | 279379-00 | 1 | LABEL | XJ | |
||
| 34 | 279346-00 | 1 | NUT | XJ | |
||
| 35 | 279991-00 | 1 | DRIVE SHAFT | XJ | |
||
| 37 | 279320-00 | 6 | CIRCLIP | XJ | |
||
| 38 | 279996-00 | 1 | COVER | XJ | |
||
| 39 | 559773-00 | 4 | SCREW | XJ | |
||
| 40 | 279319-00 | 2 | SLIDE | XJ | |
||
| 42 | 559791-00 | 1 | GRUB SCREW | XJ | |
||
| 43 | 279375-00 | 1 | SCREW | XJ | |
||
| 44 | 279370-00 | 1 | BEARING | XJ | |
||
| 45 | 279371-00 | 1 | PINION | XJ | |
||
| 46 | 279372-00 | 2 | WASHER | XJ | |
||
| 47 | 279373-00 | 1 | BEARING | XJ | |
||
| 48 | 279374-00 | 1 | CAP | XJ | |
||
| 49 | 911172 | 20 | SCREW | XJ | |
||
| 51 | 279988-00 | 1 | MOTOR 3PH 400V | ETS24 3 PH 400V | XJ | |
|
| 51 | 279989-00 | 1 | MOTOR 230V | ETS22 1 PH 230V | XJ | |
|
| 52 | 279992-00 | 1 | CORD PROTECTOR | XJ | |
||
| 53 | 559790-00 | 1 | SWITCHBOX & CABLE | DE 3PH 400V | XJ | |
|
| 53 | 559784-00 | 1 | SWITCHBOX & CABLE | FR-IT 1PH 230V | XJ | |
|
| 53 | 559784-00 | 1 | SWITCHBOX & CABLE | AT-DE-ES 1PH 230V | XJ | |
|
| 53 | 559786-00 | 1 | SWITCHBOX & CABLE | GB 1PH 230V | XJ | |
|
| 53 | 559788-00 | 1 | SWITCHBOX & CABLE | CH 1PH 230V | XJ | |
|
| 55 | 909306 | 20 | WASHER | XJ | |
||
| 56 | 279428-00 | 1 | CAPACITOR & BOX SA | ETS22 1 PH 230V | XJ | |
|
| 56 | 279434-00 | 1 | TERMINAL BOX | ETS24 3 PH 400V | XJ | |
|
| 57 | 559781-00 | 1 | SCREW | XJ | |
||
| 58 | 559758-00 | 1 | LEVER | XJ | |
||
| 59 | 860428-00 | 2 | SCREW | XJ | |
||
| 60 | 860084-05 | 2 | SCREW | XJ | |
||
| 61 | 559762-00 | 1 | WASHER | XJ | |
||
| 63 | 934567 | 2 | SCREW | XJ | |||
| 64 | 559787-00 | 1 | CABLE & PLUG | CH 1PH 230V | XJ | |
|
| 64 | 559785-00 | 1 | CABLE & PLUG | GB 1PH 230V | XJ | |
|
| 64 | 559789-00 | 1 | CABLE & PLUG | DE 3PH 400V | XJ | |
|
| 64 | 279990-00 | 1 | CABLE & PLUG | FR-IT 1PH 230V | XJ | |
|
| 64 | 279990-00 | 1 | CABLE & PLUG | AT-DE-ES 1PH 230V | XJ | |
|
| 65 | 882397 | 2 | SCREW | XJ | |
||
| 81 | 559702-00 | 1 | COVER | XJ | |
||
| 82 | 559703-00 | 1 | BELT TOOTHED | XJ | |
||
| 83 | 559704-00 | 2 | KEY | XJ | |
||
| 84 | 559705-00 | 1 | SHAFT | XJ | |
||
| 85 | 559706-00 | 1 | PULLEY | XJ | |
||
| 86 | 559707-00 | 2 | BEARING | XJ | |
||
| 87 | 559708-00 | 1 | SPACER | XJ | |
||
| 88 | 559709-00 | 1 | DRIVE PULLEY | XJ | |
||
| 89 | 559710-00 | 1 | CIRCLIP | XJ | |
||
| 90 | 559711-00 | 1 | HOUSING | XJ | |
||
| 91 | 559712-00 | 2 | CIRCLIP | XJ | |
||
| 92 | 935626 | 4 | SCREW | XJ | |
||
| 93 | 559713-00 | 1 | KEY | XJ | |
||
| 94 | 559714-00 | 1 | BEARING | XJ | |
||
| 96 | 559716-00 | 1 | PULLEY | XJ | |
||
| 97 | 559717-00 | 1 | WASHER | XJ | |
||
| 98 | 559718-00 | 1 | BOLT | XJ | |
||
| 99 | 559969-00 | 1 | TENSIONING PULLEY | XJ | |
||
| 100 | 559970-00 | 1 | WASHER. CUP | ETS22| XJ |
| ||
| 100 | 559970-00 | 1 | WASHER. CUP | ETS24 | XJ | |
|
| 101 | 559971-00 | 1 | SCREW | ETS22| XJ |
| ||
| 101 | 559971-00 | 1 | SCREW | ETS24 | XJ | |
|
| 111 | 874177 | 2 | SCREW | XJ | |
||
| 112 | 559719-00 | 1 | WASHER CLAMP | XJ | |
||
| 113 | 559720-00 | 1 | SHAFT | XJ | |
||
| 114 | 559721-00 | 1 | GRUB SCREW | XJ | |
||
| 115 | 559722-00 | 1 | PIVOT BLOCK | XJ | |
||
| 116 | 932617 | 3 | SCREW | XJ | |
||
| 117 | 559723-00 | 1 | PIVOT SHAFT | XJ | |
||
| 118 | 559724-00 | 1 | SCREW | XJ | |
||
| 119 | 559725-00 | 1 | BEARING | XJ | |
||
| 120 | 559726-00 | 1 | HOUSING SA | XJ | |
||
| 121 | 559727-00 | 2 | SPRING | XJ | |
||
| 122 | 559728-00 | 1 | TENSION BLOCK | XJ | |
||
| 123 | 559729-00 | 2 | CIRCLIP | XJ | |
||
| 124 | 559730-00 | 2 | GUIDE ROD | XJ | |
||
| 125 | 559731-00 | 1 | CIRCLIP | XJ | |
||
| 126 | 559732-00 | 1 | KEY | XJ | |
||
| 127 | 559733-00 | 1 | PULLEY | XJ | |
||
| 128 | 559734-00 | 1 | WASHER | XJ | |
||
| 129 | 559735-00 | 1 | BOLT | XJ | |
||
| 130 | 559736-00 | 1 | BELT | XJ | |
||
| 131 | 559737-00 | 1 | BEARING | XJ | |
||
| 132 | 559738-00 | 1 | BEARING SA | XJ | |
||
| 133 | 559739-00 | 2 | CIRCLIP | XJ | |
||
| 134 | 559741-00 | 1 | SPRING | XJ | |
||
| 135 | 559742-00 | 2 | NUT | XJ | |
||
| 136 | 559763-00 | 1 | GRUB SCREW | XJ | |
||
| 151 | 279642-00 | 1 | GUARD SA | XJ | |
||
| 152 | 279982-00 | 1 | INSERT | XJ | |
||
| 155 | 279354-00 | 2 | SIDE EXTRUSION | XJ | |
||
| 156 | 279983-00 | 1 | END EXTRUSION | XJ | |
||
| 157 | 559700-00 | 1 | END EXTRUSION | XJ | |
||
| 158 | 279981-00 | 1 | TABLE SECTION | XJ | |
||
| 159 | 279980-00 | 1 | TABLE SECTION | XJ | |
||
| 160 | 279352-00 | 1 | TABLE SECTION | XJ | |
||
| 161 | 279359-00 | 2 | BRACE | XJ | |
||
| 162 | 279356-00 | 4 | JOINT | XJ | |
||
| 163 | 279367-00 | 16 | SCREW.SPECIAL | XJ | |
||
| 164 | 279366-00 | 18 | NUT | XJ | |
||
| 165 | 760219-00 | 18 | SCREW | XJ | |
||
| 166 | 279391-00 | 8 | WASHER | XJ | |
||
| 167 | 279348-00 | 1 | PANEL LH | XJ | |
||
| 168 | 279357-00 | 2 | RAIL | XJ | |
||
| 169 | 279977-00 | 1 | PANEL.REAR | XJ | |
||
| 170 | 279349-00 | 1 | PANEL RH | XJ | |
||
| 171 | 279976-00 | 1 | PANEL FRONT | XJ | |
||
| 172 | 11144 | 4 | SCREW | XJ | |||
| 173 | 279363-00 | 4 | FOOT | XJ | |
||
| 174 | 892473 | 8 | SCREW | XJ | |
||
| 175 | 279321-00 | 2 | CLAMP | XJ | |
||
| 176 | 279315-00 | 1 | HOSE | XJ | |
||
| 177 | 567950-00 | 1 | LABEL | ETS24 | XJ | |
|
| 177 | 567951-00 | 1 | LABEL | ETS22>SER NO 400518 | XJ | |
|
| 178 | 559734-00 | 1 | WASHER | ETS22>SER NO 400518 | XJ | |
|
| 179 | 559735-00 | 1 | BOLT | ETS22>SER NO 400518 | XJ | |
|
| 846 | 560236-00 | 1 | SPANNER BLADE | XJ | |
||
| 847 | 941580-00 | 1 | SPANNER 13-17MM | XJ | |
||
| 848 | 930574-00 | 1 | HEX KEY 5 MM | XJ | |
||
| 849 | 949882-01 | 1 | WRENCH 4 MM | XJ | |
||
| 850 | 560237-00 | 1 | HANDLE | XJ | |
