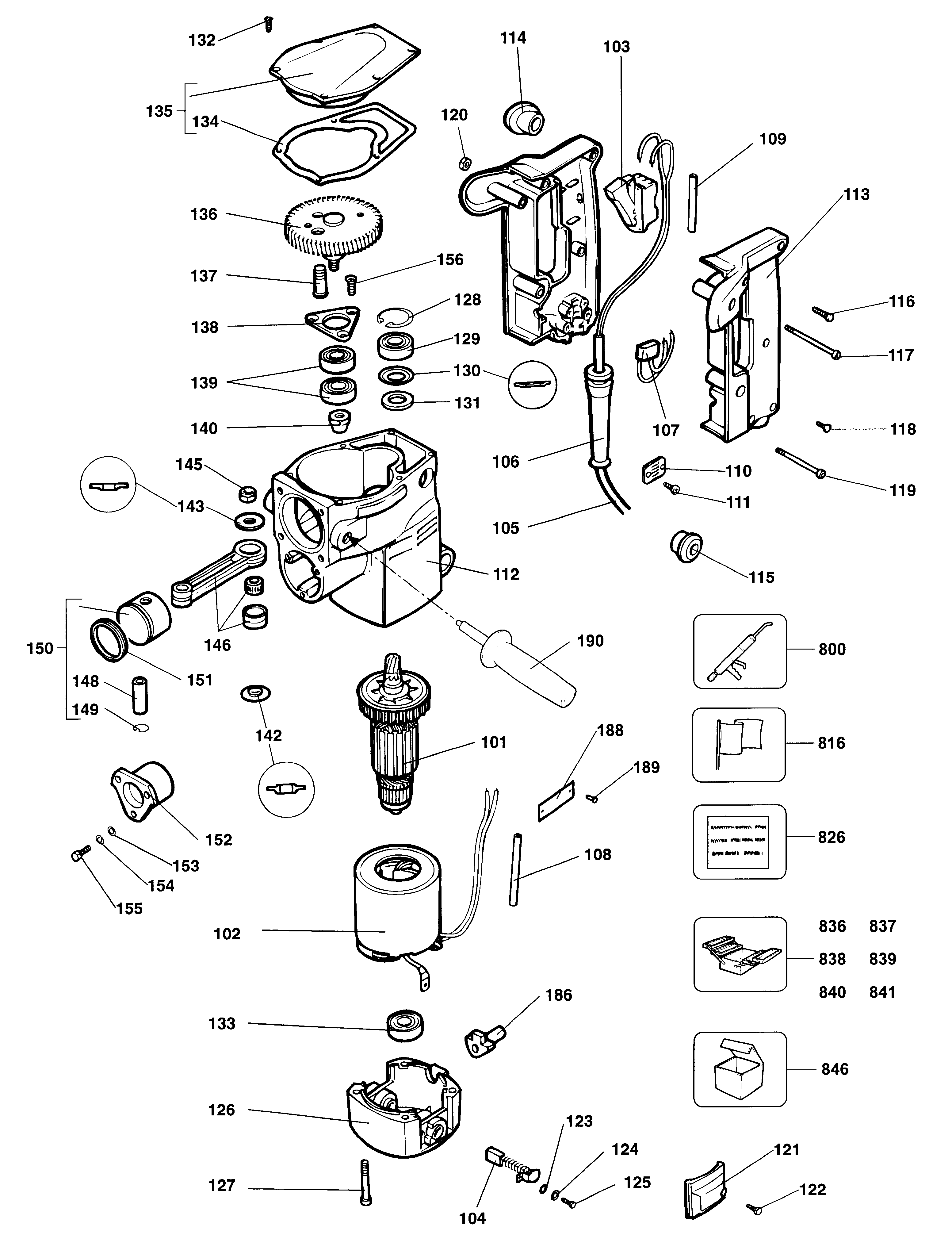

SH60K DEMOLITION HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 279889-00 | 1 | ARMATURE | GB 240V | GB |  |
|
| 101 | 560373-00 | 1 | ARMATURE 120V | GB 115V | GB | |
|
| 102 | 279890-00 | 1 | FIELD SA | GB 240V | GB | |
|
| 102 | 559978-00 | 1 | FIELD SA 115V | GB 115V | GB | |
|
| 103 | 279891-00 | 1 | SWITCH | Blue | GB 240V | GB | |
| 103 | 279891-00 | 1 | SWITCH | Blue | GB 115V | GB | |
| 104 | 568108-00 | 1 | BRUSH 115V | GB 115V | GB | |
|
| 104 | 568109-00 | 1 | BRUSH 230V | GB 240V | GB | |
|
| 105 | 330061-20 | 1 | CORDSET | GB 115V | GB | |
|
| 105 | 324438-73 | 1 | CORDSET | GB 240V | GB | |
|
| 106 | 279894-00 | 1 | PROTECTOR | GB | |
||
| 107 | 279895-00 | 1 | CAPACITOR 220/240 | GB 240V | GB | |
|
| 108 | 279896-00 | 1 | SLEEVE INSULATING | GB 240V | GB | |
|
| 108 | 279896-00 | 1 | SLEEVE INSULATING | GB 115V | GB | |
|
| 109 | 279897-00 | 1 | SLEEVE INSULATING | GB | |
||
| 110 | 279898-00 | 1 | CABLE CLAMP | GB | |
||
| 111 | 279899-00 | 2 | SCREW | GB | |
||
| 112 | 560548-00 | 1 | BODY | GB | |
||
| 113 | 279901-00 | 1 | HANDLE | To > No. 1626 | GB | |
|
| 113 | 559976-00 | 1 | HANDLE SA | From < No. 1627 | GB | |
|
| 114 | 279902-00 | 2 | BUFFER | GB | |
||
| 115 | 279903-00 | 2 | BUFFER | GB | |
||
| 116 | 279904-00 | 1 | SCREW | GB | |
||
| 117 | 279905-00 | 1 | SCREW | GB | |
||
| 118 | 279906-00 | 4 | SCREW | GB | |
||
| 119 | 279907-00 | 1 | SCREW | GB | |
||
| 120 | 279965-00 | 2 | NUT M6 | GB | |
||
| 121 | 560378-00 | 2 | COVER BRUSH | GB | |
||
| 122 | 279909-00 | 2 | SCREW | GB | |
||
| 123 | 279910-00 | 2 | WASHER | GB | |
||
| 124 | 279911-00 | 2 | WASHER | GB | |
||
| 125 | 279912-00 | 2 | SCREW | GB | |
||
| 126 | 559974-00 | 1 | MOTOR COVER | GB | |
||
| 127 | 279916-00 | 4 | SCREW | GB | |
||
| 128 | 279918-00 | 2 | CIRCLIP | GB | |
||
| 129 | 279920-00 | 1 | BEARING | GB | |
||
| 130 | 279921-00 | 1 | SPACER | GB | |
||
| 131 | 279923-00 | 1 | WASHER FELT | GB | |
||
| 132 | 279941-00 | 6 | SCREW | GB | |
||
| 133 | 279925-00 | 1 | BEARING | GB | |
||
| 134 | 560020-00 | 1 | GASKET | From < No. 1843 | GB | |
|
| 134 | 559972-00 | 1 | COVER SA | To > No. 1842 | GB | |
|
| 135 | 559972-00 | 1 | COVER SA | GB | |
||
| 136 | 560192-00 | 1 | GEAR SA | FROM < NO. 3744 | GB | |
|
| 136 | 560192-00 | 1 | GEAR SA | TO > NO. 3743 | GB | |
|
| 137 | 279929-00 | 1 | PIN | GB | |
||
| 138 | 279931-00 | 1 | PLATE | GB | |
||
| 139 | 279935-00 | 2 | BEARING | GB | |
||
| 140 | 279937-00 | 1 | NUT | GB | |
||
| 142 | 560193-00 | 1 | SPACER | FROM < NO. 3744 | GB | |
|
| 143 | 279915-00 | 1 | SPACER | GB | |
||
| 145 | 279914-00 | 1 | NUT | GB | |
||
| 146 | 560549-00 | 1 | CON ROD SA | GB | |
||
| 148 | 279924-00 | 1 | PIN | GB | |
||
| 149 | 279926-00 | 2 | CIRCLIP | GB | |||
| 150 | 279968-00 | 1 | PISTON SA | GB | |
||
| 151 | 560385-00 | 2 | O RING | GB | |
||
| 152 | 279961-00 | 1 | GUIDE | GB | |
||
| 153 | 279962-00 | 3 | WASHER M5 | GB | |
||
| 154 | 279963-00 | 3 | WASHER LOCK | GB | |
||
| 155 | 279964-00 | 3 | SCREW | GB | |||
| 156 | 279933-00 | 3 | SCREW | GB | |
||
| 157 | 560542-00 | 1 | RAM | GB | |
||
| 158 | 279932-00 | 1 | O RING | GB | |
||
| 159 | 279938-00 | 8 | WASHER | GB | |
||
| 160 | 279936-00 | 4 | SCREW | GB | |
||
| 161 | 560543-00 | 1 | CYLINDER | GB | |
||
| 162 | 560379-00 | 1 | COVER | GB | |
||
| 163 | 279942-00 | 1 | CLAMP | GB | |
||
| 164 | 279956-00 | 1 | SCREW | GB | |
||
| 165 | 279943-00 | 1 | NUT | GB | |
||
| 166 | 279945-00 | 1 | HANDLE | GB | |
||
| 167 | 279946-00 | 1 | WASHER M8 | GB | |
||
| 168 | 279947-00 | 1 | KNOB | GB | |
||
| 169 | 279969-00 | 1 | HANDLE SA | GB | |
||
| 170 | 279951-00 | 1 | O RING 34X6MM | GB | |
||
| 171 | 279950-00 | 1 | WASHER | GB | |
||
| 172 | 560544-00 | 1 | BEAT PIECE | GB | |
||
| 173 | 279948-00 | 2 | O RING 27X1,8 MM | GB | |
||
| 174 | 279952-00 | 1 | RING | GB | |
||
| 175 | 279953-00 | 1 | O RING | GB | |
||
| 178 | 279955-00 | 4 | SCREW | GB | |
||
| 179 | 568641-00 | 1 | HOLDER SA | GB | |
||
| 180 | 568640-00 | 1 | RETAINER SA | GB | |
||
| 181 | 568641-00 | 1 | HOLDER SA | GB | |
||
| 182 | 279959-00 | 1 | SPRING | GB | |
||
| 183 | 568640-00 | 1 | RETAINER SA | GB | |
||
| 184 | 279958-00 | 1 | PIN | GB | |
||
| 185 | 279960-00 | 1 | DUST DEFLECTOR | GB | |
||
| 186 | 559975-00 | 1 | GUIDE | From < No. 1627 | GB | |
|
| 187 | 860098-04 | 1 | WRENCH 6 MM | GB |  |
||
| 188 | 560248-00 | 1 | RATING PLATE | GB | |
||
| 189 | 560247-00 | 2 | RIVET | GB | |
||
| 190 | 560246-00 | 1 | SIDE HANDLE | ACCESSORY | GB | |
|
| 800 | 560376-00 | 1 | GREASE 5KG | Molyguard Aero 300 | GB | |
|
| 816 | 279970-00 | 1 | BRAND LABEL | GB | |
||
| 826 | 279972-00 | 1 | LABEL | GB | |
||
| 836 | 559512-99 | 1 | S.T.MANDREL | GB | |
||
| 837 | 559513-99 | 1 | S.T.BEARING INSERTOR | GB | |
||
| 838 | 559514-99 | 1 | S.T.MANDREL | GB | |
||
| 839 | 559515-99 | 1 | S.T.LOCKING TOOL | GB | |
||
| 840 | 559516-99 | 1 | S.T.MANDREL | GB | |
||
| 841 | 559517-99 | 1 | S.T.BEARING INSERTOR | GB | |
||
| 846 | 560546-00 | 1 | SERVICE KIT 230V | GB | |
