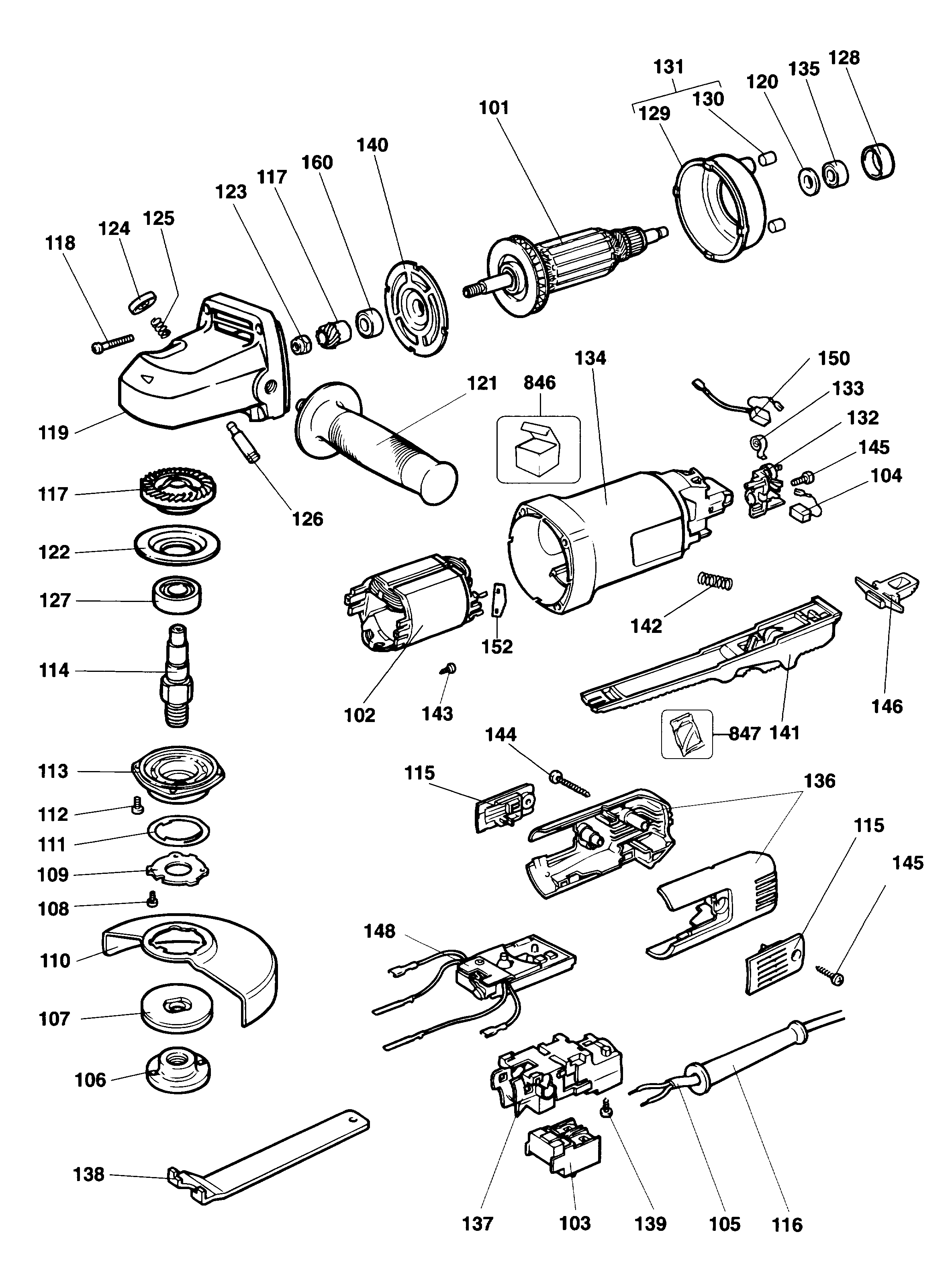

WS14E ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 401702-11 | 1 | ARMATURE 115V | GB |  |
||
| 101 | 393921-04 | 1 | ARMATURE SA | GB | |
||
| 102 | 569577-05 | 1 | FIELD 115V | GB | |
||
| 102 | 395991-00 | 1 | FIELD 230V | GB | |
||
| 103 | 945614-00 | 1 | SWITCH | GB |  |
||
| 104 | 930151-00 | 1 | BRUSH 220V | GB | |
||
| 104 | 930897-00 | 1 | BRUSH 115-120V | GB | |
||
| 105 | 949770-38 | 1 | CABLE | GB | |
||
| 105 | 949770-39 | 1 | CABLE | GB | |
||
| 106 | 403430-00 | 1 | OUTER FLANGE | GB | |
||
| 107 | 930771-00 | 1 | INNER FLANGE | GB | |
||
| 108 | 562160-00 | 3 | SCREW | GB | |
||
| 109 | 605415-00 | 1 | RETAINING PLATE | GB | |
||
| 110 | 944586-00 | 1 | GUARD | GB | |
||
| 111 | 393576-00 | 1 | RING | GB | |
||
| 112 | 930224-01 | 4 | SCREW | GB | |
||
| 113 | 945298-00 | 1 | GEARCASE COVER | GB | |
||
| 114 | 945297-00 | 1 | SPINDLE | GB | |
||
| 115 | 945578-00 | 2 | COVER BRUSH | GB | |
||
| 116 | 401088-00 | 1 | PROTECTOR | GB | |
||
| 116 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 116 | N542553 | 1 | CORD PROTECTOR | GB 240v | GB | ||
| 117 | 661243-00 | 1 | GEAR & PINION | GB | |
||
| 118 | 930079-01 | 4 | SCREW | GB | |
||
| 119 | 610704-01 | 1 | SERVICE KIT | GB | |
||
| 120 | 945287-00 | 1 | SPACER | GB | |
||
| 121 | 945597-00 | 1 | HANDLE SIDE SA | GB | |
||
| 122 | 945299-00 | 1 | FLANGE | GB | |
||
| 123 | 945292-00 | 1 | NUT | GB | |
||
| 124 | 944574-00 | 1 | BUTTON | GB | |
||
| 125 | 562210-00 | 1 | SPRING | GB | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | GB | |
||
| 127 | 605040-22 | 1 | BEARING | GB | |
||
| 128 | 949721-02 | 1 | SLEEVE | GB | |
||
| 129 | 944581-00 | 1 | BAFFLE | GB | |
||
| 130 | 949638-01 | 2 | BUFFER | GB | |
||
| 131 | 401623-00 | 1 | BAFFLE | GB | |
||
| 132 | 949880-05 | 2 | BRUSH HOLDER SA | INCL. SPRING | GB | |
|
| 133 | 930090-00 | 2 | BRUSH SPRING | GB | |
||
| 134 | 401637-00 | 1 | FIELDCASE | GB | |
||
| 135 | 949625-01 | 1 | BEARING | 8 x 19 x 9 | GB | |
|
| 136 | 945610-00 | 1 | HANDLE SA | GB | |
||
| 137 | 401668-00 | 1 | LEVER KIT | GB | |
||
| 138 | 401253-00 | 1 | WRENCH ROUND-PINS | GB | |
||
| 139 | 930284-01 | 1 | SCREW | GB | |
||
| 140 | 401622-01 | 1 | FLANGE | GB | |
||
| 141 | 401668-00 | 1 | LEVER KIT | GB | |
||
| 142 | 401016-00 | 1 | SPRING | GB | |
||
| 143 | 931254-00 | 2 | SCREW | GB | |
||
| 144 | 931297-00 | 2 | SCREW | GB | |
||
| 145 | 931469-02 | 4 | SCREW | GB | |
||
| 146 | 947828-00 | 1 | BUTTON ON | GB | |
||
| 146 | 947828-00 | 1 | BUTTON ON | GB 240v | GB | |
|
| 148 | 401967-01 | 1 | ELECTRONIC 240V | GB | |
||
| 148 | 401967-00 | 1 | ELECTRONIC 115V | GB | |
||
| 150 | 949637-02 | 1 | BRUSH LED | GB | |
||
| 150 | 949637-01 | 1 | BRUSH LED | GB | |
||
| 152 | 402489-00 | 2 | PAD | GB | |
||
| 160 | N110358 | 1 | BEARING | GB | |
||
| 846 | 402485-00 | 1 | KIT SA | GB | |
||
| 847 | 401668-01 | 1 | LEVER KIT | GB | |
