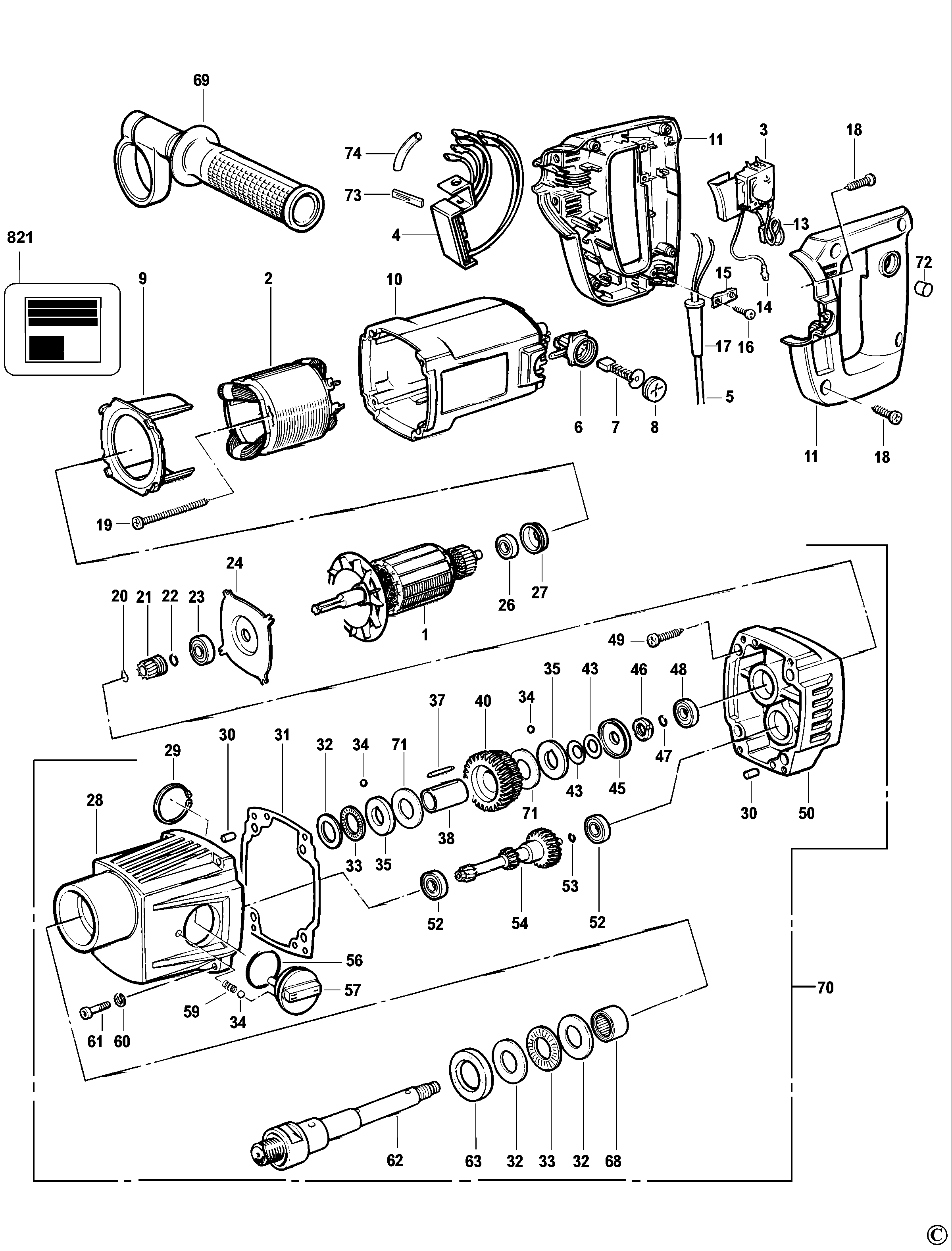

DB10EK DIAMOND DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 248158-00 | 1 | ARMATURE SA | 240V TYPE 3 | XJ |  |
|
| 1 | 248158-00 | 1 | ARMATURE SA | 240V TYPE 2 | XJ | |
|
| 1 | 248158-01 | 1 | ARMATURE 115V | 115V TYPE 2 | XJ | |
|
| 2 | 587020-01 | 1 | FIELD 115V | 115V TYPE 2 | XJ | |
|
| 2 | 587020-00 | 1 | FIELD | 240V TYPE 3 | XJ | |
|
| 2 | 587020-00 | 1 | FIELD | 240V TYPE 2 | XJ | |
|
| 3 | 249579-00 | 1 | SWITCH KIT | XJ | |
||
| 4 | 328372-02 | 1 | SERVICE KIT 115V | ELU Grey | 115V TYPE 2 | XJ | |
| 4 | 328372-00 | 1 | SERVICE KIT 230V | ELU Grey | 240V TYPE 2 | XJ | |
| 4 | 328372-00 | 1 | SERVICE KIT 230V | ELU Grey | 240V TYPE 3 | XJ | |
| 5 | 330061-20 | 1 | CORDSET | 115V TYPE 2 | XJ | |
|
| 5 | 325612-10 | 1 | CORDSET (M/PLUG) | 240V TYPE 3 | XJ | |
|
| 5 | 325612-10 | 1 | CORDSET (M/PLUG) | 240V TYPE 2 | XJ | |
|
| 5 | 278031-00 | 3 | GASKET | XJ | |
||
| 6 | 448083-01 | 2 | BRUSHBOX SA | XJ |  |
||
| 6 | 90543891 | 6 | HOUSING SA | XJ | |||
| 7 | 248155-01 | 2 | BRUSH | TYPE 2 115V | XJ | |
|
| 7 | 248155-00 | 2 | BRUSH | 240V TYPE 3 | XJ | |
|
| 7 | 248155-00 | 2 | BRUSH | TYPE 2 230V | XJ | |
|
| 8 | 448084-01 | 2 | BRUSH CAP | XJ | |
||
| 8 | 011811001 | 6 | SCREW | XJ | |
||
| 9 | 447786-00 | 1 | BAFFLE FAN | XJ | |
||
| 10 | 447799-00 | 1 | FIELDCASE | XJ | |
||
| 11 | 572000-01 | 1 | HANDLE SA | Yellow | 240V TYPE 2 | XJ | |
| 11 | 572000-01 | 1 | HANDLE SA | Yellow | 115V TYPE 2 | XJ | |
| 11 | 572000-01 | 1 | HANDLE SA | Yellow | 240V TYPE 3 | XJ | |
| 12 | 402759-01 | 2 | BRUSH SPRING | XJ | |
||
| 13 | 320842-03 | 1 | CAPACITOR | XJ | |
||
| 13 | 975877-03 | 2 | HANDLE | XJ | |
||
| 14 | 248022-01 | 1 | LEAD 115V | 115V TYPE 2 | XJ | |
|
| 14 | 248022-00 | 1 | LEAD | 240V TYPE 2 | XJ | |
|
| 15 | 910556 | 1 | CABLE CLAMP | XJ | |
||
| 16 | 949896-12 | 2 | SCREW | XJ | |
||
| 16 | 90522900 | 4 | RATING PLATE | XJ | |||
| 17 | 403395-00 | 1 | CORD PROTECTOR | XJ | |
||
| 18 | 330019-13 | 8 | SCREW | M4X19 T20 | XJ | |
|
| 19 | 844217-03 | 2 | SCREW | XJ | |
||
| 20 | 248311-00 | 1 | CIRCLIP | XJ | |
||
| 21 | 248035-00 | 1 | PINION | XJ | |
||
| 22 | 248036-00 | 1 | O RING | XJ | |
||
| 23 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | XJ | |
|
| 23 | 584833-00 | 8 | CORDSET (EURO) | XJ | |
||
| 24 | 448079-00 | 1 | PLATE | XJ | |
||
| 24 | 949738-40 | 2 | CORDSET | XJ | |
||
| 25 | 487080-03 | 2 | COVER | Wurth | XJ | |
|
| 26 | 605040-06 | 1 | BEARING,BALL | XJ | |
||
| 26 | 605786-00 | 1 | HOUSING SA | XJ | |||
| 27 | 445217-02 | 1 | SLEEVE | XJ | |
||
| 28 | 248075-00 | 1 | GEARCASE SA | XJ | |
||
| 28 | 992779 | 1 | SCREW | XJ | |
||
| 29 | 278814-00 | 1 | CIRCLIP | XJ | |
||
| 30 | 832327 | 2 | PIN | XJ | |
||
| 30 | 868242-03 | 2 | CONTACT | XJ | |
||
| 31 | 248049-00 | 1 | GASKET | XJ | |
||
| 32 | 278811-00 | 3 | RING | XJ | |
||
| 32 | 023820800 | 1 | WASHER SPRING | XJ | |
||
| 33 | 278810-00 | 2 | BEARING | XJ | |
||
| 34 | 832343 | 3 | BALL | XJ | |
||
| 34 | 013814500 | 1 | STUD | XJ | |
||
| 35 | 040260300 | 1 | FSO BELT,GROOVED | XJ | |
||
| 37 | 278821-00 | 1 | PIN | XJ | |
||
| 37 | 040820700 | 2 | CIRCLIP | XJ | |||
| 38 | 279196-00 | 1 | CLUTCH KIT | XJ | |
||
| 38 | 419661-10 | 4 | CLAMSHELL | XJ | |
||
| 39 | N422048 | 4 | BUMPER | Upper Left | XJ | |
|
| 40 | 248057-00 | 1 | GEAR SA | XJ | |
||
| 43 | 248058-00 | 4 | WASHER | XJ | |
||
| 45 | 248060-00 | 1 | CUP | XJ | |
||
| 46 | 248061-00 | 1 | NUT | XJ | |
||
| 47 | 278699-00 | 1 | SEAL | XJ | |
||
| 48 | 050830000 | 1 | BEARING 6001 RSZ | XJ | |
||
| 49 | 330019-42 | 4 | SCREW | XJ | |
||
| 50 | 248065-04 | 1 | GEARCASE | XJ | |
||
| 52 | 832337 | 2 | BEARING | XJ | |
||
| 53 | 278778-00 | 1 | SEAL | XJ | |
||
| 54 | 248069-00 | 1 | INTERGEAR | XJ | |
||
| 56 | 832348 | 1 | RING | XJ | |
||
| 57 | 248071-00 | 1 | KNOB | XJ | |
||
| 59 | 832344 | 1 | SPRING | XJ | |
||
| 60 | 832364 | 4 | WASHER | XJ | |
||
| 61 | 248063-00 | 4 | SCREW.TEMP | XJ | |
||
| 62 | 248074-02 | 1 | SPINDLE | 5/8"-16 UNF | XJ | |
|
| 63 | 278812-00 | 1 | SEAL | XJ | |
||
| 68 | 278809-00 | 1 | BEARING | XJ | |
||
| 69 | 248190-00 | 1 | HANDLE SIDE SA | XJ | |
||
| 70 | 248019-06 | 1 | GEARBOX SA | XJ | |
||
| 72 | 917650-01 | 1 | BLANK | XJ | |
||
| 73 | 248037-00 | 1 | PROTECTOR | TYPE 3 | XJ | |
|
| 74 | 249666-00 | 1 | SHEATH | TYPE 3 | XJ | |
|
| 821 | 569038-00 | 1 | RATING PLATE | XJ | |
||
| 836 | 559505-99 | 1 | SOCKET | XJ | |
||
| 837 | 559569-99 | 1 | SOCKET | XJ | |
