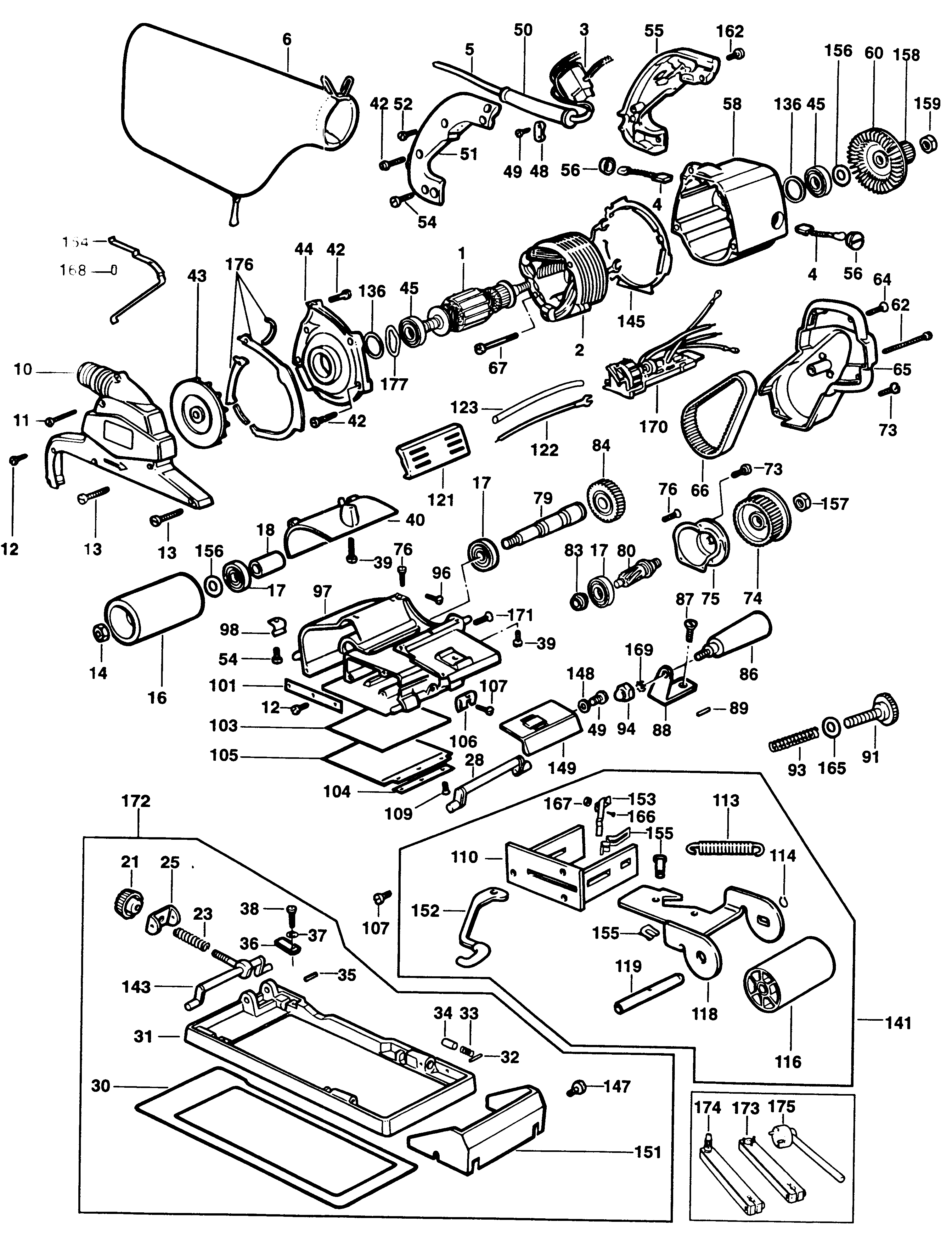

MHB90EK BELT SANDER Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 248156-00 | 1 | ARMATURE | GB |  |
||
| 2 | 090102102 | 1 | FIELD 220V | GB | |
||
| 3 | 249031-00 | 1 | SWITCH | GB | |
||
| 4 | 013121501 | 2 | BRUSH 220V | GB |  |
||
| 5 | 379092 | 1 | CORDSET | GB | |
||
| 6 | 248121-05 | 1 | BAG DUST SA | GB | |
||
| 10 | 247664-05 | 1 | FANCASE KIT | Yellow | GB | |
|
| 11 | 247144-05 | 1 | SCREW | GB | |
||
| 12 | 249437-01 | 1 | SCREW | GB | |
||
| 13 | 249415-03 | 4 | SCREW | GB | |
||
| 14 | 249232-40 | 1 | NUT | GB | |
||
| 16 | 324914-00 | 1 | ROLLER SA | GB | |
||
| 17 | 055830000 | 3 | BEARING 6002 2RS | GB | |
||
| 18 | 050152300 | 1 | SPACER | GB | |
||
| 21 | 248428-00 | 1 | KNOB | GB | |
||
| 23 | 325094-00 | 1 | SPRING | GB | |
||
| 25 | 324919-00 | 1 | BRACKET | GB | |
||
| 28 | 050239700 | 2 | SHAFT | GB | |
||
| 30 | 050252200 | 1 | PLATE | GB | |
||
| 31 | 248831-00 | 1 | FRAME SA | GB | |
||
| 32 | 069913906 | 2 | PIN | GB | |
||
| 33 | 013931037 | 2 | SPRING | GB | |
||
| 34 | 050230401 | 2 | SCREW | GB | |
||
| 35 | 248769-00 | 2 | PIN | GB | |
||
| 36 | 050230000 | 2 | PLATE | GB | |
||
| 37 | 725163 | 2 | WASHER | GB | |
||
| 38 | 249415-01 | 2 | SCREW | GB | |
||
| 39 | 249220-00 | 2 | SCREW | GB | |
||
| 40 | 324922-06 | 1 | PLATE | GB | |
||
| 42 | 760978-01 | 5 | SCREW | GB | |
||
| 43 | 324908-00 | 1 | FAN | GB | |
||
| 44 | 248143-06 | 1 | COVER | Black | GB | |
|
| 45 | 050830000 | 2 | BEARING 6001 RSZ | GB | |
||
| 48 | 910556 | 1 | CABLE CLAMP | GB | |
||
| 49 | 249416-06 | 3 | SCREW | GB | |
||
| 50 | 320785 | 1 | CORD PROTECTOR | GB | |
||
| 51 | 324687-05 | 1 | COVER | GB | |
||
| 52 | 249416-03 | 1 | SCREW | GB | |
||
| 54 | 249424-20 | 5 | SCREW | GB | |
||
| 55 | 324686-05 | 1 | GRIP | GB | |
||
| 56 | 249007-01 | 2 | BRUSH CAP | GB | |
||
| 58 | 248438-01 | 1 | HOUSING REPAIR KIT | GB | |
||
| 60 | 324907-02 | 1 | FAN | GB | |
||
| 62 | 248090-05 | 1 | SCREW | GB | |
||
| 64 | 249437-02 | 2 | SCREW | GB | |
||
| 65 | 248187-06 | 1 | COVER BELT | Black | GB | |
|
| 66 | 324909-00 | 1 | BELT TOOTHED | GB | |
||
| 67 | 911442 | 2 | RETAINER | GB | |
||
| 73 | 249415-01 | 4 | SCREW | GB | |
||
| 74 | 324910-00 | 1 | PULLEY | GB | |
||
| 75 | 050151901 | 1 | PLATE | GB | |
||
| 76 | 249415-02 | 2 | SCREW | GB | |
||
| 79 | 378189 | 1 | GEAR & SPINDLE SA | GB | |
||
| 80 | 324911-00 | 1 | GEAR | GB | |
||
| 83 | 018980105 | 1 | BEARING SINTER | GB | |
||
| 84 | 378189 | 1 | GEAR & SPINDLE SA | GB | |
||
| 86 | 140111000 | 1 | KNOB | GB | |
||
| 87 | 248084-05 | 1 | SCREW | GB | |
||
| 88 | 249124-00 | 1 | LEVER | GB | |
||
| 89 | 761065-00 | 1 | PIN | GB | |
||
| 91 | 325015-00 | 1 | SCREW.TEMP | GB | |
||
| 93 | 761054-00 | 1 | SPRING | GB | |
||
| 94 | 248078-05 | 1 | NUT | GB | |
||
| 96 | 249440-00 | 1 | SCREW | GB | |
||
| 97 | 248125-02 | 1 | HOUSING REPAIR KIT | GB | |
||
| 98 | 050930703 | 1 | SPRING | GB | |
||
| 101 | 050116300 | 1 | STRIP | GB | |
||
| 103 | 050111700 | 1 | PLATE | GB | |
||
| 104 | 050110000 | 1 | STRIP | GB | |
||
| 105 | 050110001 | 1 | PLATE | GB | |
||
| 106 | 050930700 | 1 | SPRING | GB | |
||
| 107 | 249415-00 | 4 | SCREW | GB | |
||
| 109 | 248084-10 | 3 | SCREW | GB | |
||
| 110 | 248148-05 | 1 | HOLDER | GB | |
||
| 113 | 050931316 | 1 | SPRING | GB | |||
| 114 | 860079-03 | 1 | CIRCLIP | GB | |
||
| 116 | 590984-00 | 1 | REPAIR KIT | GB | |
||
| 118 | 324924-05 | 1 | BRACKET | GB | |
||
| 119 | 590984-00 | 1 | REPAIR KIT | GB | |
||
| 121 | 249015-00 | 2 | COVER BRUSH | GB | |
||
| 122 | 090164501 | 2 | LEAD 80MM YELLOW | GB | |
||
| 123 | 868020-00 | 2 | SLEEVE | GB | |
||
| 136 | 248113-00 | 2 | GASKET | GB | |
||
| 141 | 248456-05 | 1 | FRONT ROLLER KIT | GB | |
||
| 143 | 248096-00 | 1 | SHAFT SA | GB | |
||
| 145 | 324466-00 | 1 | BAFFLE | GB | |
||
| 152 | 324920-05 | 1 | LEVER | GB | |
||
| 153 | 324923-00 | 1 | SPRING | GB | |
||
| 154 | 247998-00 | 1 | SPRING | GB | |
||
| 155 | 249523-00 | 1 | REPAIR KIT | GB | |
||
| 156 | 247869-00 | 2 | WASHER | GB | |
||
| 157 | 003822700 | 1 | NUT | GB | |
||
| 158 | 325248-01 | 1 | PULLEY | GB | |
||
| 159 | 248077-00 | 1 | NUT | GB | |
||
| 162 | 249437-10 | 4 | SCREW | GB | |
||
| 165 | 249128-00 | 1 | WASHER | GB | |
||
| 166 | 248312-00 | 2 | SCREW.TEMP | GB | |
||
| 167 | 248313-00 | 2 | NUT | GB | |
||
| 168 | 248082-00 | 1 | RIVET | GB | |
||
| 169 | 249219-00 | 1 | WASHER | GB | |
||
| 170 | 324131-06 | 1 | ELECTRONIC | Black | GB | |
|
| 171 | 249424-00 | 1 | SCREW | GB | |
||
| 173 | 559574-99 | 1 | CLAMP | REPAIR TOOLING | GB | |
|
| 174 | 559575-99 | 1 | S.T.LOCKING TOOL | REPAIR TOOLING | GB | |
|
| 175 | 559573-99 | 1 | S.T.WRENCH | REPAIR TOOLING | GB | |
|
| 176 | 249503-00 | 1 | GASKET | GB | |
||
| 177 | 249582-00 | 1 | WASHER SPRING | GB | |
