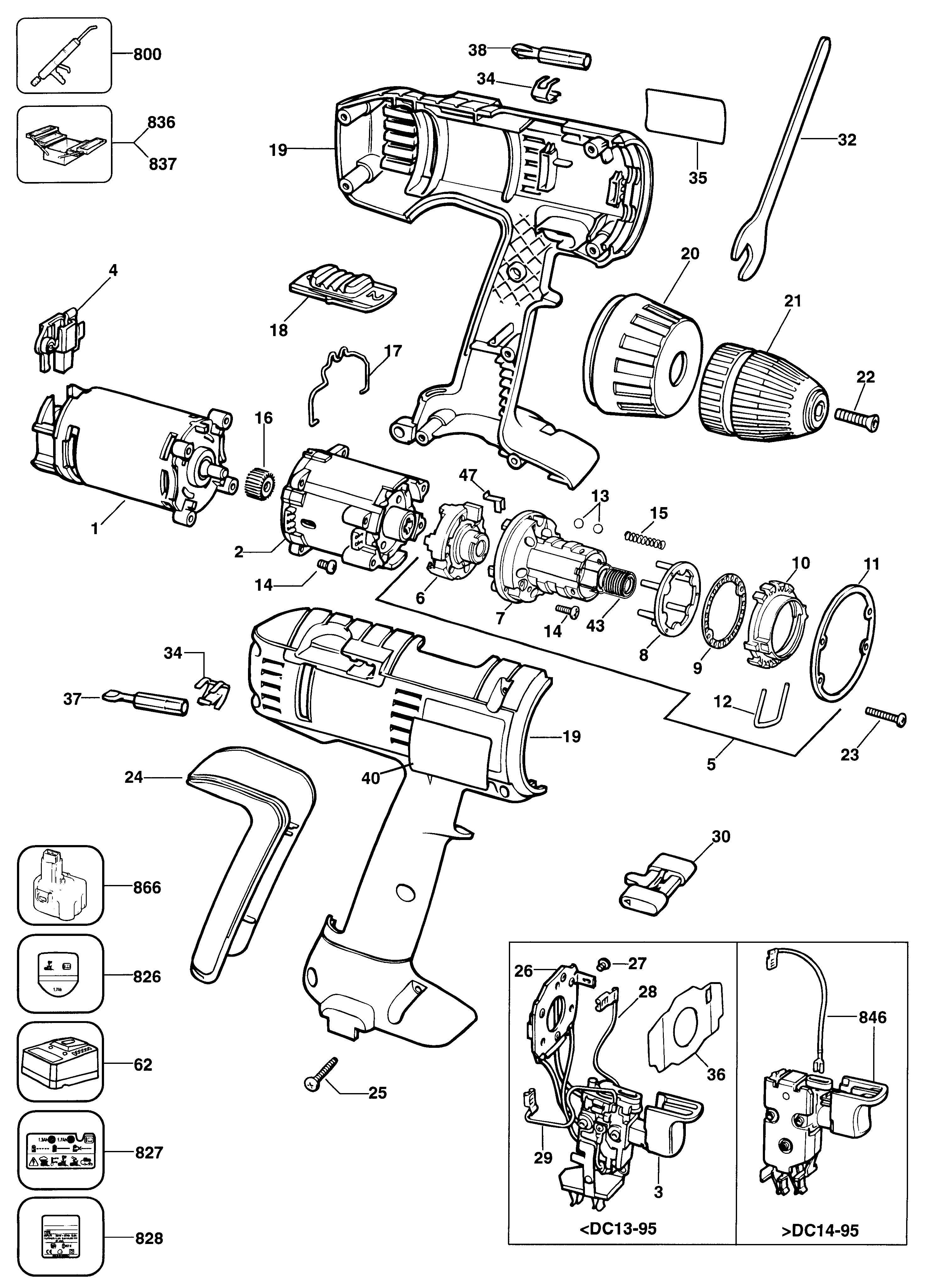

BSA52K CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 580920-06 | 1 | MOTOR SA 12V | GB |  |
||
| 2 | 805080-45 | 1 | GEARBOX SA | GB | |
||
| 4 | 373091-02 | 2 | BRUSH PAIR SA | GB | |
||
| 5 | 373702-02 | 1 | CLUTCH MODULE | GB | |
||
| 6 | 373704-02 | 1 | END CAP SA | GB | |
||
| 7 | 798966-00 | 1 | HOUSING SA | GB | |
||
| 8 | 798963-01 | 1 | SUPPORT | GB | |
||
| 9 | 798708 | 1 | PLATE | GB | |
||
| 10 | 798709-00 | 1 | NUT | GB | |
||
| 11 | 805004-00 | 1 | WASHER | GB | |
||
| 12 | 798959-00 | 1 | CLIP | GB |  |
||
| 13 | 386690-00 | 12 | BALL | STEEL, 5MM | GB | |
|
| 14 | 798486 | 6 | SCREW | GB | |
||
| 15 | 798707 | 6 | SPRING | GB | |
||
| 16 | 380325-02 | 1 | PINION | GB | |
||
| 17 | 799024 | 1 | SPRING | GB | |
||
| 18 | 799025-01 | 1 | SLIDER | GB | |
||
| 19 | 585040-02 | 1 | HOUSING SA | GB | |
||
| 20 | 799019-00 | 1 | RING | GB | |
||
| 21 | 798723-13 | 1 | CHUCK KEYLESS | GB | |
||
| 22 | 810014 | 1 | SCREW | GB | |
||
| 23 | 733886 | 4 | SCREW | GB | |
||
| 24 | 368838 | 1 | COVER REAR | GB | |
||
| 25 | 747329 | 7 | SCREW | GB | |
||
| 27 | 798774 | 1 | SCREW | | GB |
| ||
| 28 | 373091-02 | 1 | BRUSH PAIR SA | GB | |
||
| 29 | 373091-02 | 1 | BRUSH PAIR SA | GB | |
||
| 30 | 806057-01 | 1 | SLIDER | GB | |||
| 32 | 807862 | 1 | SPANNER | TYPE 1 | GB | |
|
| 34 | 798453 | 2 | RETAINER | GB | |
||
| 35 | 805789-01 | 1 | BRAND LABEL | GB | |
||
| 36 | 808980 | 1 | WASHER INSULATING | | GB |
| ||
| 37 | 297564 | 1 | BIT SLOTTED | GB | |
||
| 38 | 297565 | 1 | BIT POZIDRIVE | GB | |
||
| 40 | 370374-12 | 1 | RATING PLATE | GB | |
||
| 43 | 573147-00 | 1 | SPINDLE SA | GB | |
||
| 47 | 807501 | 1 | CLIP | GB | |
||
| 62 | 572576-00 | 1 | CHARGER 7.2V - 18V | GB | |
||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | GB | ||
| 826 | 371133-01 | 1 | IDENTITY LABEL | GB | |
||
| 827 | 371053-01 | 1 | WARNING LABEL | GB | |
||
| 828 | 371054-03 | 1 | LABEL | GB | |
||
| 836 | 559500-99 | 1 | S.T.GAP GAUGE | GB | |
||
| 837 | 559501-99 | 1 | PRESS TOOL | GB | |
||
| 846 | 368832-06 | 1 | SWITCH SA | GB | |
||
| 866 | 582806-00 | 1 | BATTERY 12V - 2.0AH | GB | |
