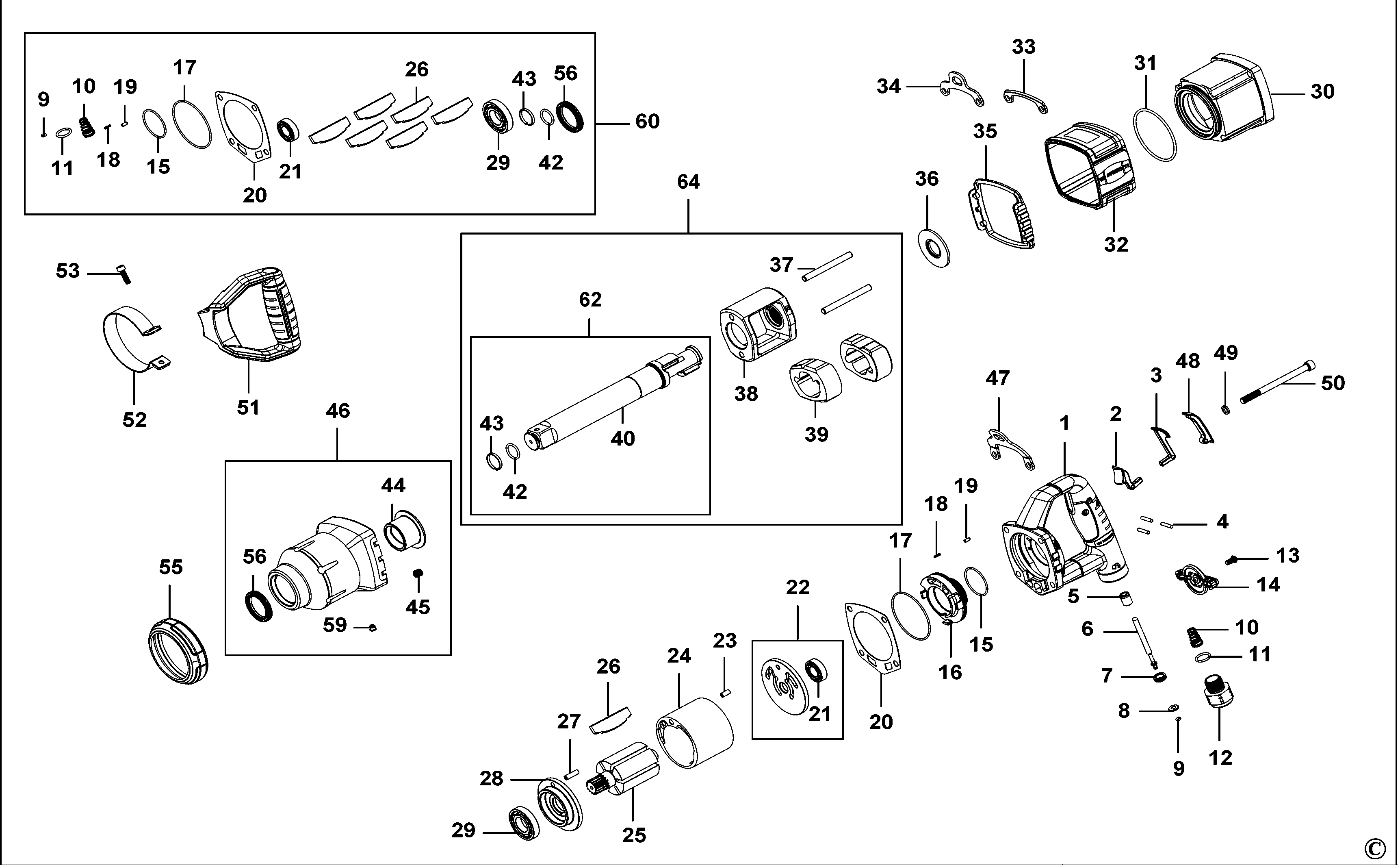

942 PEL2 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 30H100075 | 1 | HANDLE | XJ |  |
||
| 3 | 30Y201085 | 1 | TRIGGER | XJ | |
||
| 3 | 326793-04 | 1 | PAD | 9032 | XJ |  |
|
| 4 | 31R200200 | 3 | PIN | XJ | |
||
| 4 | 745319 | 1 | NUT | XJ | |
||
| 5 | 31R200188 | 1 | BUSHING | XJ | |
||
| 5 | 832484-03 | 1 | INTERSHAFT | XJ | |
||
| 6 | 30Y201087 | 1 | VALVE NEEDLE | XJ | |
||
| 7 | 30Y201088 | 1 | VALVE SEAT | XJ | |
||
| 8 | 30Y201089 | 1 | VALVE | XJ | |
||
| 8 | 402113-01 | 1 | LEVER | XJ | |
||
| 9 | 30R200410 | 1 | O RING | XJ | |
||
| 10 | 31R200199 | 1 | SPRING | XJ | |
||
| 11 | 31R200080 | 1 | O RING | XJ | |
||
| 12 | 31Y200061 | 1 | INLET | XJ | |
||
| 12 | 1003405-00 | 8 | CORDSET | XJ | |||
| 13 | 31R200181 | 1 | SCREW | XJ | |
||
| 13 | 326196-04 | 1 | KITBOX | XJ | |
||
| 14 | 30Y201092 | 1 | KNOB | XJ | |
||
| 15 | 31R200165 | 1 | O RING | XJ | |
||
| 15 | 494040-01 | 1 | BRUSH PAIR 115V | CHUCK S2A | XJ | |
|
| 15 | A24631 | 1 | LOCK NUT | CHUCK NON S2A | XJ | |
|
| 16 | 30Y201093 | 1 | REVERSE VALVE | XJ | |
||
| 16 | 644490-00 | 1 | KITBOX | CHUCK S2A | XJ | |
|
| 16 | 837745 | 1 | RETAINER | CHUCK NON S2A | XJ | ||
| 17 | 30R200413 | 1 | O RING | XJ | |
||
| 17 | N044664 | 1 | RATING PLATE | XJ | |
||
| 18 | 30R200414 | 1 | SPRING | XJ | |
||
| 18 | 1347355 | 2 | HOLDER | DELTA | XJ | ||
| 19 | 30R200415 | 1 | PIN | XJ | |
||
| 19 | 279768-00 | 1 | HOUSING UPPER | XJ | |
||
| 20 | 30G200158 | 1 | GASKET | XJ | |
||
| 20 | 372274-00 | 1 | GEAR | XJ | |
||
| 21 | 30R200416 | 1 | BEARING,BALL | XJ | |
||
| 21 | 326164-00 | 1 | CHUCK KEYLESS | XJ | |
||
| 22 | 30M200140 | 1 | PLATE SA | XJ | |
||
| 22 | 731441 | 1 | PUNCH | XJ | |
||
| 23 | 30R200417 | 1 | SPIROL PIN | XJ | |
||
| 24 | 30M200141 | 1 | CYLINDER | XJ | |
||
| 24 | 173269-00 | 1 | SCREW | XJ | |
||
| 25 | 30M200142 | 1 | ROTOR | XJ | |
||
| 25 | 329866-02 | 1 | RATING PLATE | XJ | |
||
| 26 | 30M100147 | 1 | SERVICE KIT | XJ | |
||
| 26 | 579824-02 | 1 | FIELD 230V | XJ | |||
| 27 | 30R200418 | 1 | SPIROL PIN | XJ | |
||
| 28 | 30M200144 | 1 | PLATE | XJ | |
||
| 29 | 31R200144 | 1 | BEARING,BALL | XJ | |
||
| 29 | 817890 | 1 | KNOB | XJ | |||
| 30 | 30M200147 | 1 | HOUSING | XJ | |
||
| 30 | 949843-25 | 1 | CABLE | 9032 | XJ | |
|
| 31 | 30R200420 | 1 | O RING | XJ | |
||
| 32 | 30H200462 | 1 | MOTOR COVER | XJ | |
||
| 33 | 30Y201094 | 1 | INSERT | XJ | |
||
| 34 | 30Y201095 | 1 | HOOK | XJ | |
||
| 35 | 30G200159 | 1 | GASKET | XJ | |
||
| 36 | 31R200149 | 1 | WASHER | XJ | |
||
| 37 | 30D200189 | 2 | PIN | XJ | |
||
| 38 | 30D200190 | 1 | HAMMER FRAME | XJ | |
||
| 39 | 30D200191 | 1 | HAMMER | XJ | |
||
| 40 | 30D200192 | 1 | ANVIL | XJ | |
||
| 42 | 31R200192 | 1 | O RING | XJ | |
||
| 43 | 31R200193 | 1 | RETAINER | XJ | |
||
| 44 | 30Y201091 | 1 | BUSHING | XJ | |
||
| 45 | 31R200196 | 4 | HELI-COIL | XJ | |
||
| 46 | 30H100072 | 1 | HOUSING SA | XJ | |
||
| 47 | 30Y201096 | 1 | HOOK | XJ | |
||
| 48 | 30Y201097 | 1 | INSERT | XJ | |
||
| 49 | 31R200148 | 4 | WASHER | XJ | |
||
| 50 | 30R200421 | 4 | SCREW | XJ | |
||
| 51 | 30Y100012 | 1 | SIDE HANDLE | XJ | |
||
| 52 | 30Y201098 | 1 | STRAP | XJ | |
||
| 53 | 31R100003 | 2 | SCREW | XJ | |
||
| 55 | 30Y201099 | 1 | RUBBER BOOT | XJ | |
||
| 56 | 30R200422 | 1 | SEAL | XJ | |
||
| 59 | 31R200138 | 1 | STOP | XJ | |
||
| 60 | 30M100145 | 1 | SERVICE KIT | XJ | |
||
| 62 | 30D100069 | 1 | ANVIL ASSEMBLY | XJ | |
||
| 64 | 30D100071 | 1 | HAMMER MODULE | XJ | |
