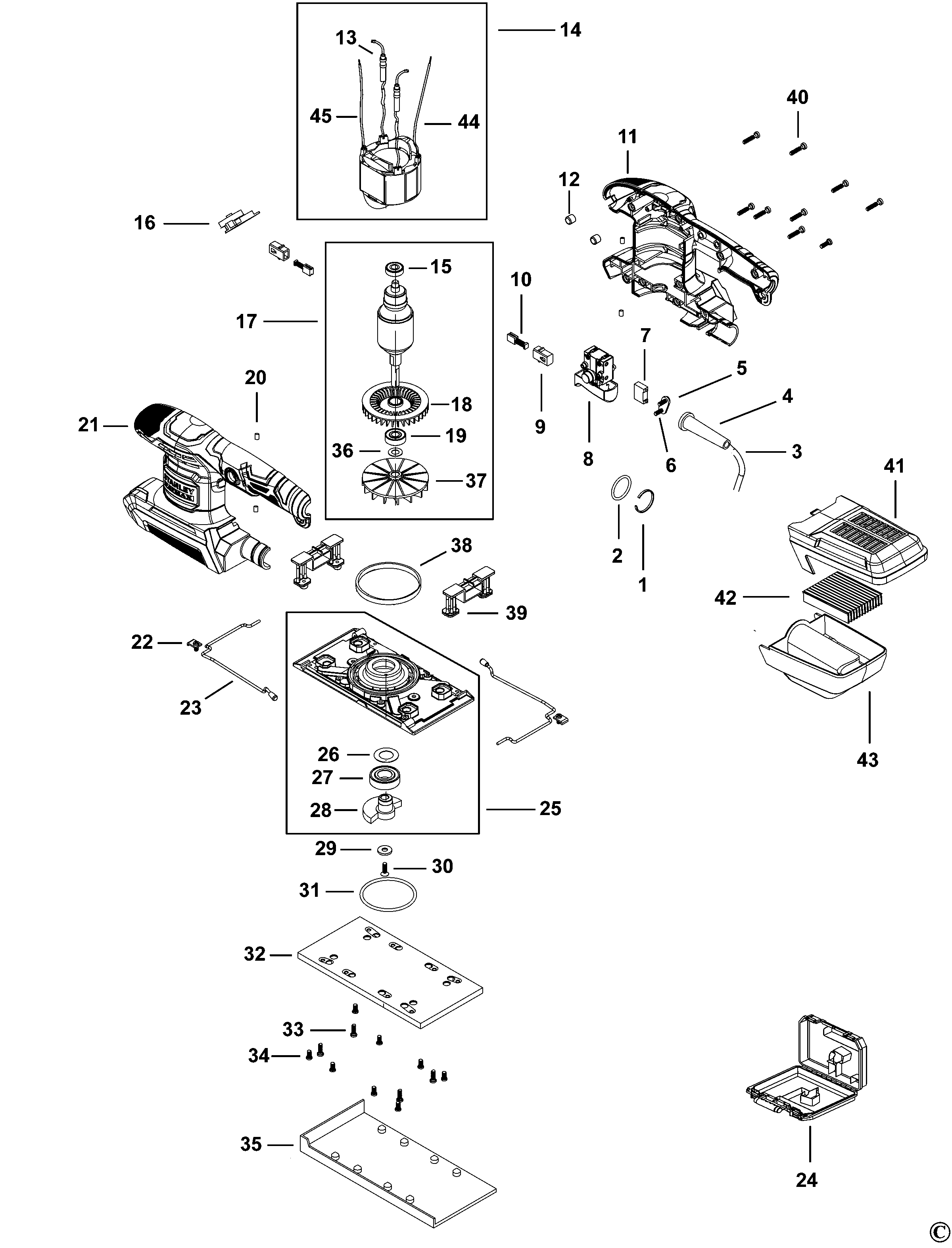

KFFMEW210 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004766-19 | 1 | CIRCLIP | GB |  |
||
| 2 | 1004766-20 | 1 | O RING | GB | |
||
| 3 | 1004766-22 | 1 | CORDSET | GB | |
||
| 4 | 5140187-27 | 1 | CORD PROTECTOR | GB | |
||
| 5 | 5170026-80 | 1 | CORD CLAMP | GB | |
||
| 6 | 5140187-38 | 2 | SCREW | ST3.9 X 12 | GB | |
|
| 7 | 1004766-24 | 1 | CAPACITOR | GB | |
||
| 8 | 5140231-84 | 1 | SWITCH | GB | |
||
| 9 | 5140231-57 | 2 | BRUSH HOLDER | GB | |
||
| 10 | 1004766-25 | 1 | BRUSH PAIR | GB | |
||
| 11 | 1004766-26 | 1 | CLAMSHELL RH | GB | |
||
| 12 | 5140231-54 | 2 | BUFFER | GB | |
||
| 13 | 1004766-27 | 2 | INDUCTOR | GB | |
||
| 14 | 1004766-28 | 1 | FIELD SA | GB | |
||
| 15 | 5140136-46 | 1 | BEARING | GB | |
||
| 16 | 1004766-29 | 1 | PCB | GB | |
||
| 17 | 1004766-30 | 1 | ARMATURE SA | GB | |
||
| 18 | 1004766-31 | 1 | FAN | GB | |
||
| 19 | 1004766-32 | 1 | BEARING | GB | |
||
| 20 | 5140231-76 | 1 | BUFFER | GB | |
||
| 21 | 1004766-33 | 1 | CLAMSHELL LH | GB | |
||
| 22 | 1004766-34 | 2 | CLAMP | GB | |
||
| 23 | 1004766-35 | 2 | CLAMP | GB | |
||
| 24 | 1004766-36 | 1 | KITBOX | GB | |||
| 25 | 1004766-37 | 1 | BASEPLATE SA | GB | |
||
| 26 | 5140231-35 | 1 | WASHER | GB | |
||
| 27 | 1004766-38 | 1 | BEARING | GB | |
||
| 28 | 1004766-39 | 1 | COUNTER BALANCE | GB | |
||
| 29 | 1004766-40 | 1 | WASHER | GB | |
||
| 30 | 1004766-41 | 1 | SCREW | GB | |
||
| 31 | 1004766-42 | 1 | RUBBER | GB | |
||
| 32 | 1004766-43 | 1 | PAD | GB | |
||
| 33 | 5140187-38 | 4 | SCREW | ST3.9 X 12 | GB | |
|
| 34 | 1004766-44 | 10 | SCREW | GB | |
||
| 35 | 1004766-45 | 1 | PUNCH | GB | |
||
| 36 | 1004766-46 | 1 | WASHER | GB | |
||
| 37 | 1004766-47 | 1 | FAN | GB | |
||
| 38 | 1004766-48 | 1 | SEAL | GB | |
||
| 39 | 1004766-49 | 2 | BAR | GB | |
||
| 40 | 5140136-60 | 9 | SCREW | GB | |
||
| 41 | 1004766-50 | 1 | COVER | GB | |
||
| 42 | 1004766-51 | 1 | FILTER | GB | |
||
| 43 | 1004766-52 | 1 | BOX | GB |  |
||
| 44 | 1004766-53 | 1 | WIRE | GB | |
||
| 45 | 1004766-54 | 1 | WIRE | GB | |
