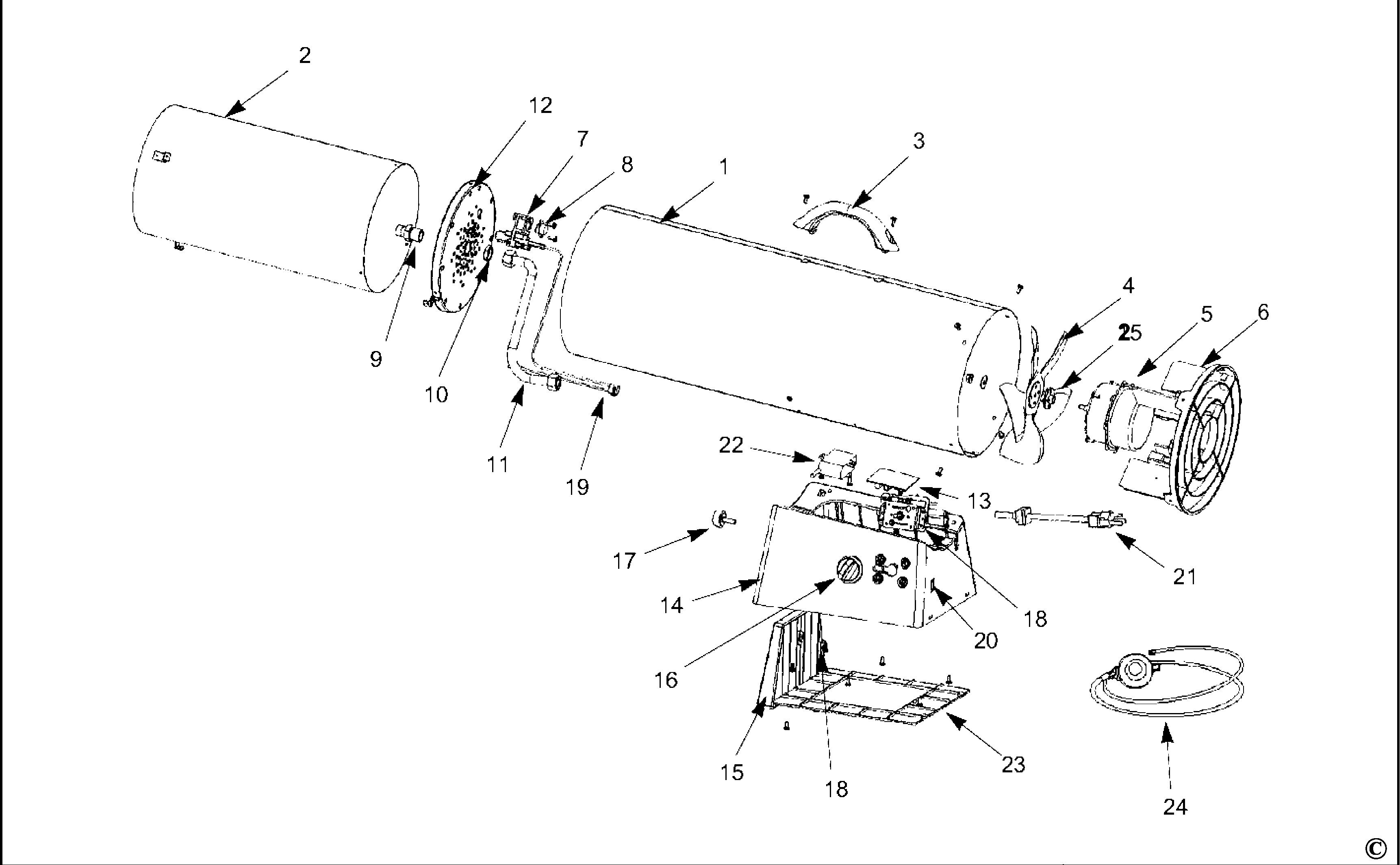

ST-100V-GFA-E HEATER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004746-90 | 1 | HOUSING | GB |  |
||
| 1 | 497076-05 | 1 | BATTERY 14.4V - 1.2AH | NiMH - A9273 | GB |  |
|
| 2 | 1004746-91 | 1 | HOUSING | Inner | GB | |
|
| 2 | 479973-00 | 1 | TUBE OIL | 100ml | GB | ||
| 3 | 1004746-74 | 1 | HANDLE | GB | |
||
| 4 | 1004746-92 | 1 | BLADE | GB | |
||
| 4 | 90556900 | 1 | RATING PLATE | GB | |
||
| 5 | 1004746-93 | 1 | MOTOR SA | GB | |
||
| 5 | 587262-00 | 1 | DRIVE PULLEY | GB | |
||
| 6 | 1004746-94 | 1 | GUARD | Fan | GB | |
|
| 6 | 243149-00 | 1 | INLET CAP | GB | |||
| 7 | 1004746-95 | 1 | BRACKET | GB | |
||
| 7 | 5100028-17 | 1 | CLAMSHELL SET | GB | |
||
| 8 | 1004746-96 | 1 | SWITCH TERMINAL | GB | |
||
| 8 | 486340-00 | 1 | MOTOR & PINION | GB | |||
| 8 | 498460-10 | 1 | TRANSMISSION ASSY. | GB | |||
| 9 | 1004747-12 | 1 | NOZZLE | GB | |
||
| 9 | 571746-02 | 1 | CLAMSHELL | GB | |
||
| 10 | 1004747-13 | 1 | NUT | GB | |
||
| 10 | 398646-00 | 1 | ADAPTOR | GB | |
||
| 11 | 1004747-14 | 1 | TUBE | GB | |
||
| 11 | 389300-00 | 1 | BUTTON | GB | |
||
| 12 | 1004747-15 | 1 | CAP SA | Inner | GB | |
|
| 12 | N142238 | 1 | NAME PLATE | GB | |||
| 13 | 1004746-73 | 1 | PCB | GB | |
||
| 13 | 395656-00 | 1 | NP:DW925 T1 | GB | |||
| 14 | 1004747-01 | 1 | BASE SA | GB | |
||
| 14 | N075277 | 1 | RATING PLATE | BR | GB | ||
| 15 | 1004747-02 | 1 | CONTROLLER | GB | |
||
| 15 | 90520283 | 2 | POLE PIECE SA | GB | |||
| 16 | 1004746-75 | 1 | KNOB | Valve | GB | |
|
| 16 | N108694 | 12 | GREASE | NYE Nyogel 760G 30ml | GB | ||
| 17 | 1004747-03 | 1 | BOLT | GB | |
||
| 18 | 1004747-16 | 1 | VALVE | GB | |
||
| 19 | 1004746-76 | 1 | CABLE | Thermal Switch | GB | |
|
| 20 | 1004747-17 | 1 | SWITCH | GB | |
||
| 22 | 1004746-78 | 1 | SOLENOID ASSEMBLY | GB | |
||
| 23 | 1004747-06 | 1 | COVER SA | Base | GB | |
|
| 24 | 1004747-20 | 1 | REGULATOR | GB | |
||
| 24 | 1004747-22 | 1 | REGULATOR | Romania | GB | |
|
| 25 | 1004750-62 | 1 | PAD SA | GB | |
||
| 861 | 150794-03 | 1 | ACCY. BAG | GB |
