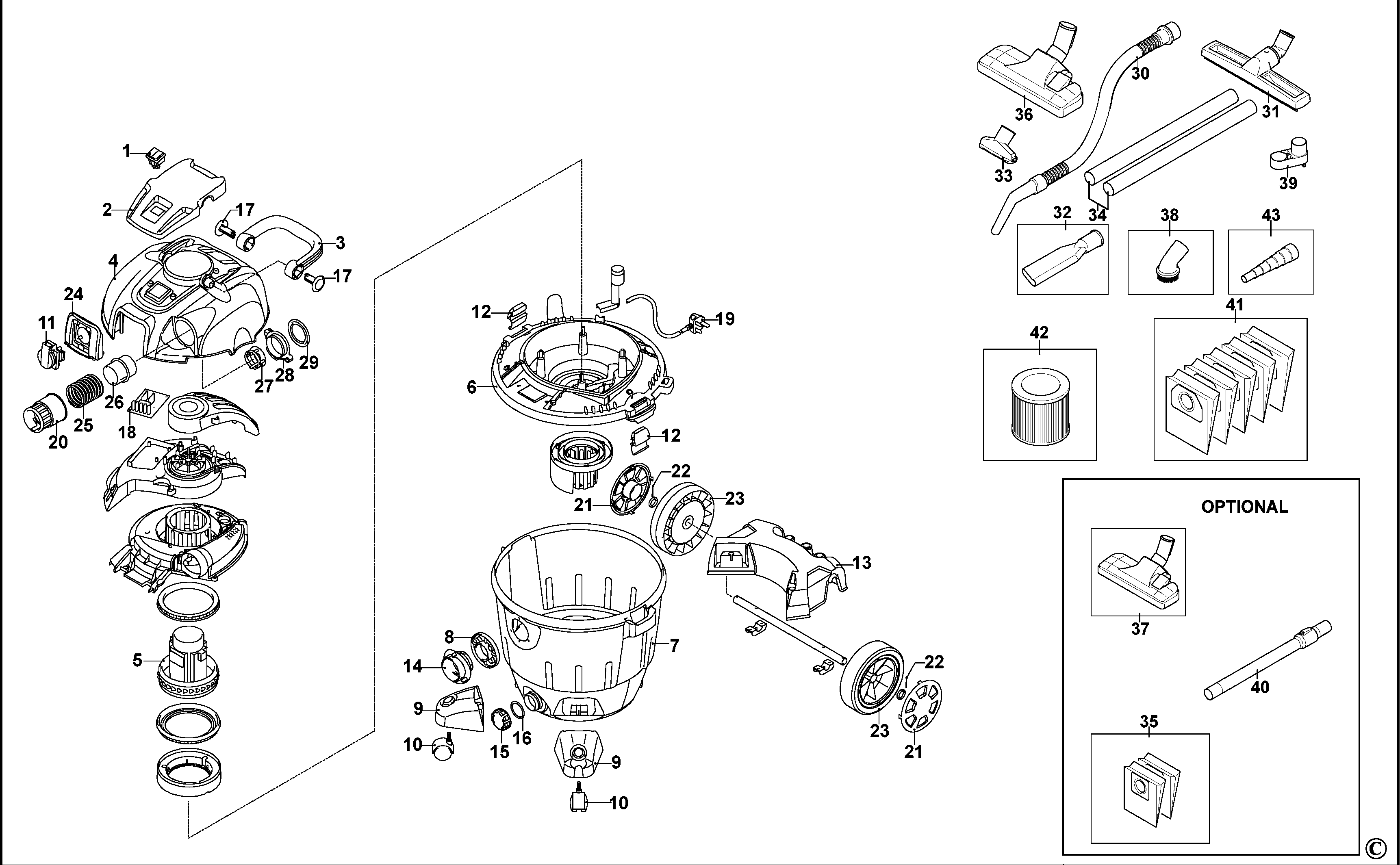

SXFVC35PTDE VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4341010 | 1 | SWITCH | GB |  |
||
| 2 | 4341210 | 1 | COVER-TOP | GB | |
||
| 3 | 4341150 | 1 | HANDLE | GB | |
||
| 4 | 4341140 | 1 | COVER SA | GB | |
||
| 5 | 4341050 | 1 | MOTOR SA | GB |  |
||
| 6 | 4341120 | 1 | BASE SA | GB | |
||
| 7 | 4341520 | 1 | TANK | GB | |
||
| 8 | 4340100 | 1 | SUPPORT | GB | |
||
| 9 | 4341100 | 1 | SUPPORT | GB | |
||
| 10 | 4340990 | 1 | WHEEL | GB | |
||
| 11 | 1004760-56 | 1 | SOCKET | GB | |
||
| 12 | 4341080 | 1 | HOOK | GB | |
||
| 13 | 4341220 | 1 | BASE SA | GB | |
||
| 14 | 4340090 | 1 | COUPLING | GB | |
||
| 15 | 4341510 | 1 | PLUG | GB | |
||
| 16 | 4340390 | 1 | O RING | GB | |
||
| 17 | 4341160 | 1 | CAP | GB | |
||
| 18 | 4341030 | 1 | BOARD | GB | |
||
| 19 | 1004760-57 | 1 | CORDSET | GB | |
||
| 20 | 4341480 | 1 | COUPLING | GB | |
||
| 21 | 4341530 | 1 | GUARD | GB | |
||
| 22 | 4340900 | 1 | PIN | GB | |
||
| 23 | 4340890 | 1 | WHEEL | GB | |
||
| 24 | 4341500 | 1 | GUARD | GB | |
||
| 25 | 4341040 | 1 | SPRING | GB | |
||
| 26 | 4341180 | 1 | COUPLING | GB | |
||
| 27 | 4341110 | 1 | SUPPORT | GB | |
||
| 28 | 4341190 | 1 | COUPLING | GB | |
||
| 29 | 4341200 | 1 | GASKET | GB | |
||
| 30 | 4341310 | 1 | PIPE SA | GB | |
||
| 31 | 4341430 | 1 | BRUSH SA | GB | |
||
| 32 | 1004708-16 | 1 | NOZZLE | GB | |
||
| 33 | 4340180 | 1 | BRUSH | GB | |
||
| 34 | 4340230 | 1 | PIPE | Metal | GB | |
|
| 35 | 1004708-21 | 1 | FILTER | Cloth x2 | GB | |
|
| 36 | 4341340 | 1 | BRUSH SA | GB | |
||
| 37 | 41855 | 1 | BRUSH SA | GB | |
||
| 38 | 1004708-17 | 1 | BRUSH SA | Fixed Brush | GB | |
|
| 39 | 4341400 | 1 | HOOK | GB | |
||
| 40 | 4340240 | 1 | PIPE SA | Extendible | GB | |
|
| 41 | 1004708-19 | 1 | FILTER | Paper x5 | GB | |
|
| 42 | 1004708-22 | 1 | FILTER | Cartridge | GB | |
|
| 43 | 41865 | 1 | NOZZLE | GB | |
