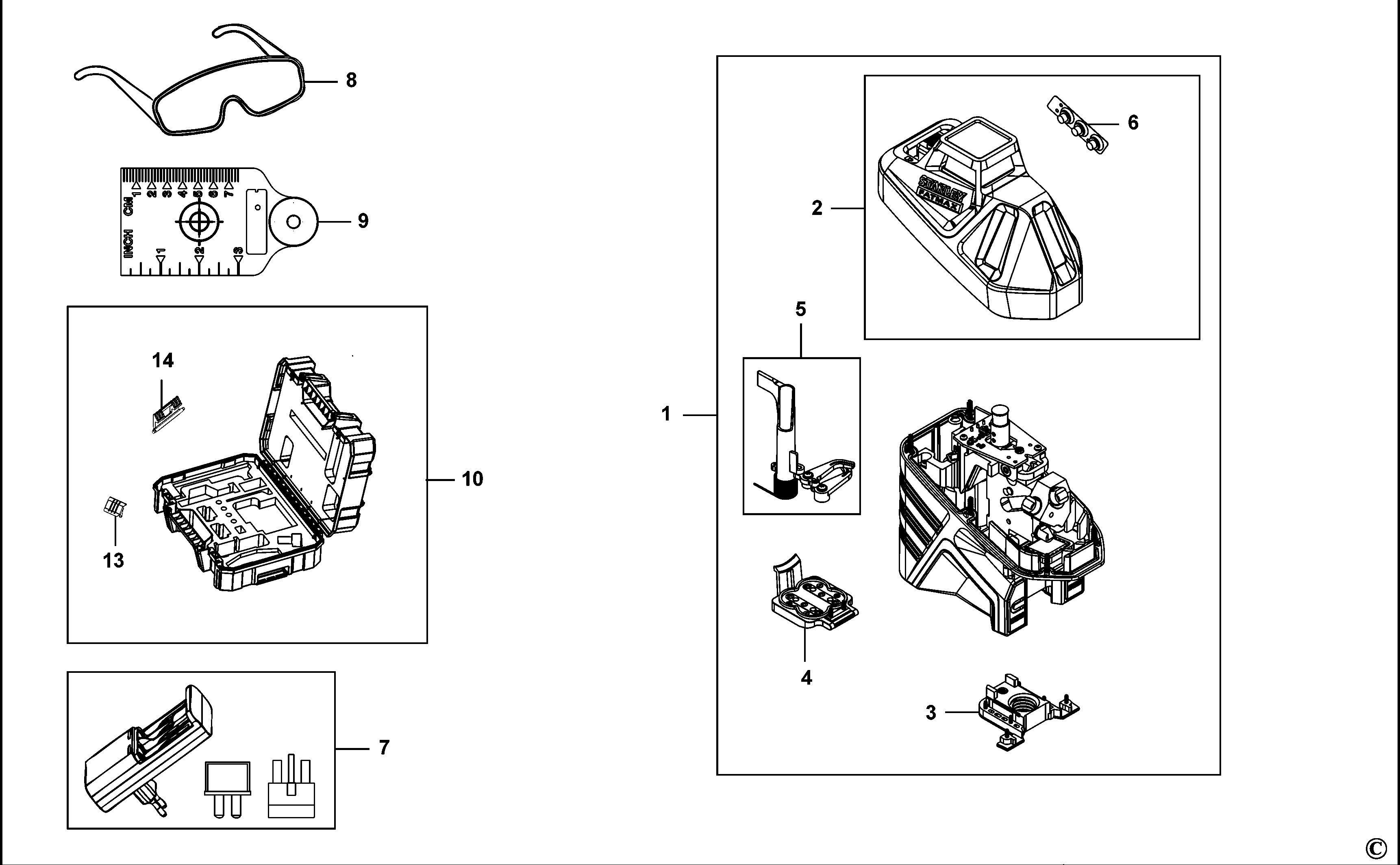

FMHT1-77416 CROSSLINE LASER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N536408 | 1 | MAIN UNIT SA | GB |  |
||
| 2 | N536410 | 1 | HOUSING UPPER | GB | |
||
| 3 | N531035 | 1 | MOUNT | GB | |
||
| 4 | N536412 | 1 | BATTERY COVER | GB | |
||
| 5 | N536415 | 1 | LOCK SA | GB | |
||
| 6 | N555331 | 1 | LABEL ELECTRONIC | GB | |
||
| 7 | N531036 | 1 | BATTERY CHARGER | AA NiMH | GB | |
|
| 8 | N437437 | 1 | SAFETY GLASSES | GB | |
||
| 9 | N437438 | 1 | TARGET | GB | |
||
| 10 | N473297 | 1 | KITBOX | GB | |
||
| 13 | P910190 | 2 | LATCH | GB | |
||
| 14 | H1500082008 | 2 | LATCH | GB | |||
| 102 | 249225-02 | 1 | NUT WING | TYPE 1A FROM DC18-98 | GB |  |
|
| 102 | 323459-00 | 1 | OILER | TYPE 3 | GB | |
|
| 103 | 401057-00 | 1 | HANDLE SA | GB | |
||
| 104 | 283264-01 | 1 | CORDSET | GB | |
||
| 105 | 327550-00 | 1 | GEARCASE SA | GB | |||
| 110 | 326961-01 | 1 | BRUSH 120V | GB | |
||
| 116 | 6010029-38 | 1 | COVER | GB | |
||
| 117 | ES0441330B | 1 | SPACER | GB | |
||
| 118 | 323159-49 | 1 | PULLEY REPAIR KIT | GB | |
||
| 119 | 322939-01 | 1 | SPINDLE | GB | |
||
| 120 | 579317-00 | 2 | BLADE & GEAR SA | GB | |||
| 121 | 916425 | 2 | BRUSH SA | GB | |
||
| 122 | N045773 | 2 | RATING PLATE | GB | |
||
| 123 | 247856-00 | 2 | GUIDE | GB | |||
| 125 | 6010036-15 | 1 | MOUNT | ACTUATING LOCK MOUNT | GB | ||
| 126 | 322097 | 1 | KNOB | GB | |
||
| 127 | 578661-07 | 3 | DOOR | GB | |
||
| 128 | 6010028-97 | 1 | CORDSET | 230V | GB | |
|
| 129 | 323635-07 | 1 | LEAD 100MM | GB | |
||
| 130 | 372024 | 1 | CAPACITOR | GB | |
||
| 133 | 323048 | 1 | COVER SA | GB | |
||
| 134 | 584422-00 | 4 | CYLINDER SA | GB | |
||
| 135 | 323569-00 | 1 | AXLE | GB | |
||
| 137 | 573732-00 | 2 | RETAINER | GB | |||
| 138 | 588788-00 | 1 | PLATEN | GB | |
||
| 139 | 6010073-05 | 1 | BLENDER | BLENDER GROUP | GB | |
|
| 140 | 6010028-96 | 1 | PCB 115V | 115V | GB | |
|
| 141 | 6010029-21 | 2 | ADAPTOR | OUTLET | GB | |
|
| 142 | 629444-00 | 2 | SPINDLE LOCK | GB | |
||
| 144 | 568330-00 | 1 | WING NUT | GB | |
||
| 145 | 90538466 | 3 | SLEEVE BEARING | GB | |
||
| 146 | 584263-01 | 1 | RATING PLATE | GB | |
||
| 149 | 401056-03 | 1 | HANDLE SA | GB | |
||
| 152 | 370923 | 1 | ACTUATOR | GB | |
||
| 154 | 6010029-70 | 11 | WASHER | GB | |
||
| 155 | 321200 | 1 | BELT DRIVE | GB | |
||
| 156 | 90556820 | 1 | RATING PLATE | GB | |
||
| 157 | 568314-00 | 1 | BRUSH COVER | GB | |
||
| 158 | 568315-00 | 1 | SCREW | GB | |
||
| 159 | 568334-00 | 1 | BRUSH | GB | |
||
| 161 | 6010074-34 | 2 | ATTACHMENT | GRATING MILL ASSEMB | GB | |
|
| 163 | N548750 | 2 | MOTOR & FAN | GB | |||
| 164 | 568345-00 | 2 | BEARING | GB | |
||
| 172 | 401057-05 | 1 | HANDLE SA | GB | |
||
| 177 | 401039-00 | 1 | KITBOX | GB | |
||
| 178 | 568271-00 | 1 | ARMATURE SA | GB | |
||
| 179 | 567850-00 | 1 | CORDSET | GB | |
||
| 800 | 6010023-08 | 1 | BASE | CAST IRON | GB | |
