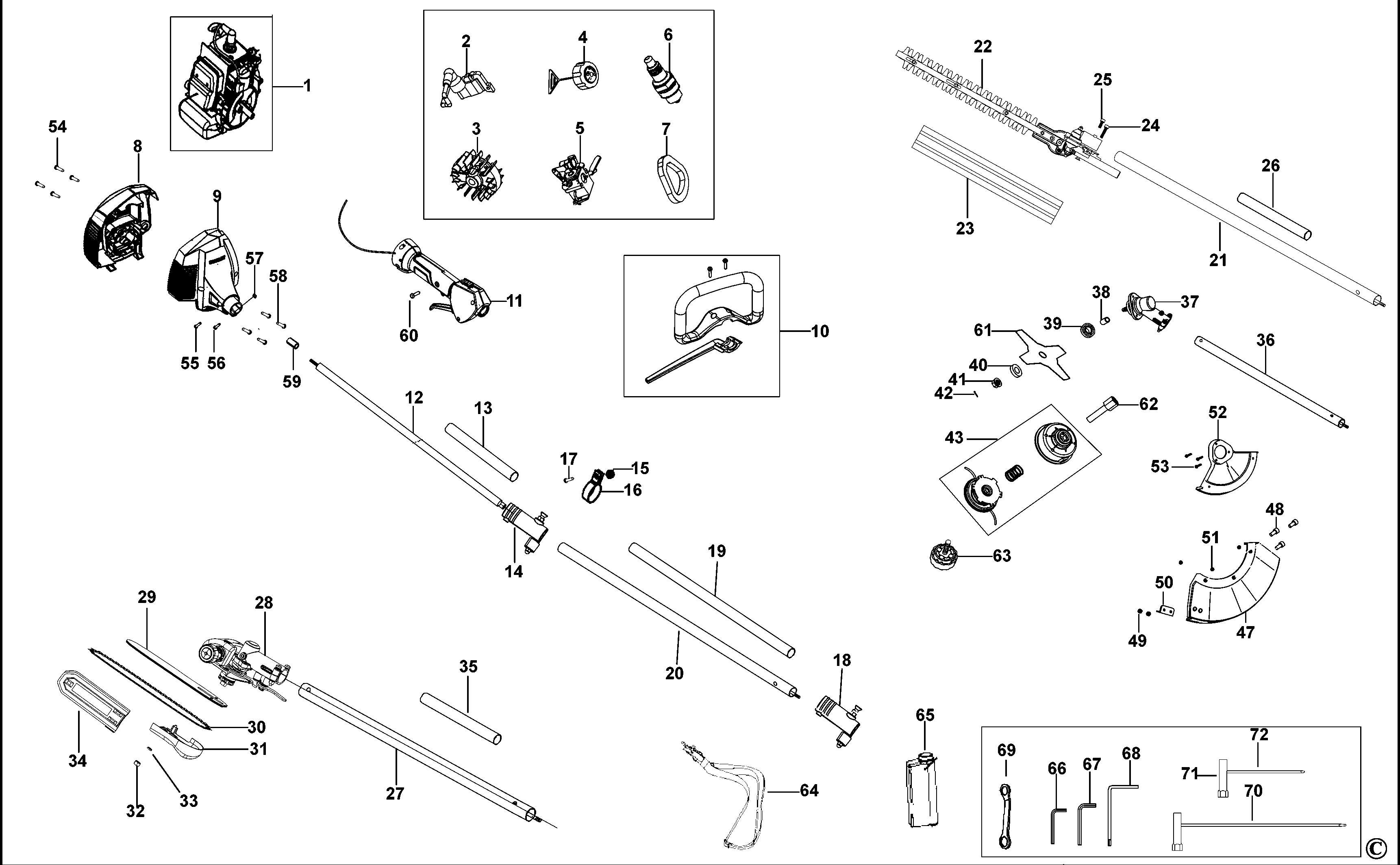

STR-4IN1 PETROL STRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | E604200040A | 1 | MOTOR SA | XJ |  |
||
| 2 | E604200040A1 | 1 | COIL SA | XJ | |
||
| 3 | E604200040A2 | 1 | FLYWHEEL | XJ | |||
| 4 | E604200040A3 | 1 | CAP SA | XJ | |
||
| 5 | E604200040A4 | 1 | CARBURETTOR SA | XJ |  |
||
| 6 | E604200040A5 | 1 | SPARK PLUG | XJ | |
||
| 7 | E604200040A6 | 1 | FILTER | XJ | |
||
| 8 | E604200040B | 1 | MOTOR COVER | XJ | |
||
| 9 | E604200040C | 1 | COVER MOTOR SA | XJ | |
||
| 10 | E604200040D | 1 | HANDLE SA | XJ | |
||
| 11 | E604200040E | 1 | COVER | XJ | |
||
| 12 | E604200040F1 | 1 | TUBE SA | XJ | |
||
| 13 | E604200040F2 | 1 | TUBE | XJ | |
||
| 14 | E604200040F3 | 1 | COUPLING | XJ | |
||
| 15 | E604200040G1 | 1 | SCREW | XJ | |
||
| 16 | E604200040G2 | 1 | CLIP | XJ | |
||
| 17 | E604200040G3 | 1 | NUT M5 | XJ | |
||
| 18 | E604200040H1 | 1 | COUPLING | XJ | |
||
| 19 | E604200040H2 | 1 | TUBE | XJ | |
||
| 20 | E604200040H3 | 1 | TUBE | XJ | |
||
| 21 | E604200040I1 | 1 | TUBE SA | XJ | |
||
| 22 | E604200040I2 | 1 | BLADE SA | XJ | |
||
| 23 | E604200040I3 | 1 | SHEATH | XJ | |
||
| 24 | E604200040I4 | 1 | SCREW | XJ | |
||
| 25 | E604200040I5 | 1 | SCREW | XJ | |
||
| 26 | E604200040I6 | 1 | COVER | XJ | |
||
| 27 | E604200040J1 | 1 | TUBE SA | XJ | |
||
| 28 | E604200040J2 | 1 | TRANSMISSION SA | XJ | |||
| 29 | E604200040J3 | 1 | BAR | XJ | |
||
| 30 | E604200040J4 | 1 | CHAIN | XJ | |
||
| 31 | E604200040J5 | 1 | COVER | XJ | |
||
| 32 | E604200040J6 | 1 | NUT M8 | XJ | |
||
| 33 | E604200040J7 | 1 | WASHER | XJ | |
||
| 34 | E604200040J8 | 1 | SHEATH | XJ | |
||
| 35 | E604200040J9 | 1 | COVER | XJ | |
||
| 36 | E604200040K1 | 1 | TUBE SA | XJ | |
||
| 37 | E604200040K2 | 1 | HOUSING GEAR SA | XJ | |
||
| 38 | E604200040K3 | 1 | SPACER | XJ | |
||
| 39 | E604200040K4 | 1 | Seat | XJ | |
||
| 40 | E604200040K5 | 1 | RETAINER | XJ | |
||
| 41 | E604200040K6 | 2 | NUT | XJ | |
||
| 42 | E604200040K7 | 2 | PIN | XJ | |
||
| 43 | E604200040L | 1 | SPOOL SA | XJ | |
||
| 47 | E604200040M1 | 1 | GUARD | XJ | |
||
| 48 | E604200040M2 | 3 | SCREW | XJ | |
||
| 49 | E604200040M3 | 2 | SCREW | XJ | |
||
| 50 | E604200040M4 | 1 | GUARD CUT OFF | XJ | |
||
| 51 | E604200040M5 | 3 | BOLT | XJ | |
||
| 52 | E604200040M6 | 1 | GUARD | XJ | |
||
| 53 | E604200040M7 | 3 | SCREW | XJ | |
||
| 54 | E604200040N | 4 | SCREW | XJ | |
||
| 55 | E604200040O | 1 | SCREW | XJ | |
||
| 56 | E604200040P | 1 | SCREW | XJ | |
||
| 57 | E604200040Q | 1 | NUT M5 | XJ | |
||
| 58 | E604200040R | 4 | SCREW | XJ | |
||
| 59 | E604200040S | 1 | SLEEVE | XJ | |
||
| 60 | E604200040T | 2 | SCREW | XJ | |
||
| 61 | E604200040U | 1 | BLADE | XJ | |
||
| 62 | E604200040V | 1 | COUPLING | XJ | |
||
| 63 | E604200040W | 1 | KNOB | XJ | |
||
| 64 | E604200040X1 | 1 | BELT | XJ | |
||
| 65 | E604200040X2 | 1 | BOTTLE | XJ | |
||
| 66 | E604200040X3 | 1 | SCREWDRIVER-SET | XJ | |
||
| 67 | E604200040X4 | 1 | HEX KEY | XJ | |
||
| 68 | E604200040X5 | 1 | SPANNER | XJ | |
||
| 69 | E604200040X6 | 1 | SPANNER | XJ | |
||
| 70 | E604200040X7 | 1 | SPANNER | XJ | |
||
| 71 | E604200040X8 | 1 | SOCKET | XJ | |
||
| 72 | E604200040X9 | 1 | SCREWDRIVER-SET | XJ | |
