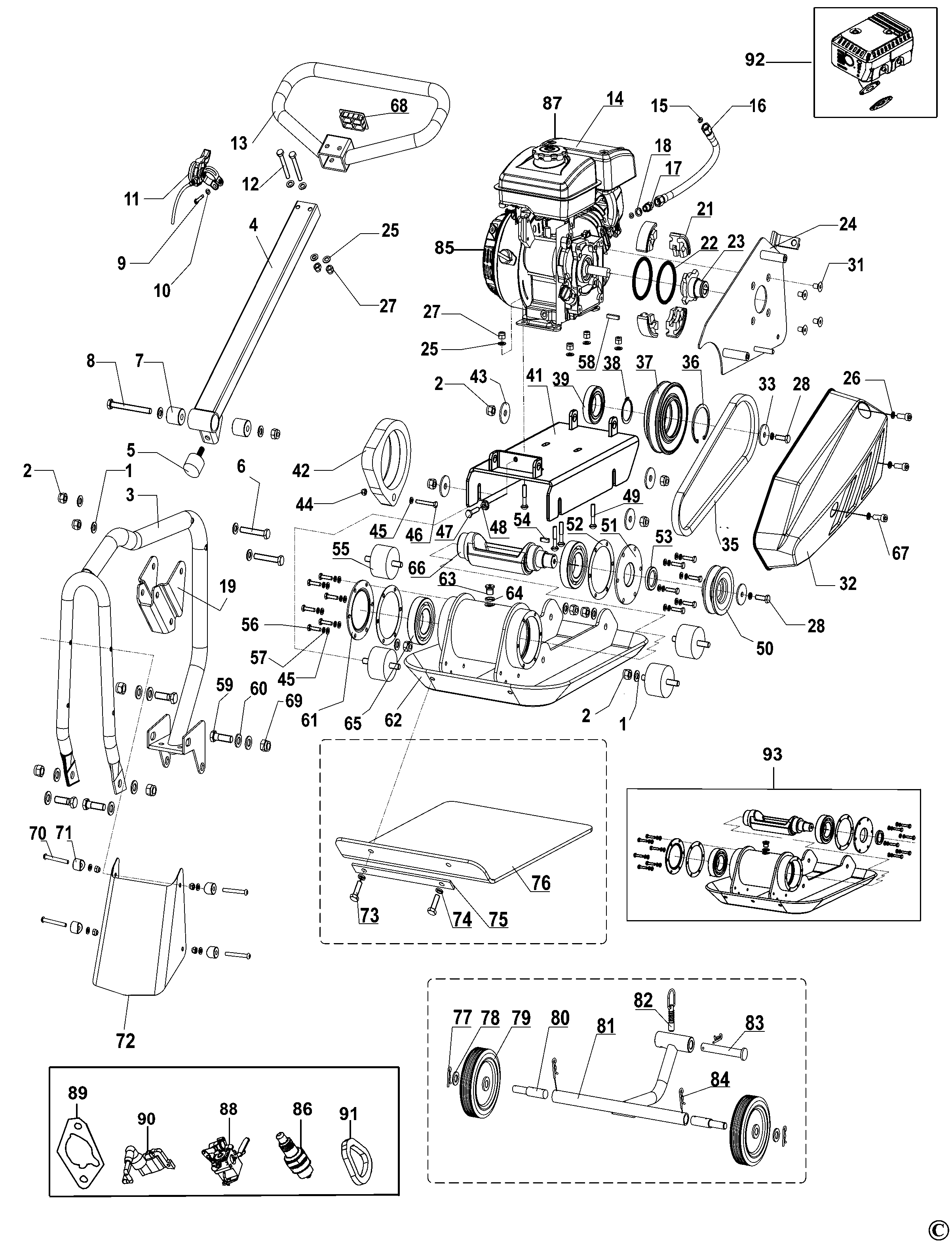

SGC-8000N COMPACTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | E6043000301 | 10 | WASHER | XJ |  |
||
| 2 | E6043000302 | 7 | NUT | XJ | |
||
| 3 | E6043000303 | 1 | HANDLE | XJ | |
||
| 4 | E6043000304 | 1 | BRACKET | XJ | |
||
| 5 | E6043000305 | 1 | SHOCK ABSORBER | XJ | |
||
| 6 | E6043000306 | 2 | BOLT | XJ | |
||
| 7 | E6043000307 | 2 | SLEEVE | XJ | |
||
| 8 | E6043000308 | 1 | BOLT | XJ | |
||
| 9 | E6043000309 | 1 | BOLT | XJ | |
||
| 10 | E60430003010 | 1 | WASHER | XJ | |
||
| 11 | E60430003011 | 1 | LEVER | XJ | |
||
| 12 | E60430003012 | 2 | BOLT | XJ | |
||
| 13 | E60430003013 | 1 | HANDLE | XJ | |
||
| 14 | E60430003014 | 1 | MOTOR | XJ | |
||
| 15 | E60430003015 | 2 | O RING | XJ |  |
||
| 16 | E60430003016 | 1 | HOSE | OIL HOSE | XJ | |
|
| 17 | E60430003017 | 1 | COUPLING | XJ | |
||
| 18 | E60430003018 | 1 | SEAL | XJ | |
||
| 19 | E60430003019 | 1 | CONNECTOR | XJ | |
||
| 21 | E60430003021 | 2 | DISCS | XJ | |
||
| 22 | E60430003022 | 2 | SPRING | XJ | |
||
| 23 | E60430003023 | 1 | SHAFT | XJ | |
||
| 24 | E60430003024 | 1 | BELT COVER | XJ | |
||
| 25 | E60430003025 | 8 | WASHER | XJ | |
||
| 26 | E60430003026 | 4 | WASHER | XJ | |
||
| 27 | E60430003027 | 2 | NUT M8 | XJ | |
||
| 28 | E60430003028 | 2 | BOLT | XJ | |
||
| 31 | E60430003031 | 4 | SCREW | XJ | |
||
| 32 | E60430003032 | 1 | COVER | XJ | |
||
| 33 | E60430003033 | 1 | PLATE | XJ | |
||
| 35 | E60430003035 | 1 | BELT | XJ | |
||
| 36 | E60430003036 | 1 | CIRCLIP | XJ | |
||
| 37 | E60430003037 | 1 | PULLEY | XJ | |
||
| 38 | E60430003038 | 1 | CIRCLIP | XJ | |
||
| 39 | E60430003039 | 1 | BEARING | XJ | |
||
| 41 | E60430003041 | 1 | CHASSIS | XJ | |
||
| 42 | E60430003042 | 1 | PAD | XJ | |
||
| 43 | E60430003043 | 4 | WASHER | XJ | |
||
| 44 | E60430003044 | 5 | NUT | XJ | |
||
| 45 | E60430003045 | 17 | WASHER | XJ | |
||
| 46 | E60430003046 | 1 | BOLT | XJ | |
||
| 47 | E60430003047 | 1 | BOLT | XJ | |
||
| 48 | E60430003048 | 1 | NUT | XJ | |
||
| 49 | E60430003049 | 4 | BOLT | XJ | |
||
| 50 | E60430003050 | 1 | PULLEY | XJ | |
||
| 51 | E60430003051 | 1 | COVER | XJ | |
||
| 52 | E60430003052 | 2 | WASHER | XJ | |
||
| 53 | E60430003053 | 1 | RING | XJ | |
||
| 54 | E60430003054 | 1 | KEY | XJ | |
||
| 55 | E60430003055 | 4 | SHOCK ABSORBER | XJ | |
||
| 56 | E60430003056 | 12 | BOLT | XJ | |
||
| 57 | E60430003057 | 12 | WASHER 6 | XJ | |
||
| 58 | E60430003058 | 1 | KEY | XJ | |
||
| 59 | E60430003059 | 4 | BOLT | XJ | |
||
| 60 | E60430003060 | 8 | WASHER | XJ | |
||
| 61 | E60430003061 | 1 | COVER | XJ | |
||
| 62 | E60430003062 | 1 | PLATE | XJ | |
||
| 63 | E60430003063 | 1 | PLUG | XJ | |
||
| 64 | E60430003064 | 1 | SEAL | XJ | |
||
| 65 | E60430003065 | 2 | BEARING | XJ | |
||
| 66 | E60430003066 | 1 | SHAFT | XJ | |
||
| 67 | E60430003067 | 3 | SCREW | XJ | |
||
| 68 | E60430003068 | 1 | PLUG | XJ | |
||
| 69 | E60430003069 | 4 | NUT | XJ | |
||
| 70 | E60430003070 | 4 | SCREW | XJ | |
||
| 71 | E60430003071 | 4 | WASHER SPECIAL | XJ | |
||
| 72 | E60430003072 | 1 | COVER | XJ | |
||
| 73 | 1004720-86 | 2 | BOLT | XJ | |
||
| 74 | 1004720-87 | 2 | WASHER | XJ | |
||
| 75 | 1004720-88 | 1 | PLATE | XJ | |
||
| 76 | 1004720-89 | 1 | PAD | XJ | |
||
| 77 | 1004720-90 | 3 | SPRING CLIP | XJ | |
||
| 78 | 1004720-91 | 2 | WASHER | XJ | |
||
| 79 | 1004720-92 | 2 | WHEEL | XJ | |
||
| 80 | 1004720-93 | 2 | SHAFT | XJ | |
||
| 81 | 1004720-94 | 1 | BRACKET | XJ | |
||
| 82 | 1004720-95 | 1 | BOLT | XJ | |
||
| 83 | 1004720-96 | 1 | SHAFT | XJ | |
||
| 84 | 1004720-97 | 2 | SPRING CLIP | XJ | |
||
| 85 | E604300030E1 | 1 | STARTER SA | XJ | |
||
| 86 | E604300030E2 | 1 | SPARK PLUG | XJ | |
||
| 87 | E604300030E3 | 1 | FILTER SA | Air Filter | XJ | |
|
| 88 | E604300030E4 | 1 | CARBURETTOR SA | XJ | |
||
| 89 | E604300030E5 | 1 | SEALS KIT | XJ | |
||
| 90 | E604300030E6 | 1 | COIL SA | XJ | |
||
| 91 | E604300030E7 | 1 | SEALS KIT | XJ | |
||
| 92 | E604300030E8 | 1 | Muffler | XJ | |
||
| 93 | E604300030P1 | 1 | PLATE SA | XJ | |
