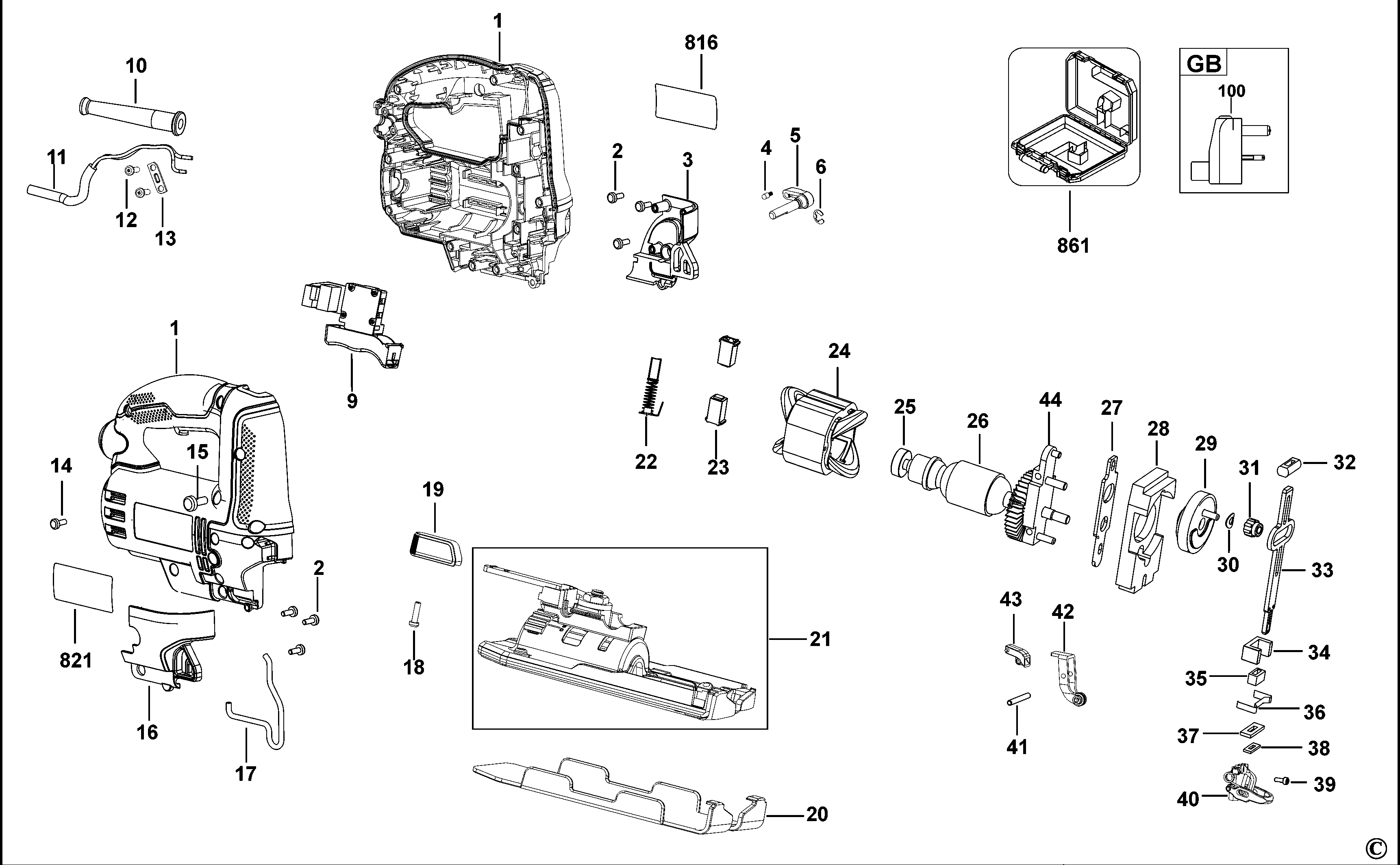

KFFMES340 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90619126 | 1 | CLAMSHELL | GB |  |
||
| 2 | 330045-05 | 6 | SCREW | GB | |
||
| 3 | 90575444 | 1 | COVER LH | GB | |
||
| 4 | N403227 | 1 | DETENT | GB | |
||
| 5 | 90542575 | 1 | SPEED REGULATOR | GB | |
||
| 6 | 90544008 | 1 | RETAINER | GB | |
||
| 10 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 10 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 11 | 90578997-53 | 1 | CORDSET | GB | |
||
| 12 | 370748 | 2 | SCREW | GB | |
||
| 13 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 14 | 330019-13 | 9 | SCREW | M4X19 T20 | GB | |
|
| 15 | 330019-16 | 2 | SCREW | GB | |
||
| 16 | 90575447 | 1 | COVER RH | GB | |
||
| 17 | 90542586 | 2 | GUARD | GB | |
||
| 18 | 330019-28 | 2 | SCREW | GB | |
||
| 19 | 90582476 | 1 | HANDLE | GB | |
||
| 20 | 90542992 | 1 | SOLE PLATE | GB | |
||
| 21 | 90544022 | 1 | SHOE SA | GB | |
||
| 22 | 90521673 | 2 | BRUSH & SPRING | GB | |
||
| 23 | 582696-00 | 2 | BRUSHBOX | GB | |
||
| 24 | 90619123 | 1 | FIELD SA | GB | |
||
| 25 | 574853-08 | 1 | BEARING | GB | |
||
| 26 | 90619124 | 1 | ARMATURE SA | GB | |
||
| 27 | 90542634 | 1 | FORK | GB | |
||
| 28 | 90516114 | 1 | BALANCE WEIGHT | GB | |
||
| 29 | 90583669 | 1 | GEAR SA | GB | |
||
| 30 | 823954 | 1 | WASHER | GB | |
||
| 31 | 90542604 | 1 | DRIVE ROLLER | GB | |
||
| 32 | 810893 | 1 | BEARING | GB | |
||
| 33 | 90516206 | 1 | SHAFT SA | GB | |
||
| 34 | 795645 | 1 | CARRIER | GB | |
||
| 35 | 582719-00 | 1 | BEARING | GB | |
||
| 36 | 582720-00 | 1 | SPRING | GB | |
||
| 37 | 582948-00 | 1 | PLATE | GB | |
||
| 38 | 90532150 | 1 | FELT SEAL | GB | |
||
| 39 | 583173-00 | 1 | SCREW | GB | |
||
| 40 | 90563039 | 1 | BLADE CLAMP | GB | |
||
| 41 | 90542862 | 1 | PIN | GB | |
||
| 42 | 90578033 | 1 | BLADE SUPPORT SA | GB | |
||
| 43 | 90542580 | 1 | DUST PORT | GB | |
||
| 100 | 588384-01 | 1 | PLUG | 13 amp 3 pin gb plug | GB | |
|
| 816 | 90607343 | 1 | BRAND LABEL | GB | |
||
| 821 | N605876 | 1 | RATING LABEL | GB | |
||
| 861 | 90580769-01 | 1 | KIT BOX | GB | |
