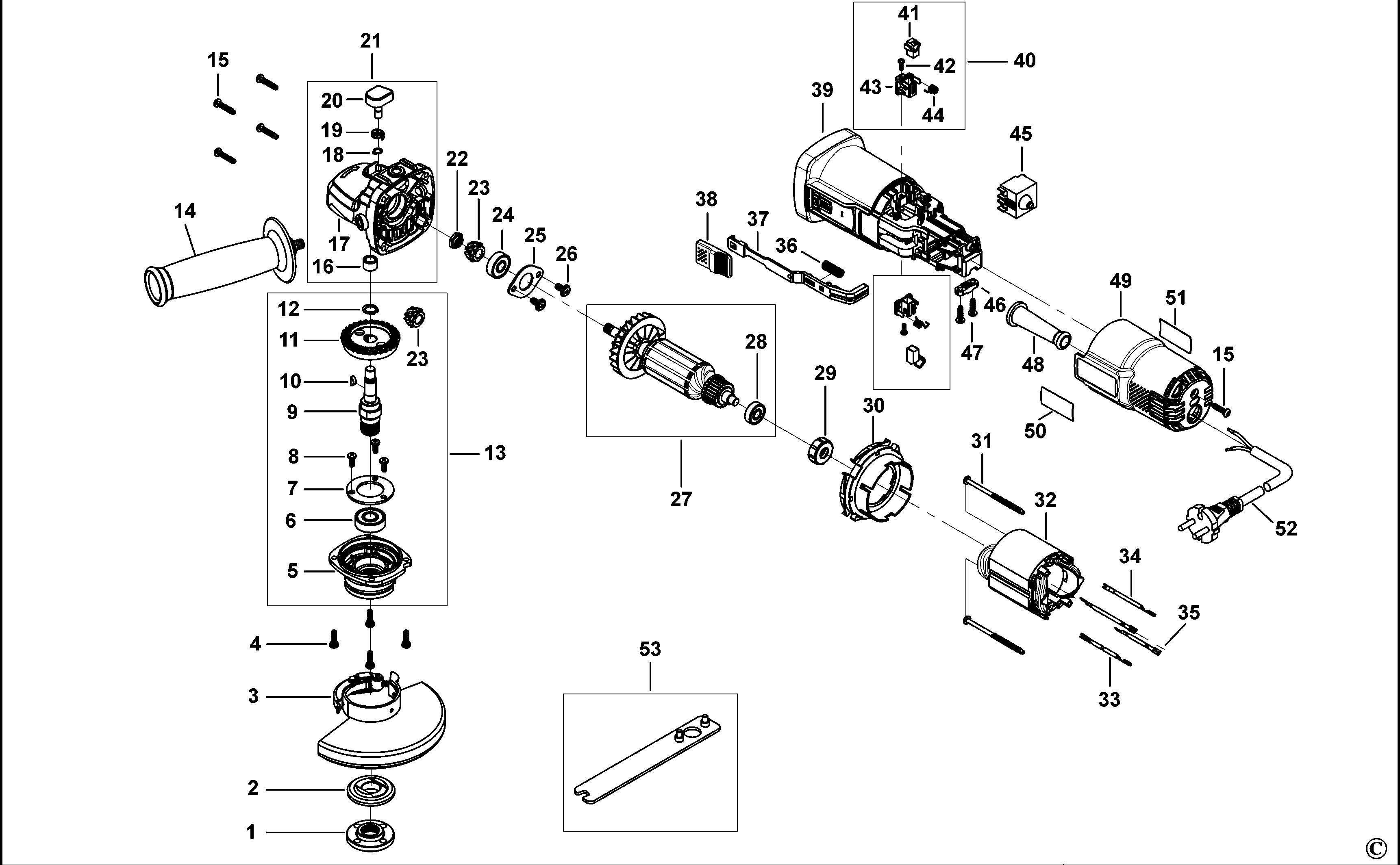

STGS1125 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004525-01 | 1 | OUTER FLANGE | XJ |  |
||
| 2 | 1004525-03 | 1 | INNER FLANGE | XJ | |
||
| 3 | 1004519-01 | 1 | GUARD | 125mm | XJ |  |
|
| 4 | 1004525-06 | 4 | SCREW | XJ | |
||
| 5 | 5140104-14 | 1 | GEARCASE COVER | XJ | |
||
| 6 | 1004525-08 | 1 | BEARING | 6000 | XJ | |
|
| 7 | 1004525-09 | 1 | COVERPLATE | XJ | |
||
| 8 | 1004525-10 | 3 | SCREW | XJ | |
||
| 9 | 1004525-12 | 1 | SPINDLE | XJ | |
||
| 10 | 1004525-13 | 1 | WOODRUFF KEY | XJ | |
||
| 11 | 1004525-14 | 1 | GEAR | XJ | |
||
| 12 | 1004525-15 | 1 | CIRCLIP | XJ | |
||
| 13 | 5140104-16 | 1 | SPINDLE & GEAR SA | XJ | |
||
| 14 | 569176-00 | 1 | HANDLE SA | XJ | |
||
| 15 | 1004525-18 | 5 | SCREW | XJ | |
||
| 16 | 1004525-16 | 1 | BEARING SINTER | XJ | |
||
| 17 | 5140104-18 | 1 | GEARCASE | XJ | |
||
| 18 | 1004525-20 | 1 | CIRCLIP | XJ | |
||
| 19 | 5140040-64 | 1 | SPRING | XJ | |
||
| 20 | 5140104-19 | 1 | BUTTON | XJ | |
||
| 21 | 5140104-20 | 1 | GEARCASE SA | XJ | |
||
| 22 | 569175-00 | 1 | NUT | XJ | |
||
| 23 | 1004525-24 | 1 | PINION GEAR | XJ | |
||
| 24 | 1004525-25 | 1 | BEARING | 608 | XJ | |
|
| 25 | 569168-00 | 1 | COVERPLATE | XJ | |
||
| 26 | 596408-00 | 2 | SCREW | XJ | |
||
| 27 | 5140104-21 | 1 | ARMATURE SA | XJ | |
||
| 28 | 1004525-27 | 1 | BEARING | 607 | XJ | |
|
| 29 | 1004525-28 | 1 | BEARING HOLDER | XJ | |
||
| 30 | 5140104-23 | 1 | BAFFLE FAN | XJ | |
||
| 31 | 5140104-24 | 2 | SCREW | XJ | |
||
| 32 | 5140104-25 | 1 | FIELD | XJ | |
||
| 33 | 5140104-27 | 1 | LEADWIRE | XJ | |
||
| 34 | 5140104-28 | 1 | LEADWIRE | XJ | |
||
| 35 | 5140104-29 | 2 | LEADWIRE | XJ | |
||
| 36 | 1004525-45 | 1 | SPRING | XJ | |
||
| 37 | 5140104-30 | 1 | LINK | XJ | |
||
| 38 | 1004557-24 | 1 | BUTTON | XJ | |
||
| 39 | 5140104-32 | 1 | HOUSING | XJ | |
||
| 40 | 5140104-33 | 2 | BRUSH SA | XJ | |
||
| 41 | 5140104-35 | 2 | BRUSH | XJ | |
||
| 42 | 1004525-39 | 2 | SCREW | XJ | |
||
| 43 | 1004525-40 | 2 | BRUSH HOLDER | XJ | |
||
| 44 | 1004525-41 | 2 | BRUSH SPRING | XJ | |
||
| 45 | 90567379 | 1 | SWITCH | XJ | |
||
| 46 | 596432-00 | 1 | CORDCLAMP | XJ | |
||
| 47 | 1004525-44 | 2 | SCREW | XJ | |
||
| 48 | 569194-00 | 1 | PROTECTOR | XJ | |
||
| 49 | 6010358-40 | 1 | END CAP | XJ | |
||
| 50 | 6010358-41 | 1 | BRAND LABEL | XJ | |
||
| 53 | 569197-00 | 1 | SPANNER | XJ | |
