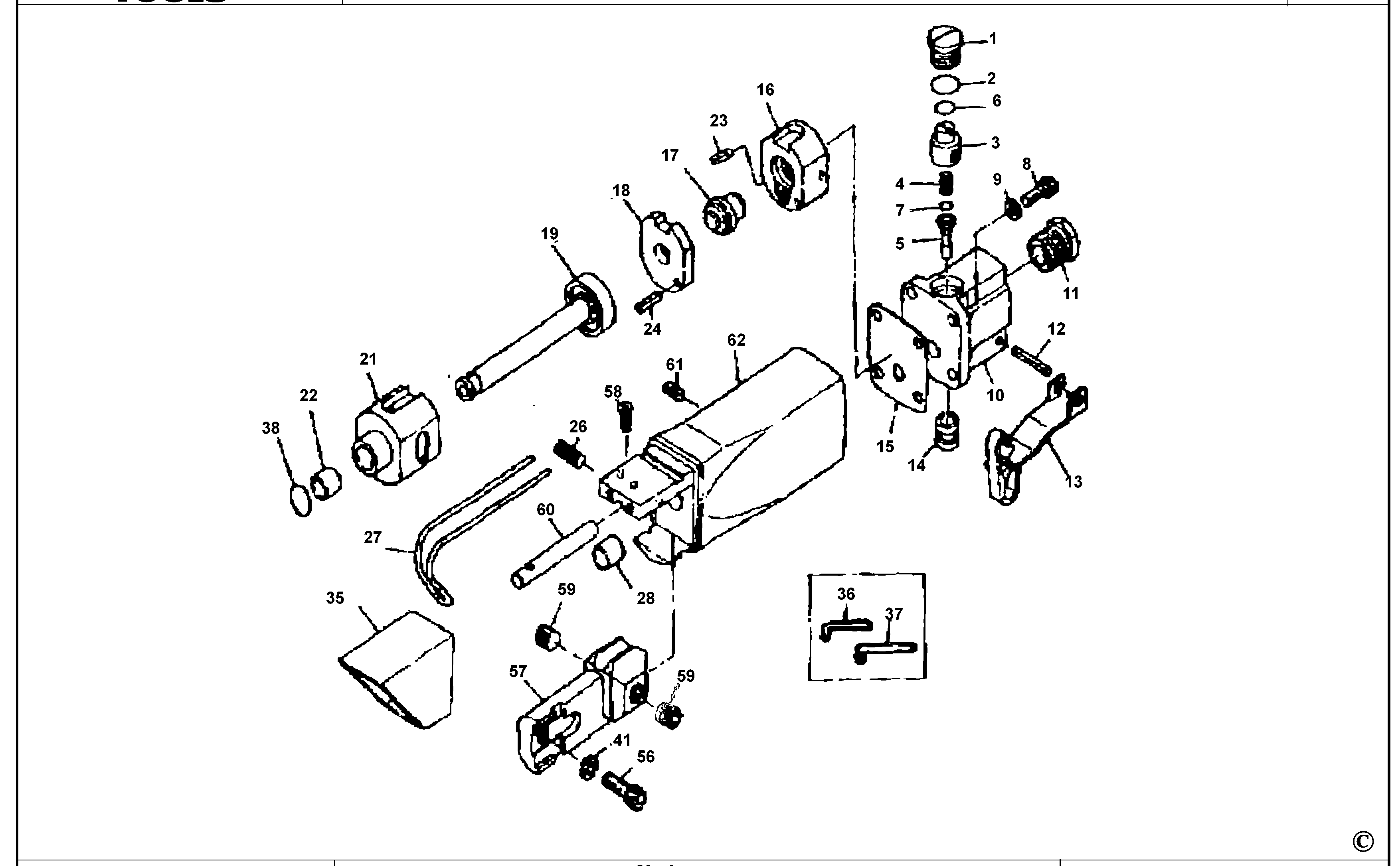

AS726 SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 2 | AD527-30 | 1 | O RING | XJ |  |
||
| 3 | AS725-01 | 1 | CONTROLLER | XJ |  |
||
| 4 | AR134-09 | 1 | SPRING | XJ | |||
| 5 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 6 | AR133-06 | 1 | O RING | XJ | |
||
| 7 | AW145-007 | 1 | O RING | XJ | |||
| 8 | AS725-02 | 1 | BOLT | XJ | |
||
| 9 | AW145-048 | 1 | WASHER LOCK | XJ | |
||
| 10 | AS725-03 | 1 | BLOCK SA | XJ | |
||
| 11 | AR134-01 | 1 | BUSHING | XJ | |||
| 12 | AR133-02 | 1 | PIN | XJ | |
||
| 13 | AS725-04 | 1 | LEVER | XJ | |
||
| 14 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 15 | AS725-05 | 1 | GASKET | XJ | |
||
| 16 | AS725-06 | 1 | CASE | XJ | |
||
| 17 | AS725-07 | 1 | VALVE | XJ | |
||
| 18 | AS725-08 | 1 | PLATE | XJ | |
||
| 19 | AS725-09 | 1 | PISTON | XJ | |
||
| 21 | AS725-10 | 1 | CYLINDER | XJ | |
||
| 22 | AS725-11 | 1 | BUSHING | XJ | |
||
| 23 | AR760-14 | 1 | PIN | XJ | |
||
| 24 | AS725-12 | 1 | PIN | XJ | |
||
| 26 | AS725-26 | 1 | SCREW | XJ | |
||
| 27 | AS725-15 | 1 | GUIDE | XJ | |
||
| 28 | AS725-16 | 1 | BUSHING | XJ | |
||
| 35 | AS725-19 | 1 | COVER | XJ | |
||
| 36 | AS725-20 | 1 | HEX KEY | XJ | |
||
| 37 | AS725-21 | 1 | HEX KEY | XJ | |
||
| 38 | AS725-22 | 1 | O RING | XJ | |
||
| 41 | AW145-048 | 1 | WASHER LOCK | XJ | |
||
| 56 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 57 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 58 | AW226-09 | 1 | SCREW | XJ | |
||
| 59 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 60 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 61 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 62 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ |
