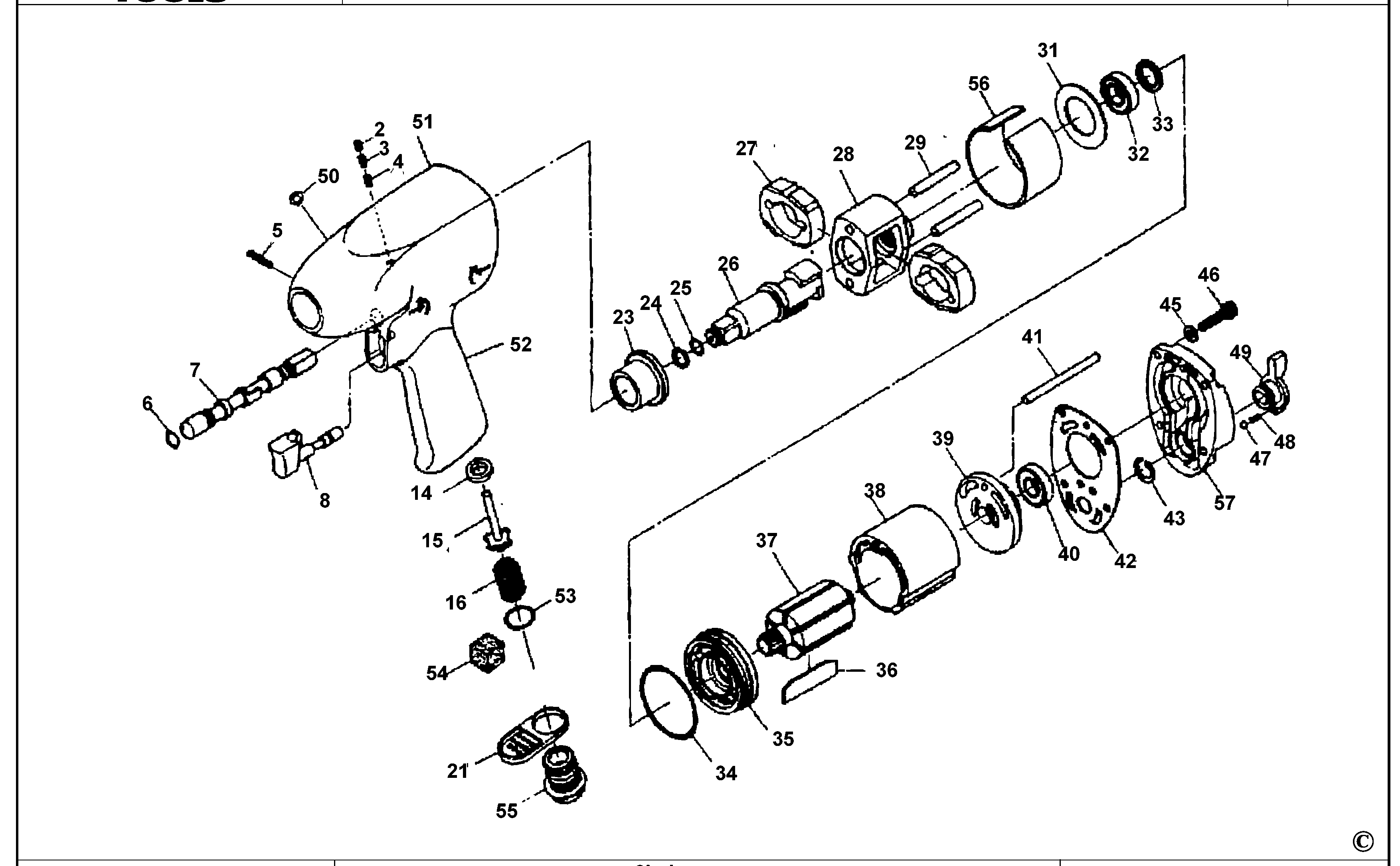

AW376 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | AW135-07 | 1 | SCREW | XJ |  |
||
| 3 | AW135-06 | 1 | SPRING | XJ | |
||
| 4 | AW375-04 | 1 | PIN | XJ | |
||
| 5 | AW138-36 | 1 | PIN | XJ | |
||
| 6 | AW145-127 | 1 | O RING | XJ | |
||
| 7 | AW375-07 | 1 | VALVE | XJ | |
||
| 8 | AW375-08 | 1 | TRIGGER | XJ | |
||
| 14 | AW375-14 | 1 | VALVE SEAT | XJ | |
||
| 15 | AW375-15 | 1 | VALVE | XJ | |
||
| 16 | AW375-16 | 1 | SPRING | XJ | |
||
| 21 | AW375-21 | 1 | DEFLECTOR | XJ | |
||
| 23 | AW375-23 | 1 | BUSHING | XJ | |
||
| 24 | AW135-10 | 1 | RING | XJ | |
||
| 25 | AW135-11 | 1 | O RING | XJ | |
||
| 26 | AW375-26 | 1 | SHANK | XJ | |
||
| 27 | AW375-27 | 1 | HAMMER | XJ | |
||
| 28 | AW375-28 | 1 | FRAME | XJ | |
||
| 29 | AW375-29 | 1 | PIN | XJ | |
||
| 31 | AW375-31 | 1 | WASHER | XJ | |
||
| 32 | AW375-32 | 1 | BEARING | XJ |  |
||
| 33 | AW148TR-09 | 1 | SEAL | XJ | |
||
| 34 | AW375-34 | 1 | O RING | XJ | |
||
| 35 | AW375-35 | 1 | PLATE | XJ | |
||
| 36 | AW375-36 | 1 | BLADE | XJ | |
||
| 37 | AW375-37 | 1 | ROTOR | XJ | |
||
| 38 | AW375-38 | 1 | CYLINDER | XJ | |
||
| 39 | AW375-39 | 1 | PLATE | XJ | |
||
| 40 | AW375-40 | 1 | BEARING | XJ | |
||
| 41 | AW375-41 | 1 | PIN | XJ | |
||
| 42 | AW375-42 | 1 | GASKET | XJ | |
||
| 43 | AW375-43 | 1 | RING | XJ | |
||
| 45 | AW145-048 | 1 | WASHER LOCK | XJ | |
||
| 46 | AS725-02 | 1 | BOLT | XJ | |
||
| 47 | AW170-37 | 1 | BALL | XJ | |
||
| 48 | AW375-48 | 1 | SPRING | XJ | |
||
| 49 | AW375-49 | 1 | LEVER | XJ | |
||
| 50 | AW376-50 | 1 | PLUG | XJ | |
||
| 51 | AW376-51 | 1 | HOUSING MOTOR | XJ | |
||
| 52 | AW376-52 | 1 | COVER | XJ | |
||
| 53 | AD527-32 | 1 | O RING | XJ | |
||
| 54 | AS517-32 | 1 | FOAM | XJ | |||
| 55 | AW376-55 | 1 | BUSHING | XJ | |
||
| 56 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 57 | AW376-57 | 1 | CAP | XJ | |
