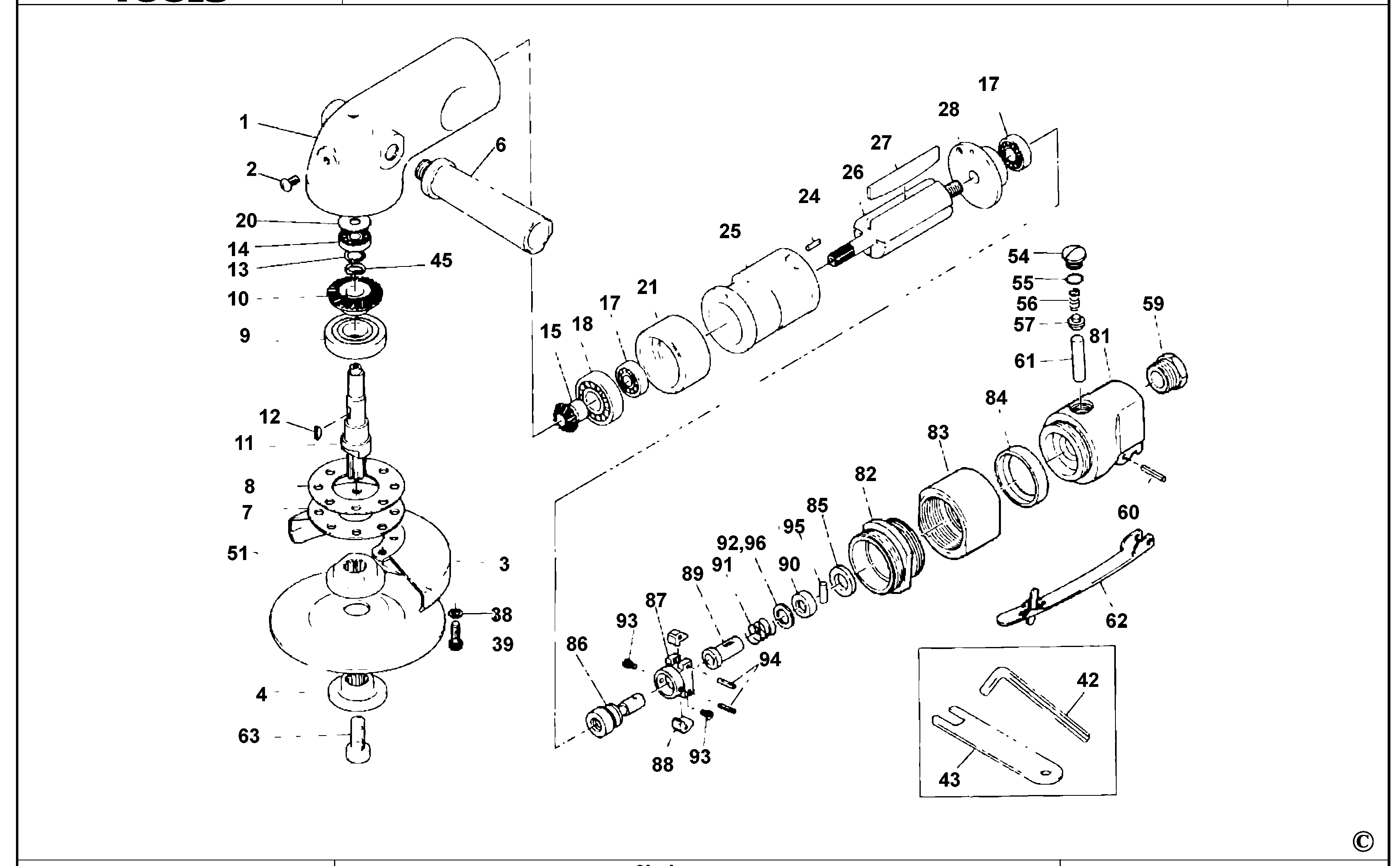

AG4500A GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AG4500A-01 | 1 | BODY | GB |  |
||
| 2 | AG4500A-02 | 1 | SCREW | GB | |
||
| 3 | AG4500A-03 | 1 | COVER | GB | |
||
| 4 | AG4500A-04 | 1 | NUT | GB | |
||
| 6 | AG4500A-06 | 1 | GRIP | GB | |
||
| 7 | AG4500A-07 | 1 | RETAINER | GB | |
||
| 8 | AG4500A-08 | 1 | GASKET | GB | |
||
| 9 | AG4500A-09 | 1 | BEARING | GB | |
||
| 10 | AG4500A-10 | 1 | GEAR | GB | |
||
| 11 | AG4500A-11 | 1 | GEAR | GB | |
||
| 12 | AG4500A-12 | 1 | KEY | GB | |
||
| 13 | AG4500A-13 | 1 | RING | GB | |
||
| 14 | AR760-12 | 1 | BEARING | GB |  |
||
| 15 | AG4500A-15 | 1 | PINION | GB | |
||
| 17 | AG4500A-17 | 1 | BEARING | GB | |
||
| 18 | AG4500A-18 | 1 | BEARING | GB | |
||
| 20 | AG4500A-20 | 1 | SPACER | GB | |
||
| 21 | AG4500A-21 | 1 | PLATE | GB | |
||
| 24 | AS230V-22 | 1 | PIN | GB | |||
| 25 | AS230V-23 | 1 | CYLINDER | GB | |
||
| 26 | AG4500A-26 | 1 | ROTOR | GB | |
||
| 28 | AS230V-19 | 1 | PLATE | GB | |||
| 38 | AW145-046 | 1 | WASHER | GB | |
||
| 39 | AG4500A-39 | 1 | SCREW | GB | |
||
| 42 | AG4500A-42 | 1 | WRENCH 4 MM | GB | |
||
| 43 | AG4500A-43 | 1 | SPANNER | GB | |
||
| 45 | AG4500A-45 | 1 | WASHER | GB | |
||
| 51 | AG4500A-51 | 1 | GUIDE | GB | |
||
| 54 | AG4500A-54 | 1 | NUT | GB | |
||
| 55 | AD527-30 | 1 | O RING | GB | |
||
| 56 | AG4500A-56 | 1 | SPRING | GB | |
||
| 57 | AG4500A-57 | 1 | BALL | GB | |
||
| 59 | AG4500A-59 | 1 | BUSHING | GB | |
||
| 60 | AG4500A-60 | 1 | PINION | GB | |
||
| 61 | AG4500A-61 | 1 | PIN | GB | |
||
| 62 | AG4500A-62 | 1 | LEVER | GB | |
||
| 63 | AG4500A-63 | 1 | SCREW | GB | |
||
| 81 | AG4500A-81 | 1 | VALVE BODY | GB | |
||
| 82 | AG4500A-82 | 1 | LOCKING RING | GB | |
||
| 83 | AG4500A-83 | 1 | COUPLING | GB | |
||
| 84 | AG4500A-84 | 1 | SPACER | GB | |
||
| 85 | AG4500A-85 | 1 | RING | GB | |
||
| 86 | AG4500A-86 | 1 | SHAFT | GB | |
||
| 87 | AG4500A-87 | 1 | GUIDE | GB | |
||
| 88 | AG4500A-88 | 1 | SHAFT | GB | |
||
| 89 | AG4500A-89 | 1 | SLEEVE | GB | |
||
| 90 | AG4500A-90 | 1 | WASHER | GB | |
||
| 91 | AG4500A-91 | 1 | SPRING | GB | |
||
| 92 | AG4500A-92 | 1 | RING | GB | |
||
| 93 | AW135-07 | 1 | SCREW | GB | |
||
| 94 | ADG205-02 | 1 | PIN | GB | |
||
| 95 | AG4500A-95 | 1 | PIN | GB | |
||
| 96 | AG4500A-96 | 1 | RING | GB | |
