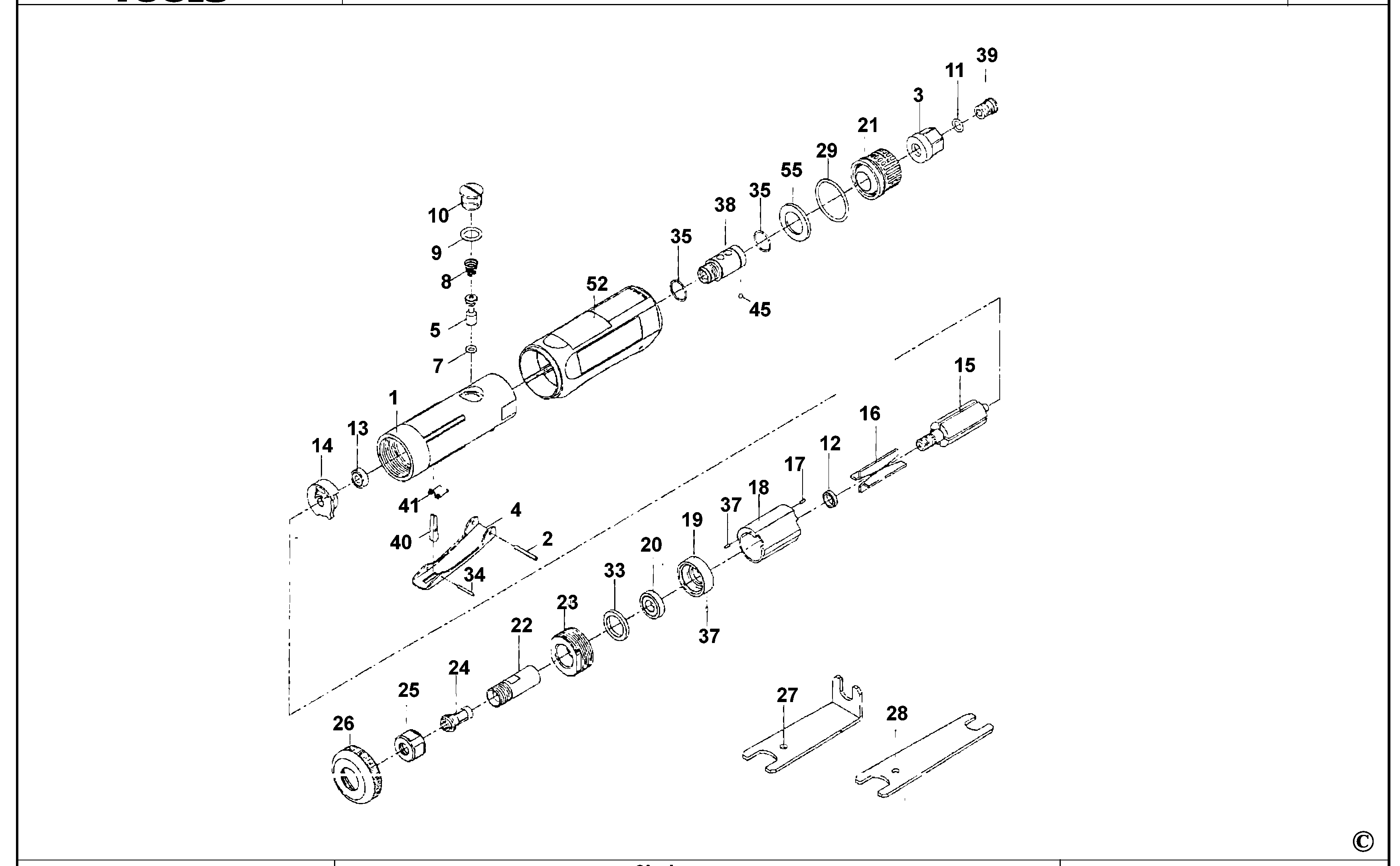

AGQP100 GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AGQP100-01 | 1 | HOUSING MOTOR | GB |  |
||
| 2 | AD3800AH-02 | 1 | PIN | GB | |
||
| 3 | ATQP30S-03 | 1 | INLET | GB | |
||
| 4 | AGQP100-04 | 1 | LEVER | GB | |
||
| 5 | AGQP100-05 | 1 | SHAFT | GB | |
||
| 7 | AD54013 | 1 | O RING | GB | |
||
| 8 | AGQP100-08 | 1 | SPRING | GB | |
||
| 9 | AGQP100-09 | 1 | O RING | GB | |
||
| 10 | AGQP100-10 | 1 | PLUG | GB | |
||
| 11 | AS20-52 | 1 | O RING | GB | |
||
| 12 | AGQP100-12 | 1 | BUSH | GB | |
||
| 13 | AGQP50M-13 | 1 | BEARING,BALL | GB | |
||
| 14 | ARQP380-14 | 1 | PLATE | GB | |
||
| 15 | AGQP100-15 | 1 | ROTOR | GB | |
||
| 16 | AGQP100-16 | 1 | BLADE | GB | |
||
| 17 | AD1400-14 | 1 | PLATE | GB | |
||
| 18 | AGQP100-18 | 1 | CYLINDER | GB | |
||
| 19 | AGQP100-19 | 1 | PLATE | GB | |
||
| 20 | MB6901-57 | 1 | BEARING,BALL | GB | |
||
| 21 | AGQP100-21 | 1 | DEFLECTOR | GB | |
||
| 22 | AGQP100-22 | 1 | SPINDLE | GB | |
||
| 23 | AGQP100-23 | 1 | CLAMP NUT | GB | |
||
| 24 | AGQP100-24 | 1 | COLLET | GB | |
||
| 25 | AGQP100-25 | 1 | NUT | GB | |
||
| 26 | AGQP100-26 | 1 | CAP | GB | |
||
| 27 | AGQP100-27 | 1 | SPANNER | GB | |
||
| 28 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 29 | AGQP100-29 | 1 | O RING | GB | |
||
| 33 | AGQP100-33 | 1 | WASHER | GB | |
||
| 34 | AG200-38 | 1 | PIN | GB | |
||
| 35 | AGQP100-35 | 1 | O RING | GB | |
||
| 37 | AWQP120M-27 | 1 | PIN | GB | |
||
| 38 | AGQP100-38 | 1 | SHAFT | GB | |
||
| 39 | AGQP100-39 | 1 | SCREW | GB | |
||
| 40 | AGQP100-40 | 1 | PLUG | GB | |
||
| 41 | AGQP100-41 | 1 | SPRING | GB | |
||
| 45 | AWQP120-24 | 1 | BALL | GB | |
||
| 52 | AGQP100-52 | 1 | GRIP | GB | |
||
| 55 | AGQP100-55 | 1 | FELT | GB | |
