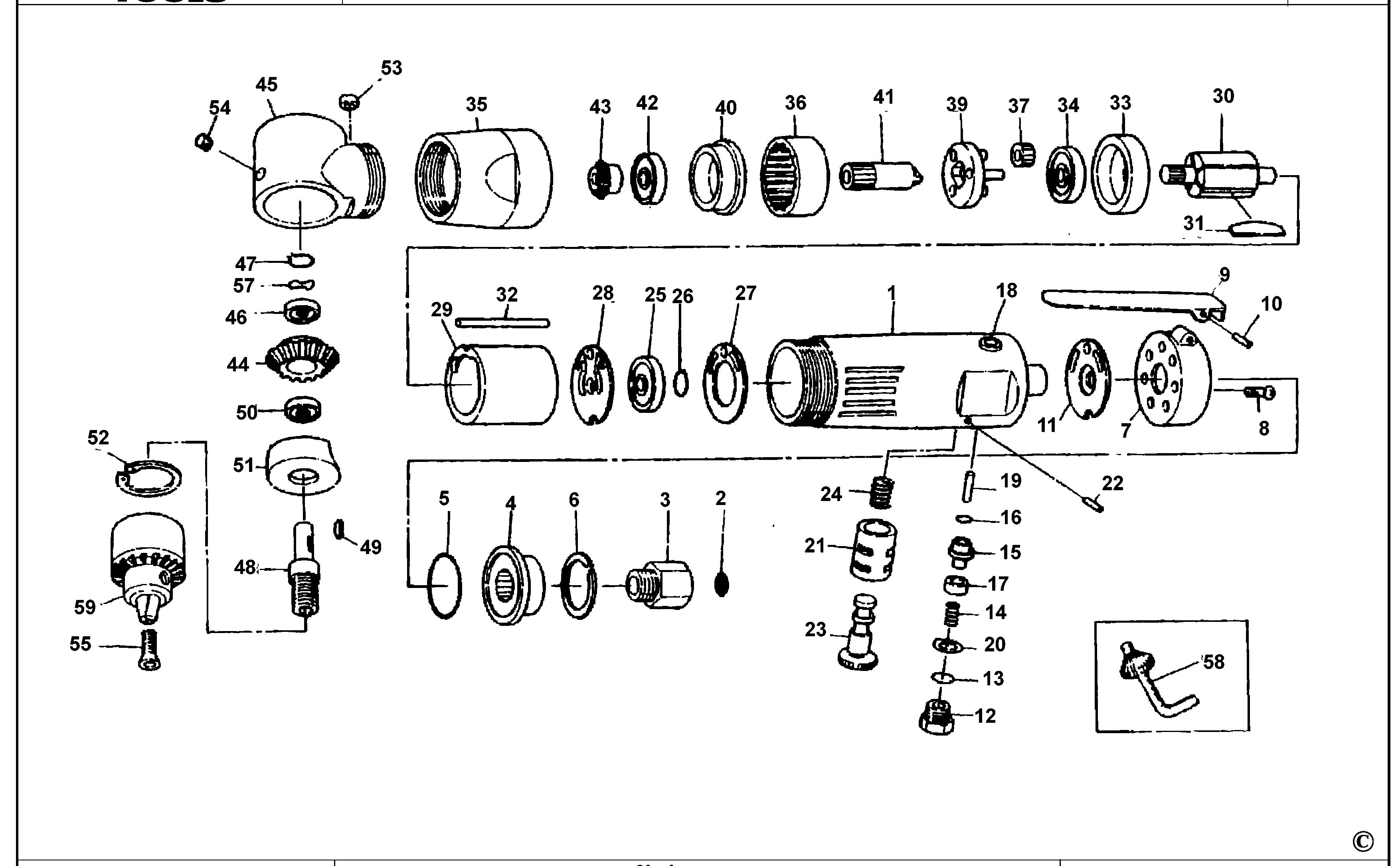

AD510AH AIR DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AD510AH-01 | 1 | HOUSING MOTOR | GB | |||
| 2 | AD527-39 | 1 | SCREEN | GB |  |
||
| 3 | AD510AH-03 | 1 | BUSHING | GB | |||
| 4 | AGS450-11 | 1 | DEFLECTOR | GB | |||
| 5 | AGS450-39 | 1 | O RING | GB | |||
| 6 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 7 | AD510AH-07 | 1 | CAP | GB | |||
| 8 | AD510AH-08 | 1 | SCREW | GB | |||
| 9 | AD510AH-09 | 1 | LEVER | GB | |||
| 10 | AR133-02 | 1 | PIN | GB |  |
||
| 11 | AD510AH-11 | 1 | GASKET | GB | |||
| 12 | AD510AH-12 | 1 | SCREW | GB | |||
| 13 | AR133-06 | 1 | O RING | GB | |
||
| 14 | AR133-07 | 1 | SPRING | GB | |
||
| 15 | AR133-08 | 1 | VALVE | GB | |
||
| 16 | AR133-09 | 1 | O RING | GB | |
||
| 17 | AW145-004 | 1 | RETAINER | GB | |
||
| 18 | AD510AH-18 | 1 | BUSHING | GB | |||
| 19 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 20 | AD510AH-20 | 1 | RETAINER | GB | |||
| 21 | AD510AH-21 | 1 | BUSHING | GB | |||
| 22 | AD510AH-22 | 1 | PIN | GB | |||
| 23 | AD510AH-23 | 1 | VALVE | GB | |||
| 24 | AD510AH-24 | 1 | VALVE SPRING | GB | |||
| 25 | AR133-11 | 1 | BEARING | GB | |
||
| 26 | AW135-51 | 1 | RING | GB | |
||
| 27 | AD527-35 | 1 | GASKET | GB | |||
| 28 | AD527-18 | 1 | PLATE | GB | |||
| 29 | AD527-21 | 1 | CYLINDER | GB | |
||
| 30 | AD510AH-30 | 1 | ROTOR | GB | |||
| 31 | AD527-20 | 1 | ROTOR BLADE | GB | |
||
| 32 | AD527-22 | 1 | PIN | GB | |
||
| 33 | AD510AH-33 | 1 | PLATE | GB | |||
| 34 | AR133-18 | 1 | BEARING PLATE | GB | |
||
| 35 | AD510AH-35 | 1 | RING | GB | |||
| 36 | AD510AH-36 | 1 | GEAR | GB | |||
| 37 | AD510AH-37 | 1 | GEAR | GB | |||
| 39 | AD510AH-39 | 1 | CAGE | GB | |||
| 40 | AD510AH-40 | 1 | BEARING,BALL | GB | |||
| 41 | AD510AH-41 | 1 | SHAFT | GB | |||
| 42 | AD511-16 | 1 | BEARING,BALL | GB | |
||
| 43 | AD510AH-43 | 1 | PINION | GB | |||
| 44 | AD510AH-44 | 1 | GEAR | GB | |||
| 45 | AD510AH-45 | 1 | HOUSING | GB | |||
| 46 | AR133-11 | 1 | BEARING | GB | |
||
| 47 | AW135-51 | 1 | RING | GB | |
||
| 48 | AD510AH-48 | 1 | SPINDLE | GB | |
||
| 49 | AD510AH-49 | 1 | KEY | GB | |||
| 50 | ADG210-11 | 1 | BEARING,BALL | GB | |
||
| 51 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 52 | AS150-41 | 1 | RING | GB | |
||
| 53 | AD500AH-42 | 1 | PLUG | GB | |||
| 54 | AD527-24 | 1 | SCREW | GB | |||
| 55 | SDG205D-21 | 1 | SCREW | GB | |||
| 57 | AD510AH-57 | 1 | WASHER | GB | |||
| 58 | AD511-32 | 1 | KEY | GB | |||
| 59 | 1004775-45 | 1 | CHUCK | GB | |
