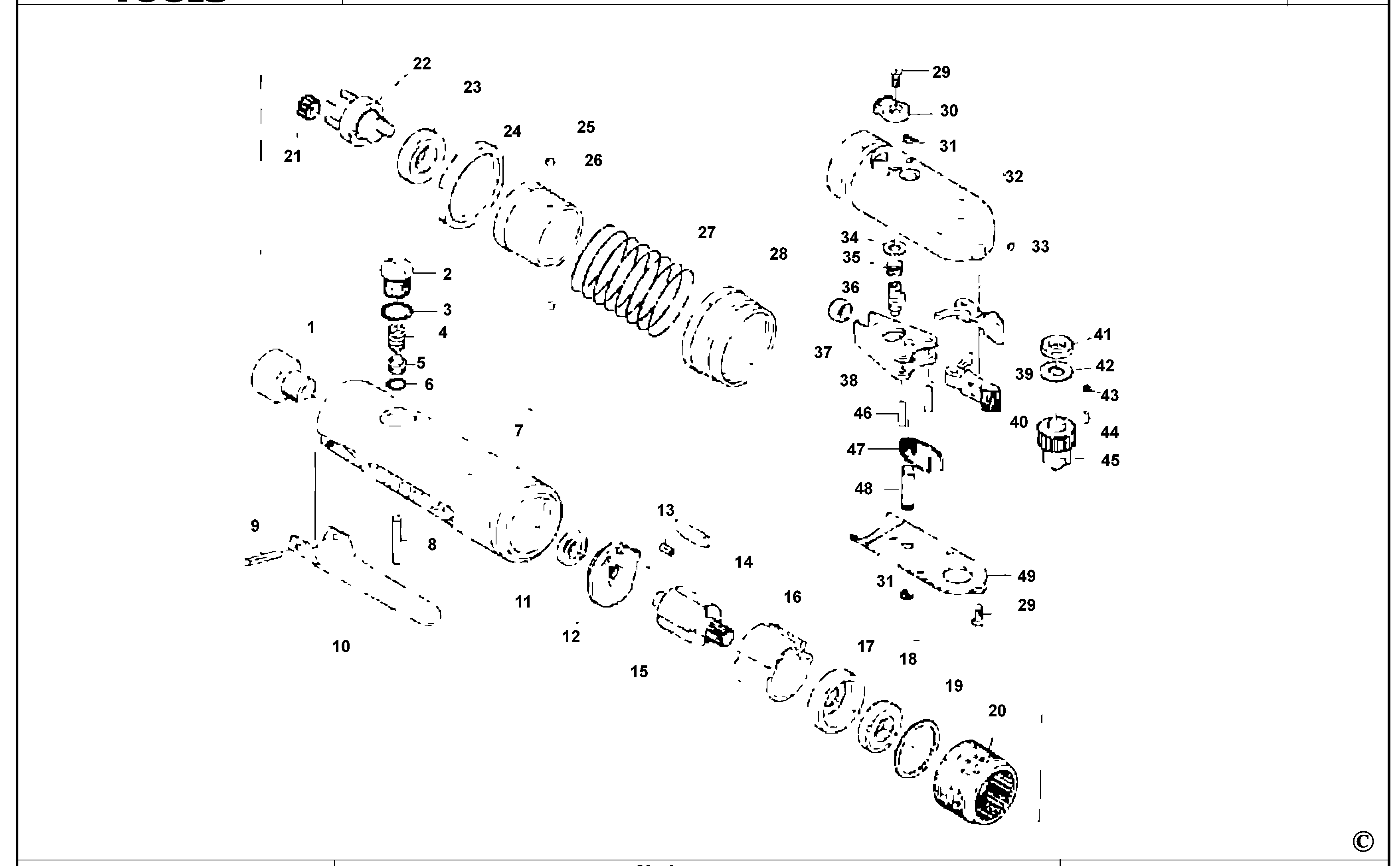

AR249RH RATCHET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AR2765-42 | 1 | INLET | XJ |  |
||
| 2 | AR133-05 | 1 | LEVER | XJ |  |
||
| 3 | AR133-06 | 1 | O RING | XJ | |
||
| 4 | AR133-07 | 1 | SPRING | XJ | |
||
| 5 | AR133-08 | 1 | VALVE | XJ | |
||
| 6 | AR133-09 | 1 | O RING | XJ | |
||
| 7 | AR249RH-07 | 1 | HOUSING | XJ | |
||
| 8 | AR760-07 | 1 | PLUNGER | XJ | |
||
| 9 | ADG200-10 | 1 | PIN | XJ | |||
| 10 | AR760-11 | 1 | LEVER | XJ | |
||
| 11 | AR760-12 | 1 | BEARING | XJ | |
||
| 12 | AR2760C-11 | 1 | PLATE | XJ | |
||
| 13 | AR2760C-13 | 1 | PIN | XJ | |
||
| 14 | AR760-15 | 1 | ROTOR BLADE | XJ | |
||
| 15 | AR760-16 | 1 | ROTOR | XJ | |
||
| 16 | AR760-17 | 1 | CYLINDER | XJ | |
||
| 17 | AR760-18 | 1 | PLATE | XJ | |
||
| 18 | AR133-18 | 1 | BEARING PLATE | XJ | |
||
| 19 | AR760-20 | 1 | WASHER LOCK | XJ | |
||
| 20 | AR2765-22 | 1 | PLATE | XJ | |
||
| 21 | AR760-21 | 1 | GEAR | XJ | |
||
| 22 | AR250-26 | 1 | CAGE | XJ | |
||
| 23 | AW375-32 | 1 | BEARING | XJ | |
||
| 24 | AR249RH-24 | 1 | LOCKING RING | XJ | |
||
| 25 | AW148TR-27 | 1 | BALL STEEL | XJ | |
||
| 26 | AR249RH-26 | 1 | CYLINDER | XJ | |
||
| 27 | AR249RH-27 | 1 | SPRING | XJ | |
||
| 28 | AR249RH-28 | 1 | RING | XJ | |
||
| 29 | AR250-31 | 1 | SCREW | XJ | |
||
| 30 | AR250-32 | 1 | LEVER | XJ | |
||
| 31 | AR250-33 | 1 | CIRCLIP | XJ | |
||
| 32 | AR249RH-32 | 1 | HOUSING | XJ | |
||
| 33 | AW376-50 | 1 | PLUG | XJ | |
||
| 34 | AR250-41 | 1 | WASHER | XJ | |
||
| 35 | AR250-42 | 1 | SPRING | XJ | |
||
| 36 | AR250-43 | 1 | CAM | XJ | |
||
| 37 | AR760-29 | 1 | BUSHING | XJ | |
||
| 38 | AR250-44 | 1 | YOKE | XJ | |
||
| 39 | AR250-39 | 1 | RATCHET | XJ | |
||
| 40 | AR250-40 | 1 | RATCHET | XJ | |
||
| 41 | AR250-35 | 1 | BUSHING | XJ | |
||
| 42 | AR250-36 | 1 | WASHER | XJ | |
||
| 43 | AR251-50 | 1 | SPRING | XJ | |
||
| 44 | AR251-51 | 1 | PIN | XJ | |
||
| 45 | AR251-49 | 1 | ANVIL | XJ | |
||
| 46 | AR250-45 | 1 | ROLLER | XJ | |
||
| 47 | AR250-46 | 1 | SPRING | XJ | |
||
| 48 | AR250-47 | 1 | PAWL | XJ | |
||
| 49 | AR250-48 | 1 | HOUSING | XJ | |
