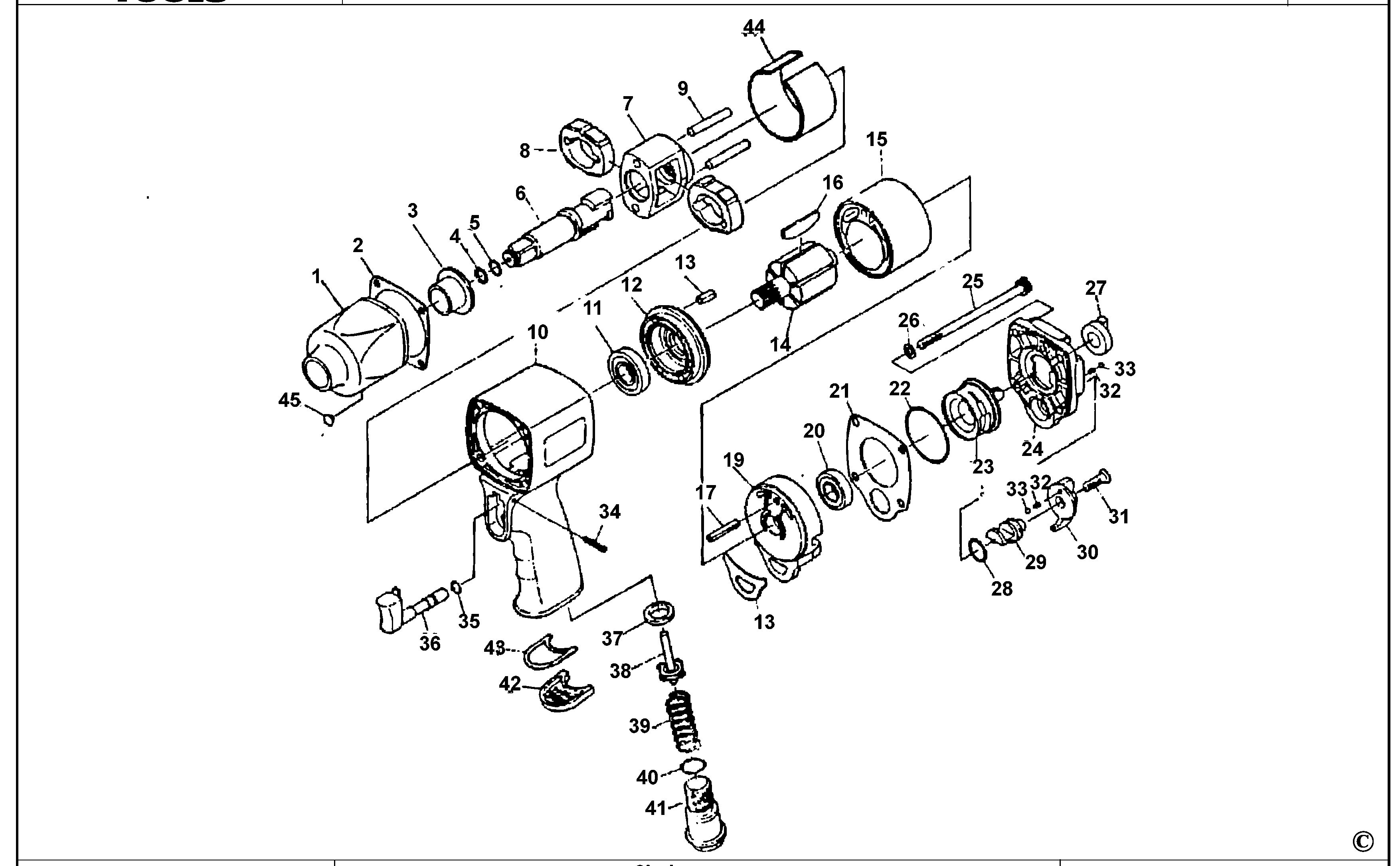

AW335 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 2 | AW335-02 | 1 | GASKET | XJ |  |
||
| 3 | AW375-23 | 1 | BUSHING | XJ | |
||
| 4 | AW135-10 | 1 | RING | XJ | |
||
| 5 | AW135-11 | 1 | O RING | XJ | |
||
| 6 | AW375-26 | 1 | SHANK | XJ | |
||
| 7 | AW375-28 | 1 | FRAME | XJ | |
||
| 8 | AW375-27 | 1 | HAMMER | XJ | |
||
| 9 | AW375-29 | 1 | PIN | XJ | |
||
| 10 | AW335-10 | 1 | HOUSING MOTOR | XJ | |
||
| 11 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 12 | AW335-12 | 1 | PLATE | XJ | |
||
| 13 | AW335-13 | 1 | PIN | XJ | |
||
| 14 | AW335-14 | 1 | ROTOR | XJ | |
||
| 15 | AW375-36 | 1 | BLADE | XJ | |
||
| 16 | AW335-16 | 1 | CYLINDER | XJ | |
||
| 17 | AW170-35 | 1 | PIN | XJ | |
||
| 18 | AW335-18 | 1 | GASKET | XJ | |
||
| 19 | AW335-19 | 1 | PLATE | XJ | |
||
| 20 | AW375-40 | 1 | BEARING | XJ | |
||
| 21 | AW335-21 | 1 | GASKET | XJ | |
||
| 22 | AW156TR-40 | 1 | O RING | XJ | |
||
| 23 | AW335-23 | 1 | REGULATOR | XJ | |
||
| 24 | AW335-24 | 1 | CAP | XJ | |
||
| 25 | AW335-25 | 1 | SCREW | XJ | |
||
| 26 | AW145-046 | 1 | WASHER | XJ | |
||
| 27 | AW335-27 | 1 | DIAL PLATE | XJ | |
||
| 28 | AW335-28 | 1 | O RING | XJ |  |
||
| 29 | AW335-29 | 1 | VALVE | XJ | |
||
| 30 | AW435-30 | 1 | LEVER | XJ | |
||
| 31 | AD510AH-08 | 1 | SCREW | XJ | |||
| 32 | AW170-36 | 1 | SPRING | XJ | |
||
| 33 | AD527-44 | 1 | BALL | XJ | |
||
| 34 | AW435-35 | 1 | PIN | XJ | |
||
| 35 | AW145-008 | 1 | O RING | XJ | |
||
| 36 | AW335-36 | 1 | TRIGGER | XJ | |
||
| 37 | AW377-14 | 1 | Seat | XJ | |
||
| 38 | AW375-15 | 1 | VALVE | XJ | |
||
| 39 | AW435-39 | 1 | SPRING | XJ | |
||
| 40 | AD527-32 | 1 | O RING | XJ | |
||
| 41 | AW435-42 | 1 | INLET | XJ | |
||
| 42 | AW435-41 | 1 | DEFLECTOR | XJ | |||
| 43 | AW435-43 | 1 | GASKET | XJ | |
||
| 44 | AW376-56 | 1 | SLEEVE | XJ | |
||
| 45 | AW376-50 | 1 | PLUG | XJ | |
