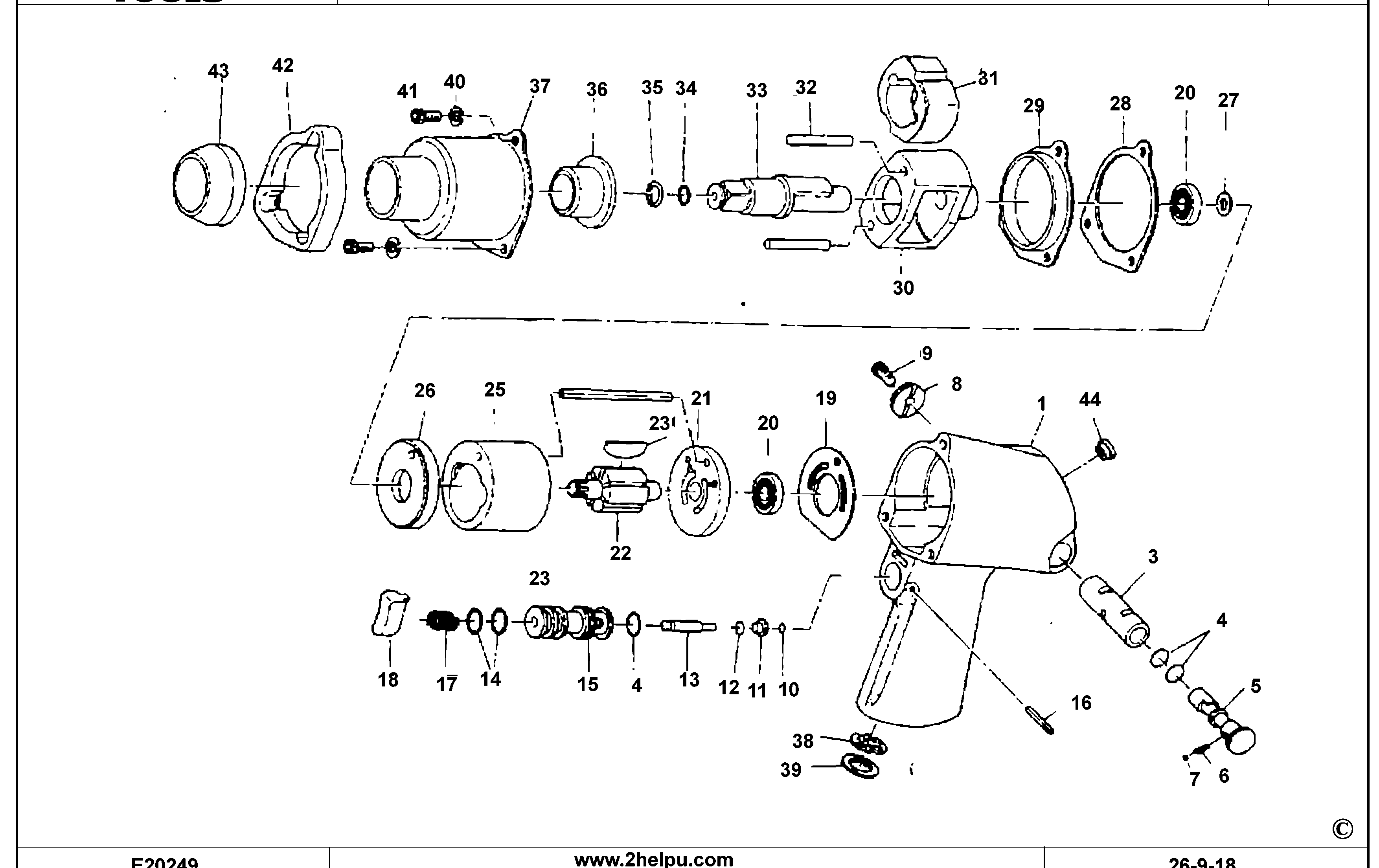

AW226 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AW226-01 | 1 | HOUSING MOTOR | GB |  |
||
| 3 | AW226-03 | 1 | BUSHING | GB | |
||
| 4 | AD527-30 | 1 | O RING | GB |  |
||
| 5 | AW226-05 | 1 | VALVE | GB | |
||
| 6 | AW226-06 | 1 | SPRING | GB | |
||
| 7 | AW148TR-27 | 1 | BALL STEEL | GB | |
||
| 8 | AW226-08 | 1 | KNOB | GB | |
||
| 9 | AW226-09 | 1 | SCREW | GB | |
||
| 10 | AW145-008 | 1 | O RING | GB | |
||
| 11 | AW226-11 | 1 | VALVE | GB | |
||
| 12 | AW145-007 | 1 | O RING | GB | |||
| 13 | AW226-13 | 1 | SHAFT | GB | |
||
| 14 | AW157-21 | 1 | O RING | GB | |
||
| 15 | AW226-15 | 1 | BUSHING | GB | |
||
| 16 | AD527-33 | 1 | PIN | GB | |||
| 17 | AD527-26 | 1 | SPRING | GB | |||
| 18 | AW226-18 | 1 | TRIGGER | GB | |
||
| 19 | AW226-19 | 1 | GASKET | GB | |
||
| 20 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 21 | AW140-46 | 1 | PLATE | GB | |
||
| 22 | AW226-22 | 1 | ROTOR | GB | |
||
| 23 | AW140-44 | 1 | BLADE | GB | |
||
| 25 | AW140-45 | 1 | CYLINDER | GB | |
||
| 26 | AW226-26 | 1 | PLATE | GB | |
||
| 27 | AW135-19 | 1 | SEAL | GB | |
||
| 28 | AW226-28 | 1 | GASKET | GB | |
||
| 29 | AW226-29 | 1 | COLLAR | GB | |
||
| 30 | AW226-30 | 1 | FRAME | GB | |
||
| 31 | AW226-31 | 1 | HAMMER | GB | |
||
| 32 | AW226-32 | 1 | PIN | GB | |
||
| 33 | AW226-33 | 1 | SHANK | GB | |
||
| 34 | AW135-11 | 1 | O RING | GB | |
||
| 35 | AW135-10 | 1 | RING | GB | |
||
| 36 | AW226-36 | 1 | BUSHING | GB | |
||
| 37 | AW226-37 | 1 | CASE | GB | |
||
| 38 | AW226-38 | 1 | SILENCER | GB | |
||
| 39 | AW226-39 | 1 | RING | GB | |
||
| 40 | AW145-048 | 1 | WASHER LOCK | GB | |
||
| 41 | AW136-55 | 1 | SCREW | GB | |
||
| 42 | AW226-42 | 1 | BAND | GB | |
||
| 43 | AW226-43 | 1 | GUARD | GB | |
||
| 44 | AW226-44 | 1 | PLUG | GB | |
