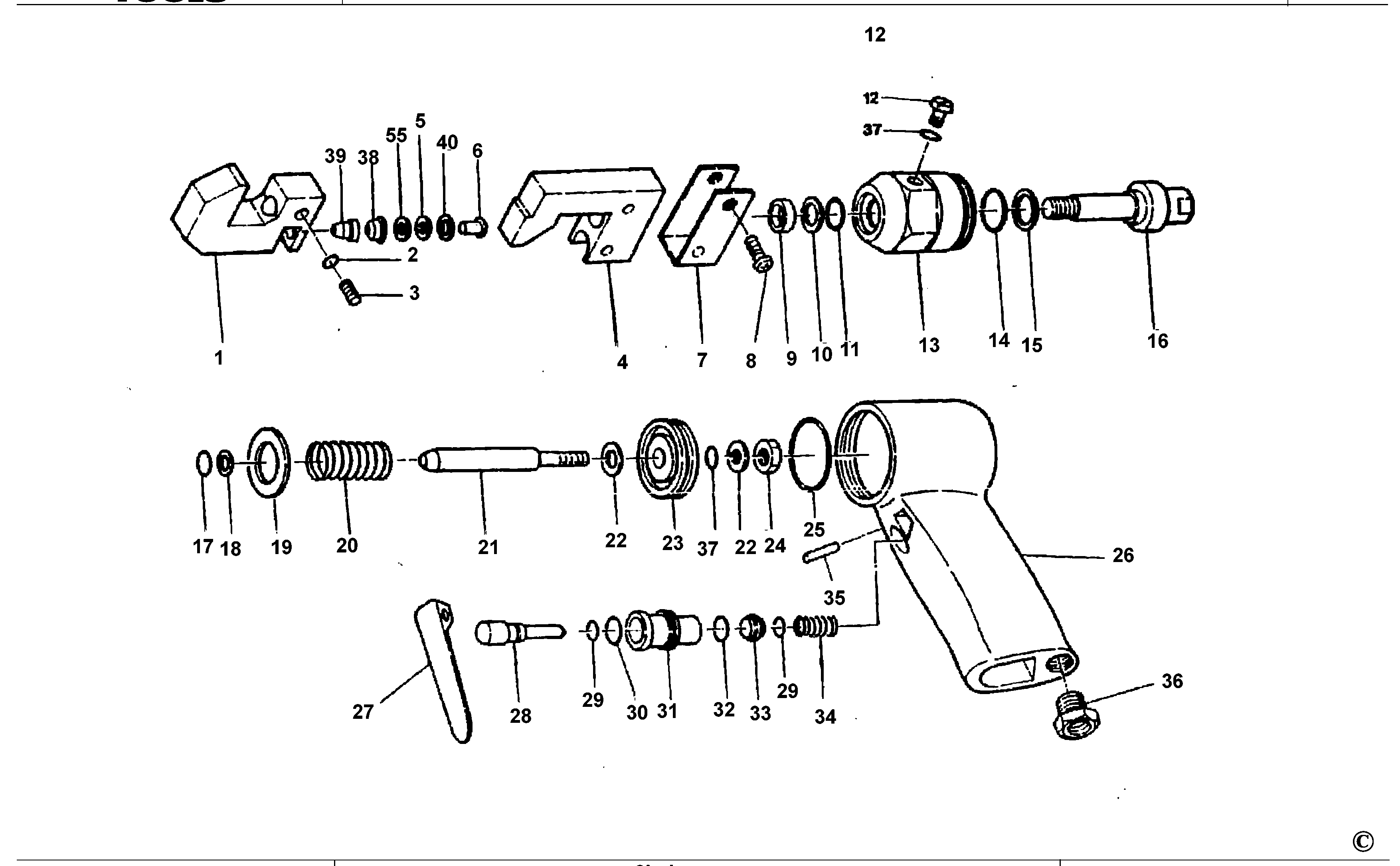

APF600A PUNCH AND FLANGE TOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | APF600-01A | 1 | CLAMP | GB |  |
||
| 2 | APF600-02 | 1 | SEAL | GB | |
||
| 3 | APF600-03 | 1 | SCREW | GB | |
||
| 4 | APF600-04A | 1 | CLAMP | GB | |
||
| 5 | APF600-05A | 1 | WASHER | GB | |
||
| 6 | APF600-06A | 1 | PIN | GB | |
||
| 7 | APF600-07A | 1 | GUARD | GB | |
||
| 8 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 9 | APF600-09 | 1 | SEAL | GB | |
||
| 10 | APF600-10 | 1 | RING | GB | |
||
| 11 | APF600-11 | 1 | O RING | GB | |
||
| 12 | AW136-49 | 1 | PLUG | GB | |
||
| 13 | APF600-13 | 1 | HOUSING | GB | |
||
| 14 | APF600-14 | 1 | O RING | GB | |
||
| 15 | APF600-15 | 1 | RING | GB | |
||
| 16 | APF600-16 | 1 | PISTON | GB | |
||
| 17 | AR133-06 | 1 | O RING | GB |  |
||
| 18 | APF600-18 | 1 | RING | GB | |
||
| 19 | APF600-19 | 1 | SPACER | GB | |
||
| 20 | APF600-20 | 1 | SPRING | GB | |
||
| 21 | APF600-21 | 1 | ROD | GB | |
||
| 22 | APF600-22 | 1 | WASHER | GB | |
||
| 23 | APF600-23 | 1 | PISTON | GB | |
||
| 24 | APF600-24 | 1 | NUT | GB | |
||
| 25 | APF600-25 | 1 | O RING | GB | |
||
| 26 | APF600-26 | 1 | BODY | GB | |
||
| 27 | AR134-05 | 1 | LEVER | GB | |||
| 28 | APF600-28 | 1 | PIN | GB | |
||
| 29 | AW145-007 | 1 | O RING | GB | |||
| 30 | AD527-30 | 1 | O RING | GB | |
||
| 31 | APF600-31 | 1 | BUSHING | GB | |
||
| 32 | AR760-03 | 1 | O RING | GB | |
||
| 33 | AR133-08 | 1 | VALVE | GB | |
||
| 34 | AR133-07 | 1 | SPRING | GB | |
||
| 35 | ADG200-10 | 1 | PIN | GB | |||
| 36 | AR134-01 | 1 | BUSHING | GB | |||
| 37 | AR134-08 | 1 | O RING | GB | |||
| 38 | APF600-38A | 1 | BUSHING | GB | |
||
| 39 | APF600-39A | 1 | BUSHING | GB | |
||
| 40 | APF600-40A | 1 | WASHER | GB | |
||
| 55 | APF600-55 | 1 | WASHER | GB | |
