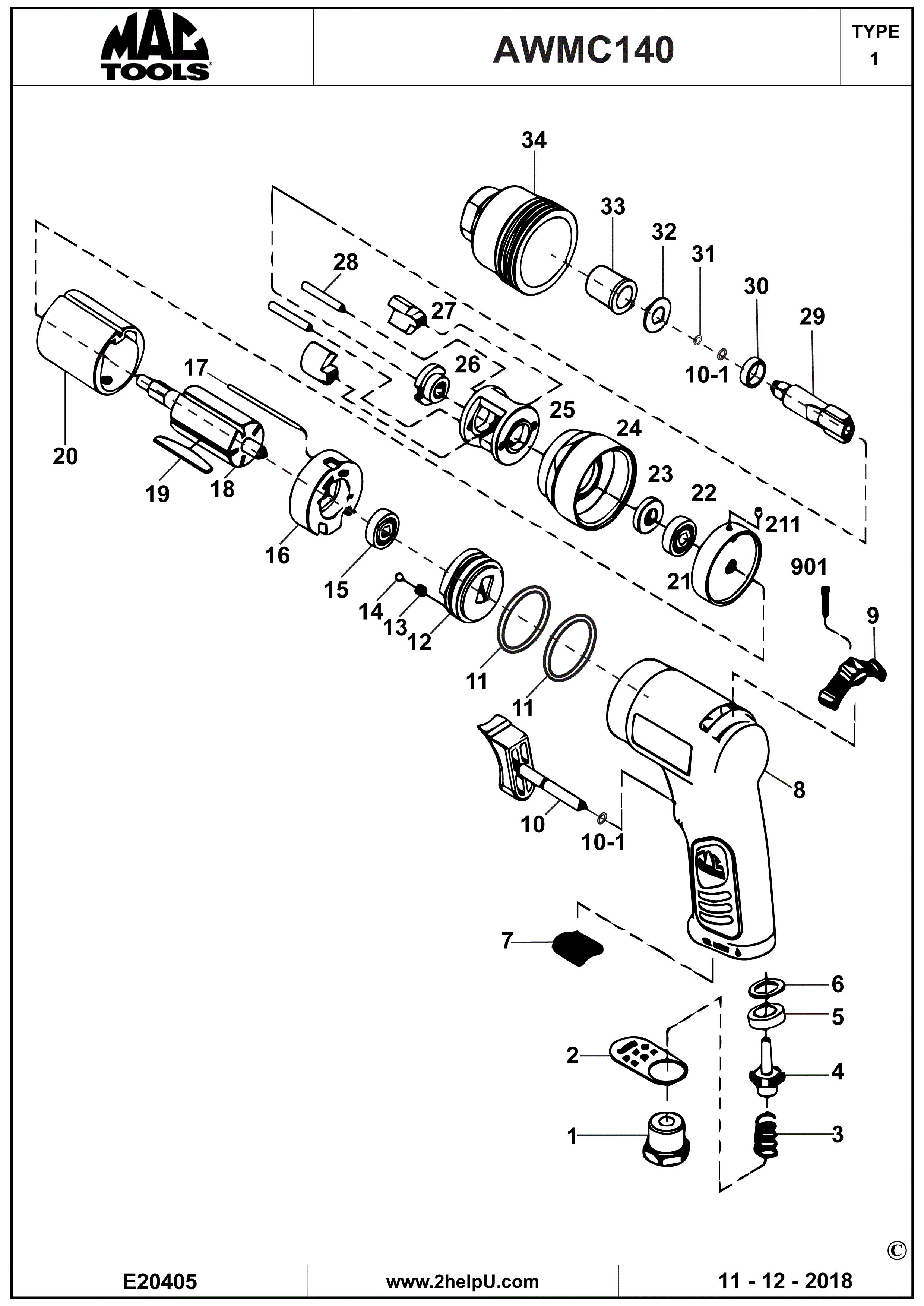

AWMC140 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AWMC140-01 | 1 | BUSHING | XJ |  |
||
| 2 | AWMC140-02 | 1 | DEFLECTOR | XJ | |
||
| 3 | AWMC140-03 | 1 | SPRING | XJ | |
||
| 4 | AWMC140-04 | 1 | VALVE | XJ | |
||
| 5 | AWMC140-05 | 1 | Seat | XJ | |
||
| 6 | AWMC140-06 | 1 | SPACER | XJ | |
||
| 7 | AWMC140-07 | 1 | SILENCER | XJ | |
||
| 8 | AWMC140-08 | 1 | HOUSING | XJ | |
||
| 9 | AWMC140-09 | 1 | LEVER | XJ | |
||
| 10 | AWMC140-12 | 2 | O RING | XJ | |
||
| 11 | AWMC140-13 | 1 | O RING | XJ | |
||
| 12 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 13 | AWMC140-15 | 1 | SPRING | XJ | |
||
| 14 | AWMC140-16 | 1 | BALL | XJ | |
||
| 15 | AWMC140-17 | 1 | BEARING,BALL | XJ | |
||
| 16 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 17 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 18 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 19 | AWMC140-21 | 1 | ROTOR BLADE | XJ | |
||
| 20 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 21 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 22 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 23 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 24 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 25 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 26 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 27 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 28 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 29 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 30 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 31 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 32 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 33 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 34 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 211 | AWMC140-24 | 1 | PIN | XJ | |
||
| 901 | AWMC140-10 | 1 | SCREW | XJ | |
