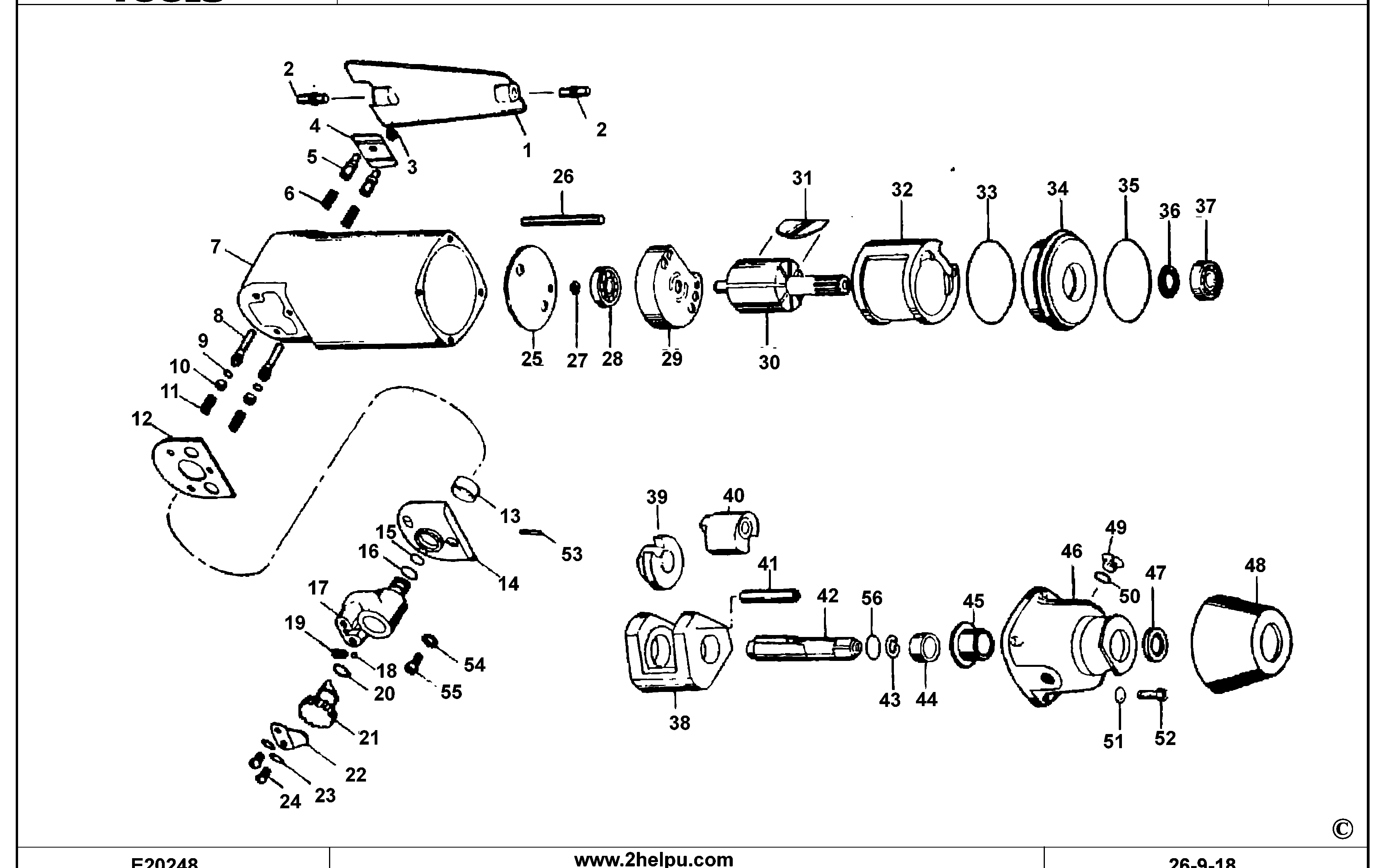

AW136 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AW136-01 | 1 | LEVER | XJ |  |
||
| 2 | AW136-02 | 1 | PIN | XJ | |
||
| 3 | AW136-03 | 1 | SCREW | XJ | |
||
| 4 | AW136-04 | 1 | STOP PLATE | XJ | |
||
| 5 | AW136-05 | 1 | PLUNGER | XJ | |
||
| 6 | AW136-06 | 1 | SPRING | XJ | |
||
| 7 | AW136-07 | 1 | HOUSING MOTOR | XJ | |
||
| 8 | AW136-08 | 1 | VALVE | XJ | |
||
| 9 | AW145-007 | 1 | O RING | XJ | |||
| 10 | AW136-10 | 1 | O RING | XJ | |
||
| 11 | AW136-11 | 1 | SPRING | XJ | |
||
| 12 | AW136-12 | 1 | GASKET | XJ | |
||
| 13 | AW136-13 | 1 | COLLAR | XJ | |
||
| 14 | AW136-14 | 1 | COVER | XJ | |
||
| 15 | AW145-127 | 1 | O RING | XJ | |
||
| 16 | AW136-16 | 1 | O RING | XJ | |
||
| 17 | AW136-17 | 1 | BODY | XJ | |
||
| 18 | AW136-18 | 1 | BALL | XJ | |
||
| 19 | AW136-19 | 1 | SPRING | XJ | |
||
| 20 | AR133-09 | 1 | O RING | XJ |  |
||
| 21 | AW136-21 | 1 | REGULATOR | XJ | |
||
| 22 | AW136-22 | 1 | PLATE | XJ | |
||
| 23 | AW136-23 | 1 | WASHER | XJ | |
||
| 24 | AW145-136 | 1 | SCREW | XJ | |
||
| 25 | AW136-25 | 1 | GASKET | XJ | |
||
| 26 | AW136-26 | 1 | PIN | XJ | |
||
| 27 | AW135-51 | 1 | RING | XJ | |
||
| 28 | AR133-11 | 1 | BEARING | XJ | |
||
| 29 | AW135-26 | 1 | PLATE | XJ | |
||
| 30 | AW135-24 | 1 | ROTOR | XJ | |
||
| 31 | AW135-23 | 1 | BLADE | XJ | |
||
| 32 | AW135-25 | 1 | CYLINDER | XJ | |
||
| 33 | AW136-33 | 1 | O RING | XJ | |
||
| 34 | AW136-34 | 1 | END PANEL. FRONT | XJ | |
||
| 35 | AW136-35 | 1 | O RING | XJ | |
||
| 36 | AW135-19 | 1 | SEAL | XJ | |
||
| 37 | AW145-054 | 1 | BEARING | XJ | |
||
| 38 | AW136-38 | 1 | CAGE | XJ | |
||
| 39 | AW135-16 | 1 | CAM | XJ | |
||
| 40 | AW135-17 | 1 | JOINT | XJ | |
||
| 41 | AW135-14 | 1 | PIN | XJ | |
||
| 42 | AW135-12 | 1 | ANVIL | XJ | |
||
| 43 | AW135-10 | 1 | RING | XJ | |
||
| 44 | AW135-09 | 1 | COLLAR | XJ | |
||
| 45 | AW135-08 | 1 | BUSHING | XJ | |
||
| 46 | AW136-46 | 1 | CASE | XJ | |
||
| 47 | AW135-02 | 1 | SEAL | XJ | |
||
| 48 | AW136-48 | 1 | GUARD | XJ | |
||
| 49 | AW136-49 | 1 | PLUG | XJ | |
||
| 50 | AR134-08 | 1 | O RING | XJ | |||
| 51 | AW145-046 | 1 | WASHER | XJ | |
||
| 52 | AW136-52 | 1 | SCREW | XJ | |
||
| 53 | AW136-53 | 1 | PIN | XJ | |
||
| 54 | AW145-048 | 1 | WASHER LOCK | XJ | |
||
| 55 | AW136-55 | 1 | SCREW | XJ | |
||
| 56 | AW135-11 | 1 | O RING | XJ | |
