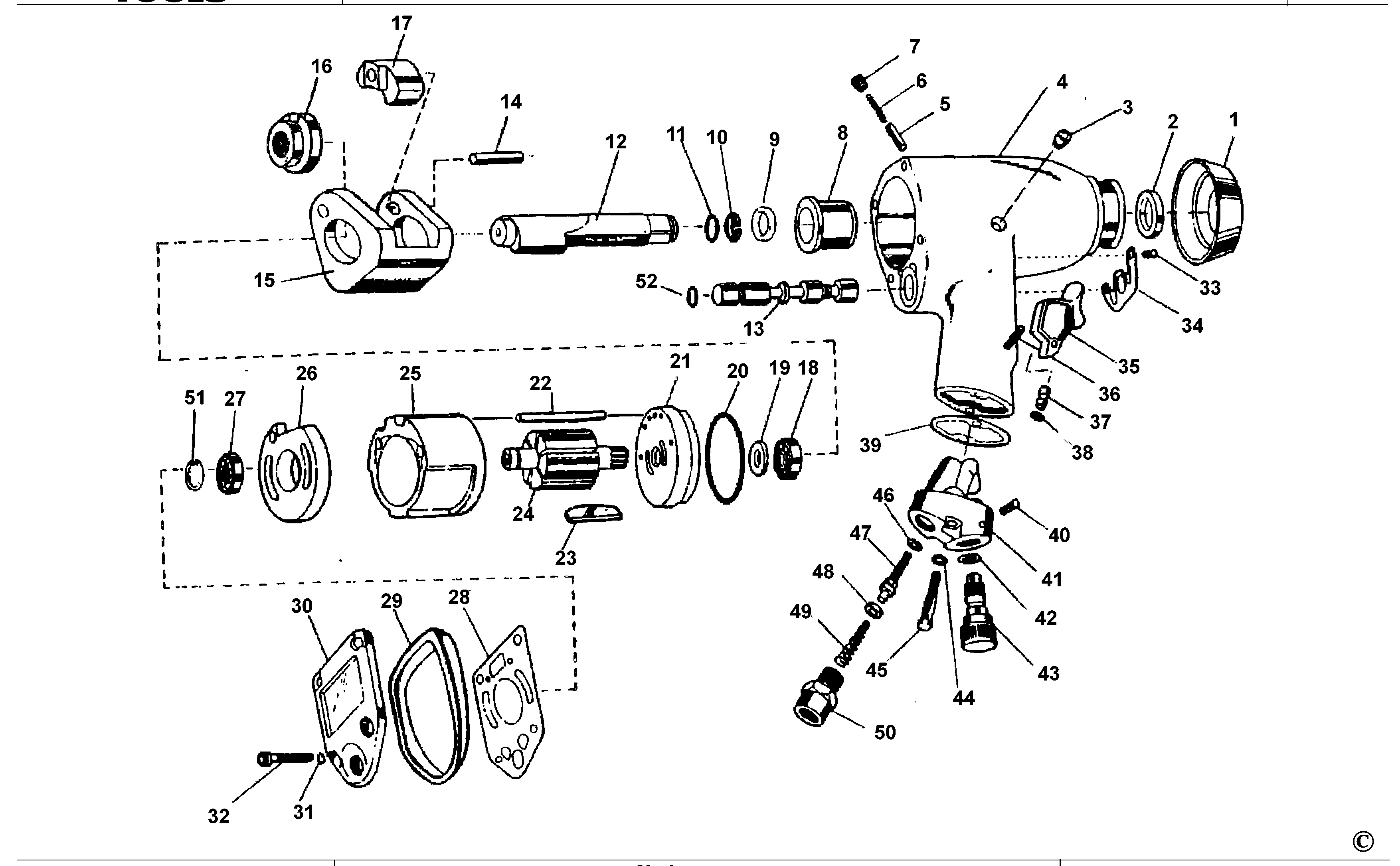

AW135 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AW135-01 | 1 | GUARD | GB |  |
||
| 2 | AW135-02 | 1 | SEAL | GB | |
||
| 3 | AW135-03 | 1 | PLUG | GB | |
||
| 4 | AW135-04 | 1 | HOUSING MOTOR | GB | |
||
| 5 | AW135-05 | 1 | PIN | GB | |
||
| 6 | AW135-06 | 1 | SPRING | GB | |
||
| 7 | AW135-07 | 1 | SCREW | GB | |
||
| 8 | AW135-08 | 1 | BUSHING | GB | |
||
| 9 | AW135-09 | 1 | COLLAR | GB | |
||
| 10 | AW135-10 | 1 | RING | GB | |
||
| 11 | AW135-11 | 1 | O RING | GB | |
||
| 12 | AW135-12 | 1 | ANVIL | GB | |
||
| 13 | AW135-13 | 1 | VALVE | GB | |
||
| 14 | AW135-14 | 1 | PIN | GB | |
||
| 15 | AW135-15 | 1 | CAGE | GB | |
||
| 16 | AW135-16 | 1 | CAM | GB | |
||
| 17 | AW135-17 | 1 | JOINT | GB | |
||
| 18 | AW145-054 | 1 | BEARING | GB | |
||
| 19 | AW135-19 | 1 | SEAL | GB | |
||
| 20 | AW135-20 | 1 | O RING | GB | |
||
| 21 | AW135-21 | 1 | PLATE | GB | |
||
| 22 | AW135-22 | 1 | PIN | GB | |
||
| 23 | AW135-23 | 1 | BLADE | GB | |
||
| 24 | AW135-24 | 1 | ROTOR | GB | |
||
| 25 | AW135-25 | 1 | CYLINDER | GB | |
||
| 26 | AW135-26 | 1 | PLATE | GB | |
||
| 27 | AR133-11 | 1 | BEARING | GB |  |
||
| 28 | AW135-28 | 1 | GASKET | GB | |
||
| 29 | AW135-29 | 1 | BAND | GB | |
||
| 30 | AW135-30 | 1 | COVER | GB | |
||
| 31 | AW145-046 | 1 | WASHER | GB | |
||
| 32 | AW135-32 | 1 | SCREW | GB | |
||
| 33 | AW145-136 | 1 | SCREW | GB | |
||
| 34 | AW135-34 | 1 | DIFFUSER | GB | |
||
| 35 | AW145-014 | 1 | TRIGGER | GB | |
||
| 36 | AW145-016 | 1 | LEVER | GB | |
||
| 37 | AW135-37 | 1 | PIN | GB | |
||
| 38 | AW145-008 | 1 | O RING | GB | |
||
| 39 | AW145-272 | 1 | GASKET | GB | |
||
| 40 | AW145-124 | 1 | PIN | GB | |
||
| 41 | AW145-270 | 1 | BLOCK | GB | |
||
| 42 | AW145-127 | 1 | O RING | GB | |
||
| 43 | AW145-125 | 1 | REGULATOR | GB | |
||
| 44 | AW145-046 | 1 | WASHER | GB | |
||
| 45 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 46 | AW145-007 | 1 | O RING | GB | |||
| 47 | AW145-005 | 1 | VALVE | GB | |
||
| 48 | AW145-004 | 1 | RETAINER | GB | |
||
| 49 | AW145-003 | 1 | SPRING | GB | |
||
| 50 | AW145-001 | 1 | BUSHING | GB | |
||
| 51 | AW135-51 | 1 | RING | GB | |
||
| 52 | 000000-00 | 1 | NO LONGER AVAILABLE | GB |
