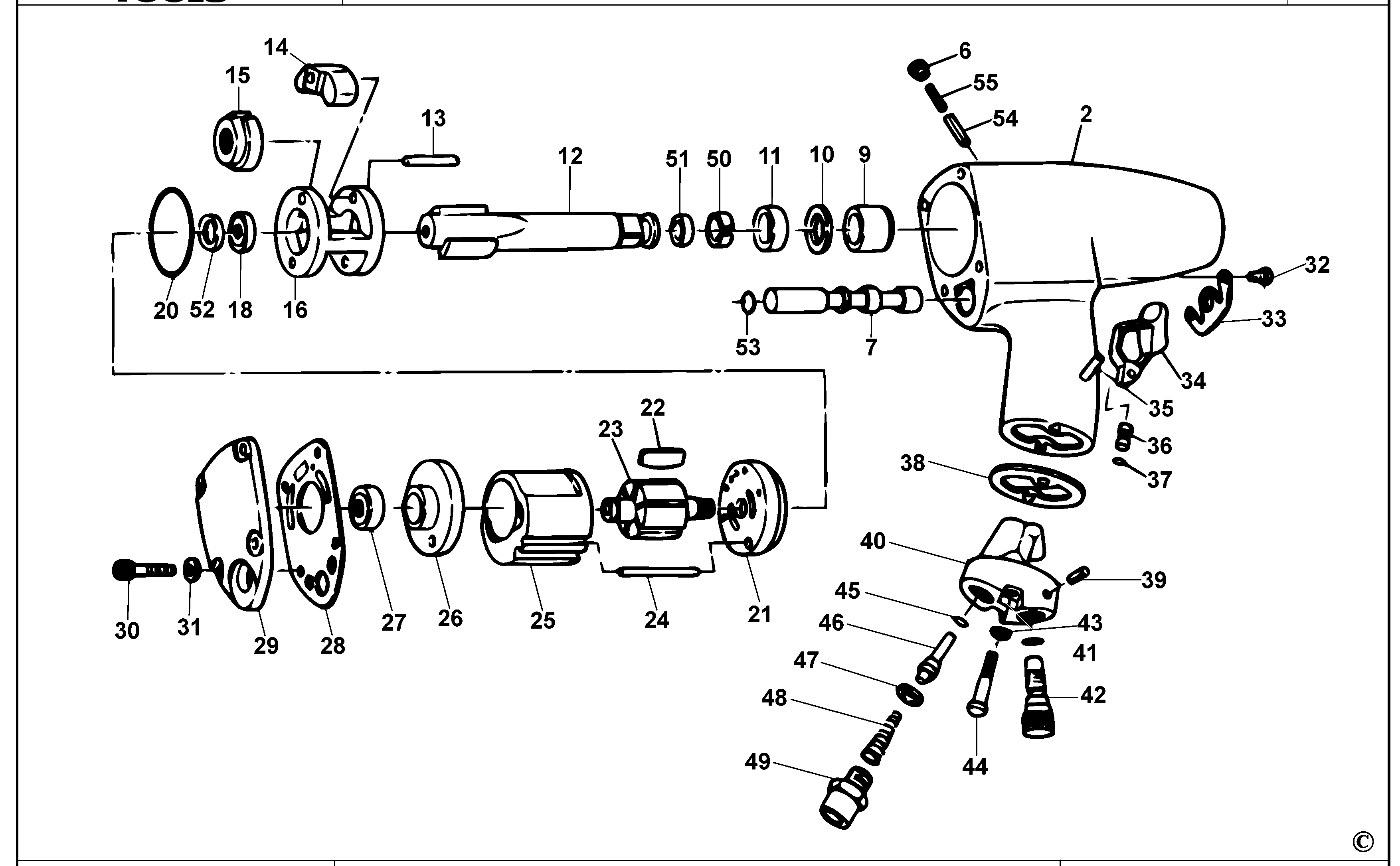

AW850 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 6 | AW135-07 | 4 | SCREW | XJ |  |
||
| 7 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 9 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 10 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 11 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 12 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 13 | AW825H-17 | 1 | PIN | XJ | |||
| 14 | AW825H-18 | 1 | HAMMER | XJ | |||
| 15 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 16 | AW825H-20 | 1 | CAGE | XJ | |||
| 18 | AR133-18 | 1 | BEARING PLATE | XJ |  |
||
| 20 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 21 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 22 | AW825H-25 | 5 | BLADE | XJ | |
||
| 23 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 24 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 25 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 26 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 27 | AR133-11 | 1 | BEARING | XJ | |
||
| 28 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 29 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 30 | AW136-55 | 4 | SCREW | XJ | |
||
| 31 | AW145-048 | 4 | WASHER LOCK | XJ | |
||
| 32 | AW145-136 | 2 | SCREW | XJ | |
||
| 33 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 34 | AW145-014 | 1 | TRIGGER | XJ | |
||
| 35 | AW145-016 | 1 | LEVER | XJ | |
||
| 36 | AW135-37 | 1 | PIN | XJ | |
||
| 37 | AW145-008 | 1 | O RING | XJ | |
||
| 38 | AW145-272 | 1 | GASKET | XJ | |
||
| 39 | AW145-124 | 1 | PIN | XJ | |
||
| 40 | AW145-270 | 1 | BLOCK | XJ | |
||
| 41 | AW145-127 | 1 | O RING | XJ | |
||
| 42 | AW145-125 | 1 | REGULATOR | XJ | |
||
| 43 | AW145-046 | 1 | WASHER | XJ | |
||
| 44 | AW145-271 | 2 | SCREW | XJ | |
||
| 45 | AW145-007 | 1 | O RING | XJ | |||
| 46 | AW145-005 | 1 | VALVE | XJ | |
||
| 47 | AW145-004 | 1 | RETAINER | XJ | |
||
| 48 | AW145-003 | 1 | SPRING | XJ | |
||
| 49 | AW145-001 | 1 | BUSHING | XJ | |
||
| 50 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 51 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 52 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 53 | AR760-03 | 1 | O RING | XJ | |
||
| 54 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 55 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ |
