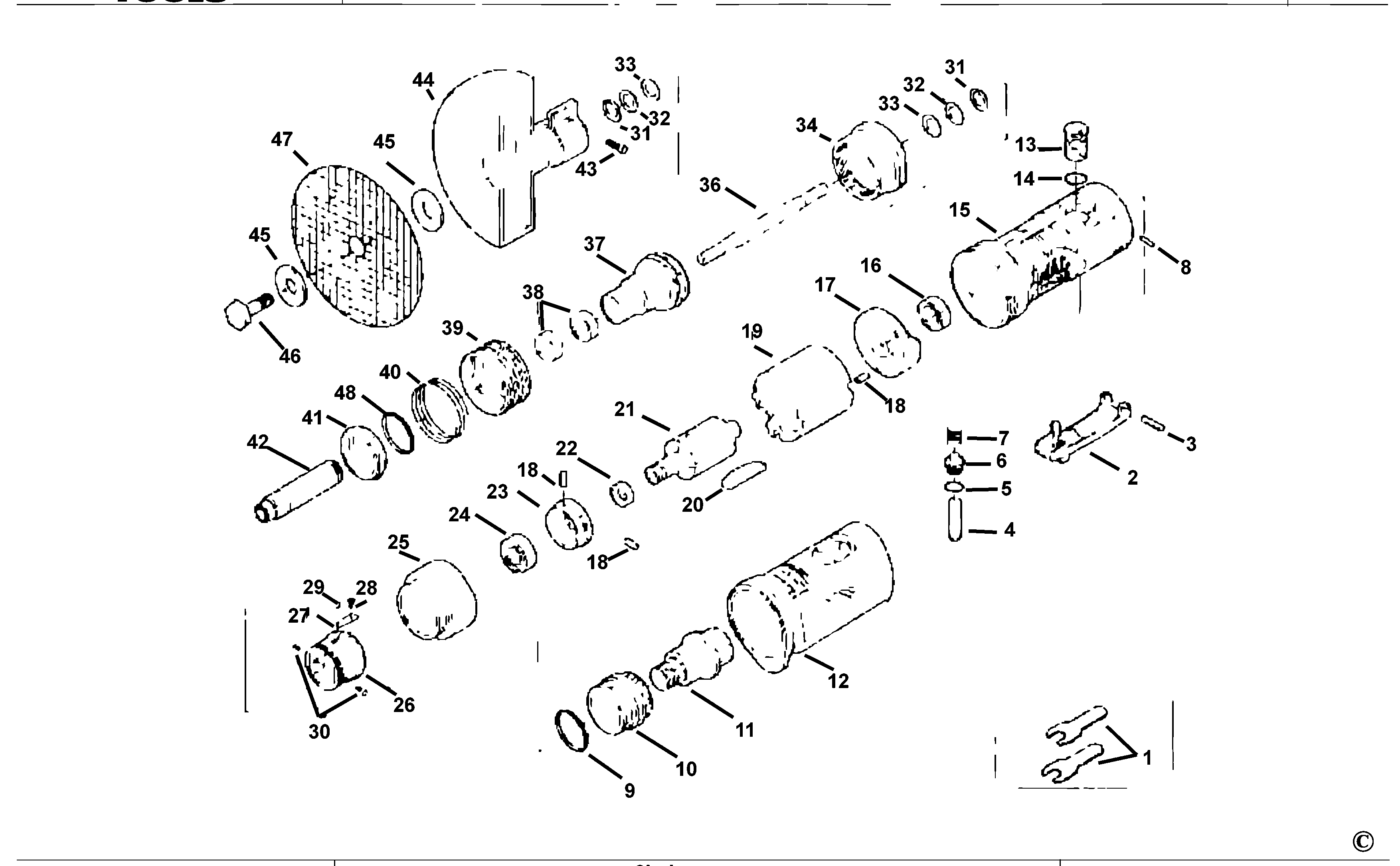

AT35 CUT OUT TOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AT35-01 | 1 | WRENCH SET | GB |  |
||
| 2 | AG50-29 | 1 | LEVER | GB |  |
||
| 3 | AW156TR-46 | 1 | PIN | GB | |||
| 4 | AR133-10 | 1 | PLUNGER | GB | |
||
| 5 | AR133-09 | 1 | O RING | GB | |
||
| 6 | AR133-08 | 1 | VALVE | GB | |
||
| 7 | AR133-07 | 1 | SPRING | GB | |
||
| 8 | AD510AH-22 | 1 | PIN | GB | |||
| 9 | AG70-09 | 1 | O RING | GB | |
||
| 10 | AG70-10 | 1 | SLEEVE | GB | |||
| 11 | AG60-27 | 1 | BUSHING | GB | |
||
| 12 | AG70-12 | 1 | COVER | GB | |
||
| 13 | AG60-17 | 1 | REGULATOR | GB | |
||
| 14 | AR134-10 | 1 | O RING | GB | |||
| 15 | AG70-15 | 1 | HOUSING MOTOR | GB | |
||
| 16 | ADG210-11 | 1 | BEARING,BALL | GB | |
||
| 17 | ADG210-11 | 1 | BEARING,BALL | GB | |
||
| 18 | AR760-14 | 1 | PIN | GB | |
||
| 19 | AG70-19 | 1 | CYLINDER | GB | |
||
| 20 | AG70-20 | 1 | BLADE | GB | |
||
| 21 | AT35-21 | 1 | ROTOR | GB | |
||
| 22 | AT35-22 | 1 | BEARING | GB | |
||
| 23 | AT35-23 | 1 | PLATE | GB | |
||
| 24 | AW435-20 | 1 | BEARING,BALL | GB | |
||
| 25 | AT35-25 | 1 | LOCKING RING | GB | |
||
| 26 | AT35-26 | 1 | JOINT | GB | |
||
| 27 | AT35-27 | 1 | SPRING | GB | |
||
| 28 | AT35-28 | 1 | SCREW | GB | |
||
| 29 | ASD810-11 | 1 | BALL STEEL | GB | |
||
| 30 | AT35-30 | 1 | SCREW | GB | |
||
| 31 | AT35-31 | 1 | RING | GB | |
||
| 32 | AT35-33 | 1 | WASHER | GB | |
||
| 33 | AT35-33 | 1 | WASHER | GB | |
||
| 34 | AT35-34 | 1 | LOCKING RING | GB | |
||
| 36 | AT35-36 | 1 | SHAFT | GB | |
||
| 37 | AT35-37 | 1 | SHAFT | GB | |
||
| 38 | AT35-38 | 1 | BEARING | GB | |
||
| 39 | AT35-39 | 1 | SLEEVE | GB | |
||
| 40 | AT35-40 | 1 | SPRING | GB | |
||
| 41 | AT35-41 | 1 | RING | GB | |
||
| 42 | AT35-42 | 1 | DRIVE SHAFT | GB | |
||
| 43 | AW136-52 | 1 | SCREW | GB | |
||
| 44 | AT35-44 | 1 | COVER | GB | |
||
| 45 | APF600-22 | 1 | WASHER | GB | |
||
| 46 | AT35-46 | 1 | BOLT | GB | |
||
| 48 | AW135-20 | 1 | O RING | GB | |
