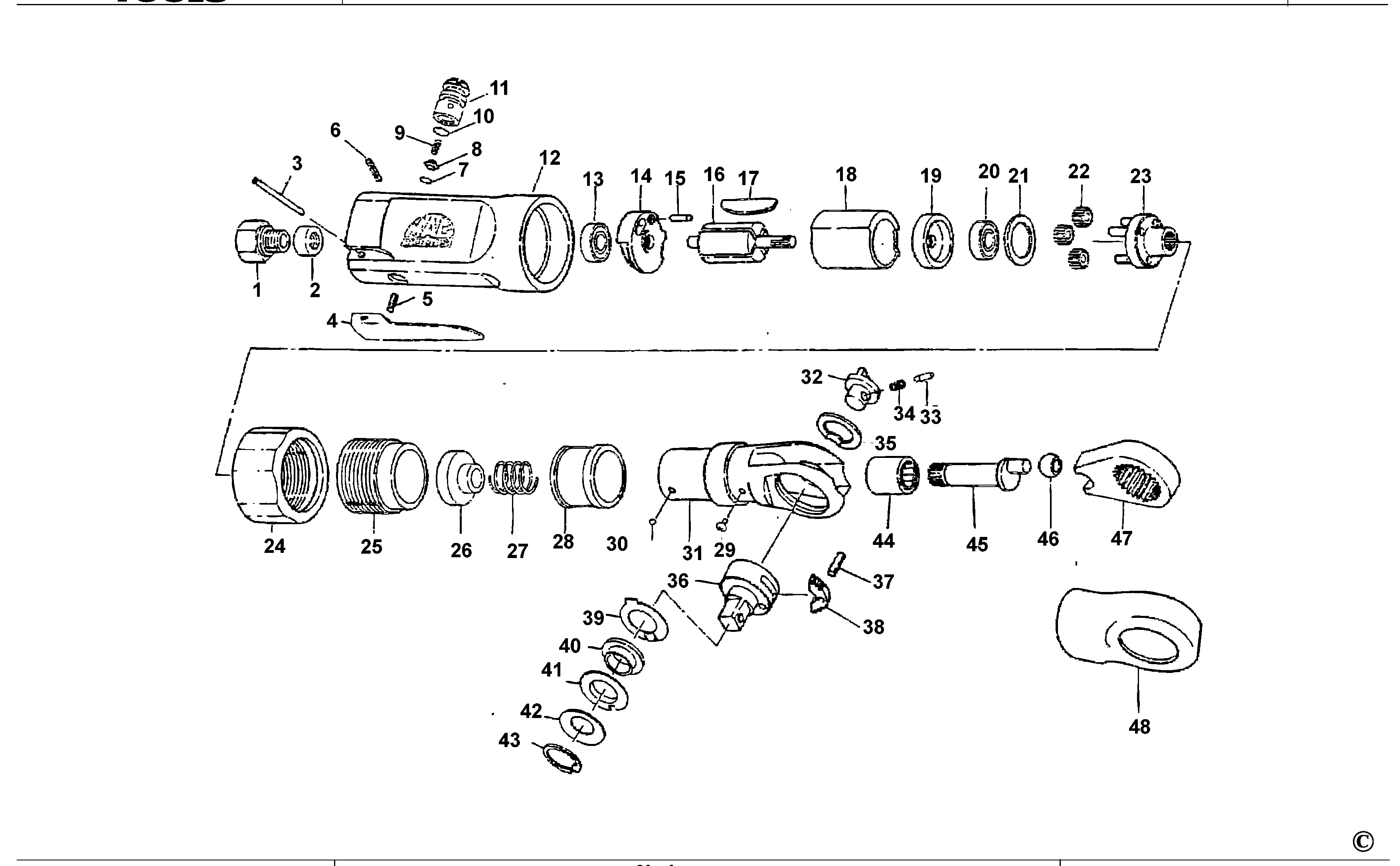

AR250RH RATCHET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AR2765-42 | 1 | INLET | GB |  |
||
| 1 | 90605692 | 1 | CLIP | GB |  |
||
| 2 | AR250RH-02 | 1 | Muffler | GB | |||
| 2 | 6010168-23 | 1 | SCREW | GB | |
||
| 3 | AR133-02 | 1 | PIN | GB | |
||
| 4 | AR250RH-04 | 1 | LEVER | GB | |
||
| 4 | 1004696-37 | 1 | SWITCH | 230V | GB | |
|
| 5 | AR760-07 | 1 | PLUNGER | GB | |
||
| 5 | 90599421 | 1 | INNER FLANGE | GB | |||
| 6 | AR760-09 | 1 | SPRING | GB | |
||
| 7 | AR760-06 | 1 | O RING | GB | |
||
| 7 | 589042-00 | 1 | SPRING | GB | |
||
| 8 | AR133-08 | 1 | VALVE | GB | |
||
| 8 | N085957 | 1 | CORD PROTECTOR | GB | |
||
| 9 | AR133-07 | 1 | SPRING | GB | |
||
| 9 | 584304-08 | 1 | CHOKE LEAD RED | GB | |
||
| 10 | AR760-03 | 1 | O RING | GB | |
||
| 10 | 90526099 | 1 | GEAR | GB | |
||
| 11 | AR760-02 | 1 | REGULATOR | GB | |
||
| 12 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 12 | 5170000-14 | 4 | RING | GB | |||
| 13 | AR760-12 | 1 | BEARING | GB | |
||
| 13 | 6010015-35 | 1 | CORDSET | GB | |||
| 14 | AR2760C-11 | 1 | PLATE | GB | |
||
| 14 | 496429-00 | 2 | FAN | GB | |||
| 15 | AR2760C-13 | 1 | PIN | GB | |
||
| 15 | 5170020-55 | 1 | ROLLER | GB | |||
| 16 | AR760-16 | 1 | ROTOR | GB | |
||
| 16 | 5170031-25 | 2 | PROTECTOR | GB | |||
| 17 | AR760-15 | 1 | ROTOR BLADE | GB | |
||
| 17 | 062487-00 | 2 | WASHER | GB | |||
| 18 | AR760-17 | 1 | CYLINDER | GB | |
||
| 18 | 582319-34 | 1 | CORDSET | GB | |
||
| 19 | AR760-18 | 1 | PLATE | GB | |
||
| 19 | N541103 | 1 | HOUSING | GB | |
||
| 20 | AR133-18 | 1 | BEARING PLATE | GB | |
||
| 20 | 6010356-55 | 1 | SPEED REGULATOR | GB | |||
| 21 | AR760-20 | 1 | WASHER LOCK | GB | |
||
| 21 | 90568239 | 1 | FIELD 240V | GB | |
||
| 22 | AR760-21 | 1 | GEAR | GB | |
||
| 22 | 1004687-12 | 1 | CONNECTING WIRE | GB | |||
| 23 | AR760-23 | 1 | CAGE | GB | |
||
| 23 | 1004124-00 | 1 | BAFFLE | GB | |||
| 24 | AR2865-29 | 1 | NUT | GB | |
||
| 24 | 587587-00 | 1 | JAW | GB | |
||
| 25 | AR2765-22 | 1 | PLATE | GB | |
||
| 25 | N722148 | 1 | GUARD SA | GB | |
||
| 26 | AR250RH-26 | 1 | HOUSING | GB | |
||
| 26 | N657943 | 1 | SHOE | GB | |
||
| 27 | AR250RH-27 | 1 | SPRING | GB | |||
| 27 | N411027 | 9 | LEAD ASSY. | WHITE (125MM) | GB | ||
| 28 | AR250RH-28 | 1 | RING | GB | |
||
| 28 | 90610232 | 1 | ARMATURE SA | & Bearing | GB | |
|
| 29 | AR250RH-29 | 1 | SCREW | GB | |
||
| 29 | 90636177 | 1 | GUARD | GB | |
||
| 30 | AW148TR-27 | 1 | BALL STEEL | GB | |
||
| 30 | N597162 | 1 | GEAR | GB | |
||
| 31 | AR250RH-31 | 1 | HOUSING | GB | |
||
| 31 | N572616 | 1 | GEAR | LOWER | GB | |
|
| 32 | AR760-32 | 1 | BUTTON | GB | |
||
| 32 | 90636551 | 1 | NUT | GB | |
||
| 33 | AR760-34 | 1 | PIN | GB | |
||
| 34 | AR760-33 | 1 | SPRING | GB | |
||
| 35 | AR2865-44 | 1 | WASHER | GB | |
||
| 36 | AR760-43 | 1 | ANVIL | GB | |
||
| 37 | AR760-36 | 1 | PIN | GB | |
||
| 38 | AR760-37 | 1 | PAWL | GB | |
||
| 39 | AR2865-45 | 1 | WASHER | GB | |
||
| 40 | AR2865-46 | 1 | SLEEVE | GB | |
||
| 40 | N717430 | 1 | WARNING LABEL | GB | |
||
| 41 | AR2865-47 | 1 | WASHER | GB | |
||
| 42 | AR2865-48 | 1 | WASHER | GB | |
||
| 43 | AR760-42 | 1 | RING | GB | |
||
| 44 | AR760-26 | 1 | BEARING NEEDLE | GB | |
||
| 45 | AR760-28 | 1 | CRANKSHAFT | GB | |
||
| 46 | AR760-29 | 1 | BUSHING | GB | |
||
| 47 | AR760-30 | 1 | YOKE | GB | |
||
| 48 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 861 | N586586 | 1 | KIT BOX | GB | |
