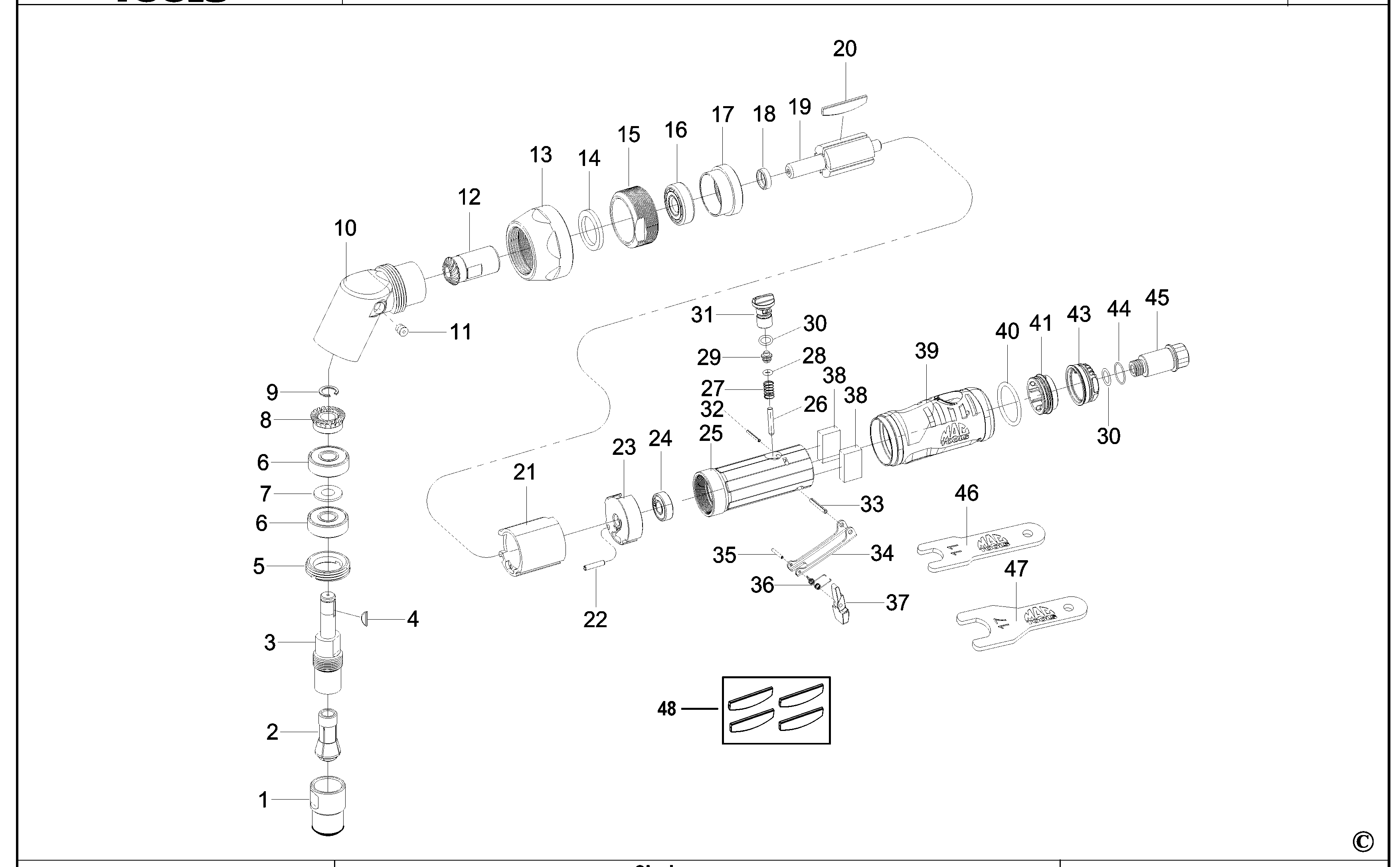

AG325AH120 DIE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N444813 | 1 | COLLET NUT | XJ |  |
||
| 1 | 247815-00 | 1 | CUTTER BLOCK SA | XJ |  |
||
| 2 | N444782 | 1 | COLLET 6MM | XJ | |
||
| 2 | 806722-03 | 1 | CLAMSHELL | XJ | |
||
| 3 | N444836 | 1 | SPINDLE | XJ | |
||
| 4 | N444828 | 1 | WOODRUFF KEY | XJ | |
||
| 5 | N444829 | 1 | NUT | XJ | |
||
| 5 | 328783-00 | 1 | RATING PLATE | XJ | |
||
| 6 | N444843 | 1 | BEARING,BALL | XJ | |
||
| 6 | 6010036-26 | 1 | CAPACITOR | METTALISED CAPACITOR | XJ | ||
| 7 | N444837 | 1 | WASHER | XJ | |
||
| 7 | N028878 | 2 | KIT SA | XJ | |
||
| 8 | N444838 | 1 | GEAR | XJ | |
||
| 8 | 90535569-02 | 1 | DOOR | BLUE | XJ | ||
| 9 | N444839 | 1 | RETAINER | XJ | |
||
| 9 | 6010058-08 | 1 | LID | BOWL LID | XJ | |
|
| 10 | N444840 | 1 | HEAD | XJ | |
||
| 10 | 1003297-00 | 1 | SWITCH | XJ | |||
| 11 | N444833 | 1 | CAP | XJ | |
||
| 11 | 323753-00 | 1 | WASHER | XJ | |
||
| 12 | N444838 | 1 | GEAR | XJ | |
||
| 12 | 6010036-32 | 1 | SCREW | XJ | |||
| 13 | N444835 | 1 | COUPLING | XJ | |
||
| 13 | N663174 | 2 | GEARBOX | XJ | |
||
| 14 | N444842 | 1 | WASHER | XJ | |
||
| 14 | 6010036-30 | 1 | SCREW | XJ | |||
| 15 | N445085 | 1 | LOCKING RING | XJ | |
||
| 16 | N444794 | 1 | BEARING,BALL | XJ | |
||
| 16 | 6010020-23 | 3 | HOUSING | HOUSING BODY | XJ | ||
| 17 | N444795 | 1 | END PANEL. FRONT | XJ | |
||
| 17 | 368251 | 2 | CLAMSHELL | XJ | |
||
| 18 | N444796 | 1 | SPACER | XJ | |
||
| 18 | 6010071-08 | 1 | MOTOR 230V | H1D | XJ | ||
| 19 | N444797 | 1 | ROTOR | XJ | |
||
| 19 | 808698-06 | 1 | BOWL | XJ | |
||
| 20 | N444798 | 1 | ROTOR BLADE | XJ | |
||
| 20 | 371074-01 | 1 | CHARGER | XJ | |
||
| 21 | N444799 | 1 | CYLINDER | XJ | |
||
| 21 | 6010071-16 | 1 | TOP | TOP CABINET | H1D | XJ | |
| 22 | N444800 | 1 | SPIROL PIN | XJ | |
||
| 22 | 372571-01 | 1 | CLAMP SA | XJ | |||
| 23 | N444801 | 1 | END PANEL. REAR | XJ | |
||
| 23 | 809049 | 1 | LABEL | XJ | |
||
| 24 | N444802 | 1 | BEARING,BALL | XJ | |
||
| 24 | 373244-04 | 1 | MOTOR SA | H1 | XJ | |
|
| 24 | 752879 | 1 | FOOT | H1D | XJ | |
|
| 25 | N444803 | 1 | HOUSING MOTOR | XJ | |
||
| 25 | 1006028-00 | 4 | SPRING TORSION | XJ | |
||
| 26 | N444783 | 1 | SHAFT | XJ | |
||
| 26 | 372520 | 1 | GUARD | XJ | |
||
| 27 | N444784 | 1 | VALVE SPRING | XJ | |
||
| 28 | N444785 | 1 | O RING | XJ | |
||
| 29 | N444786 | 1 | VALVE | XJ | |
||
| 29 | 805925-00 | 1 | SLIDER | XJ | |
||
| 30 | N444804 | 1 | O RING | XJ | |
||
| 30 | 372563 | 1 | SWITCH & LEAD SA | XJ | |
||
| 31 | N444805 | 1 | REGULATOR | XJ | |
||
| 31 | 372429-04 | 1 | RATING PLATE | XJ | |
||
| 32 | N444787 | 1 | SPIROL PIN | XJ | |
||
| 32 | 368245 | 1 | SPRING | H1D | XJ | |
|
| 32 | 373244-04 | 1 | MOTOR SA | H1C | XJ | |
|
| 33 | N444788 | 1 | SPIROL PIN | XJ | |
||
| 33 | 140164502 | 1 | LEAD 130MM YELLOW | XJ | |
||
| 34 | N444806 | 1 | TRIGGER | XJ | |
||
| 34 | 90531369 | 5 | CHUCK KEYLESS | XJ | |||
| 35 | N444807 | 1 | SPIROL PIN | XJ | |
||
| 36 | N444789 | 1 | SPRING | XJ | |
||
| 37 | N444790 | 1 | LEVER | XJ | |
||
| 37 | 6010036-33 | 2 | SPRING | SAFETY SPRING | XJ | ||
| 38 | N444808 | 1 | Muffler | XJ | |
||
| 39 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 39 | 752920 | 1 | NUT | XJ | |
||
| 40 | N444815 | 1 | COVER | XJ | |
||
| 41 | N444791 | 1 | O RING | XJ | |
||
| 42 | N444792 | 1 | Seat | XJ | |
||
| 43 | N444793 | 1 | TUBE.EXHAUST | XJ | |
||
| 44 | N444809 | 1 | O RING | XJ | |
||
| 44 | 806167-01 | 1 | MOTOR SA | XJ | |
||
| 45 | N463178 | 1 | BUSHING | XJ | |
||
| 45 | 795026 | 2 | LEAD | XJ | |
||
| 46 | N444811 | 1 | SPANNER | XJ | |
||
| 46 | 568349-00 | 1 | BEARING | XJ | |
||
| 47 | N444812 | 1 | SPANNER | XJ | |
||
| 48 | 1004755-69 | 1 | BLADE SET | XJ | |
||
| 51 | 808573-04 | 1 | ACTUATOR | XJ | |
||
| 52 | 944322-01 | 1 | PLATE | XJ | |
